UGC DOR5984328
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$126.60 CAD - $126.60 CAD
$126.60 CAD
$126.60 CAD - $126.60 CAD
$126.60 CAD

Vendu en lots de : 1

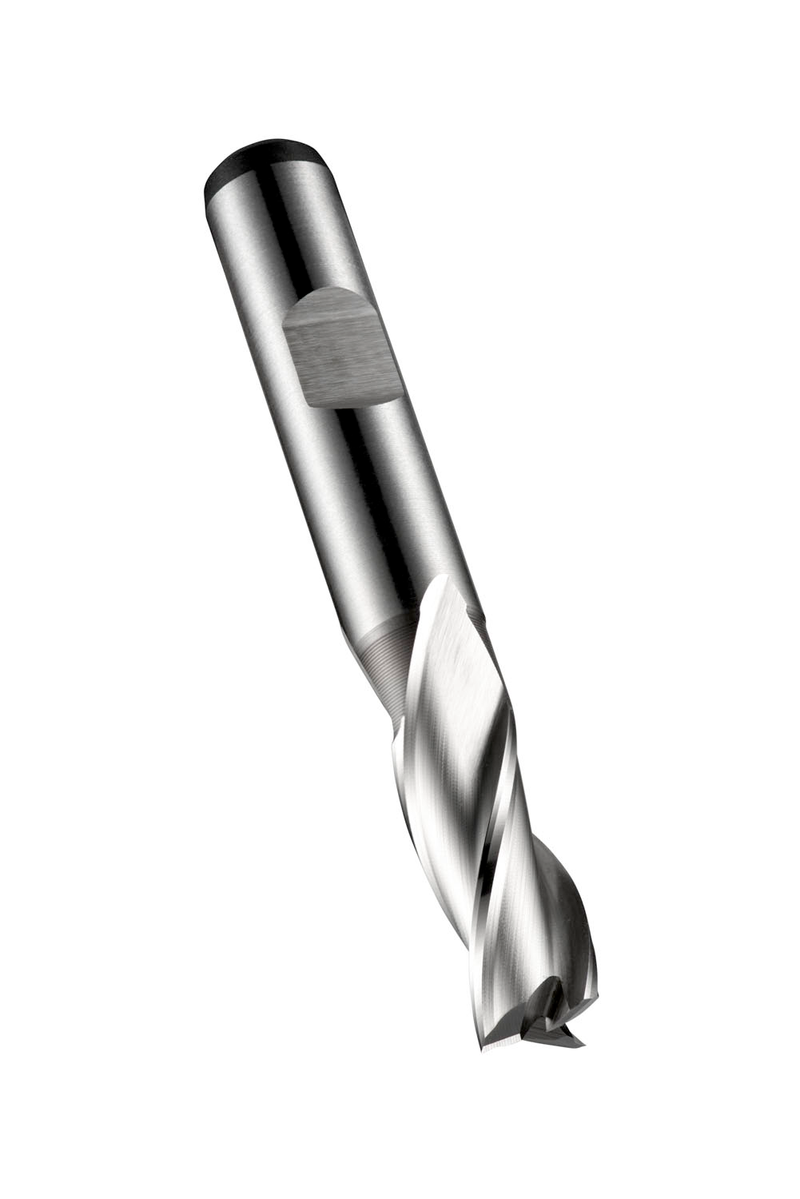

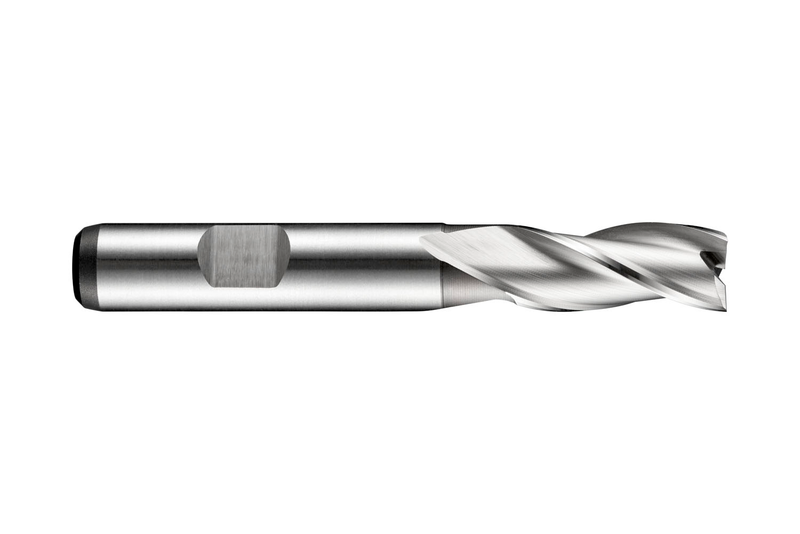

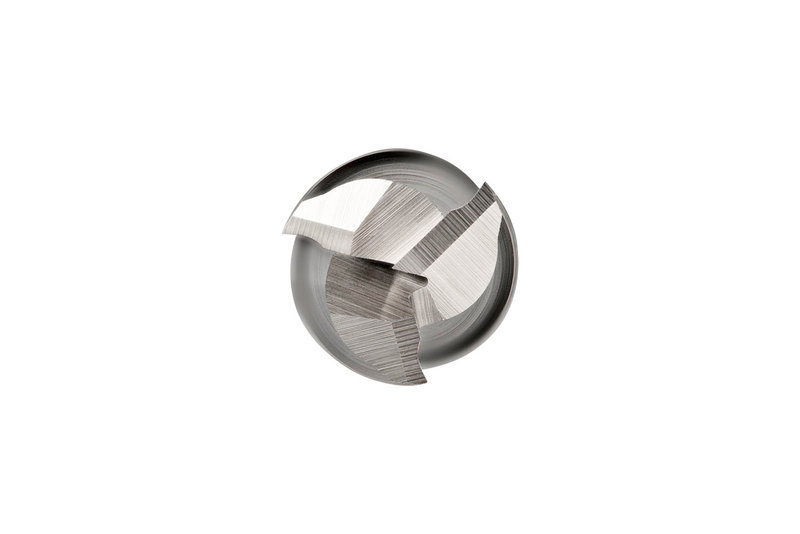

Fraise-scie courte à 3 dents, diamètre 18mm, longueur de coupe 32mm, longueur totale 92mm et portée 43,5mm avec dégagement de col, selon la norme DIN 844 K avec une queue Weldon de 16mm, en HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier de décolletage et l'acier au carbone, le cuivre ou les alliages de cuivre et les alliages à haute température à base de Fe, de Ni et de Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30518.0
GradeLumineux
Product Number5984328
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)43.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572306
EAN7320760572306
File Type Download
C30518.0 — Line Drawing PDF Download
