UGC DOR5984345
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.89 CAD - $47.89 CAD
$47.89 CAD
$47.89 CAD - $47.89 CAD
$47.89 CAD

Vendu en lots de : 1

Fraise-scie à queue courte 3 dents, diamètre 2mm avec longueur de coupe 7mm et longueur totale 51mm, selon norme DIN 844 K avec queue Weldon 6mm, HSS-E métallurgie des poudres finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en plongée dans l'acier de décolletage et l'acier au carbone non allié, le cuivre ou les alliages de cuivre et les superalliages à base de Fe, Ni et Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3052.0
GradeLumineux
Product Number5984345
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)0.2756"
Depth of Cut Max — mm (APMX)7.0 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)2.0079"
Overall Length — mm (OAL)51.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572320
EAN7320760572320
File Type Download

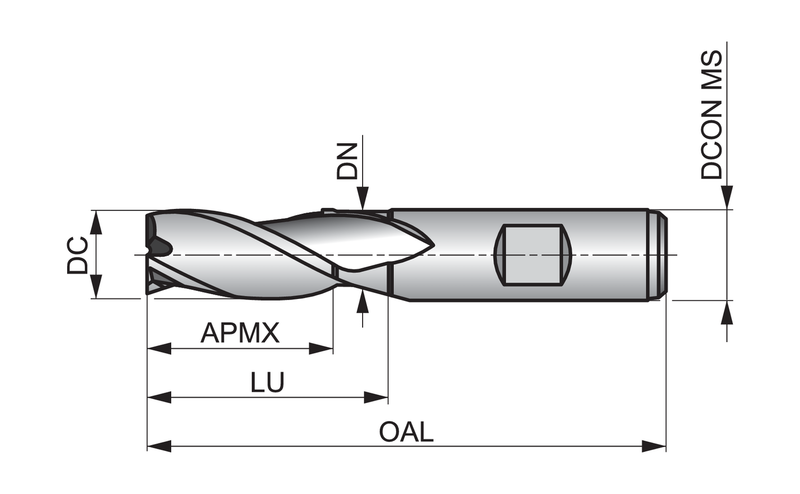

C3052.0 — Line Drawing PDF Download
