UGC DOR5984353
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$147.00 CAD - $147.00 CAD
$147.00 CAD
$147.00 CAD - $147.00 CAD
$147.00 CAD

Vendu en lots de : 1

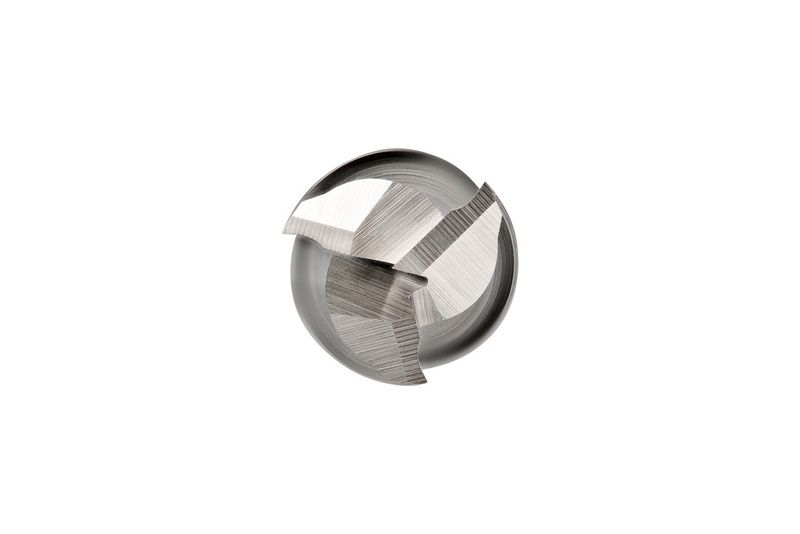

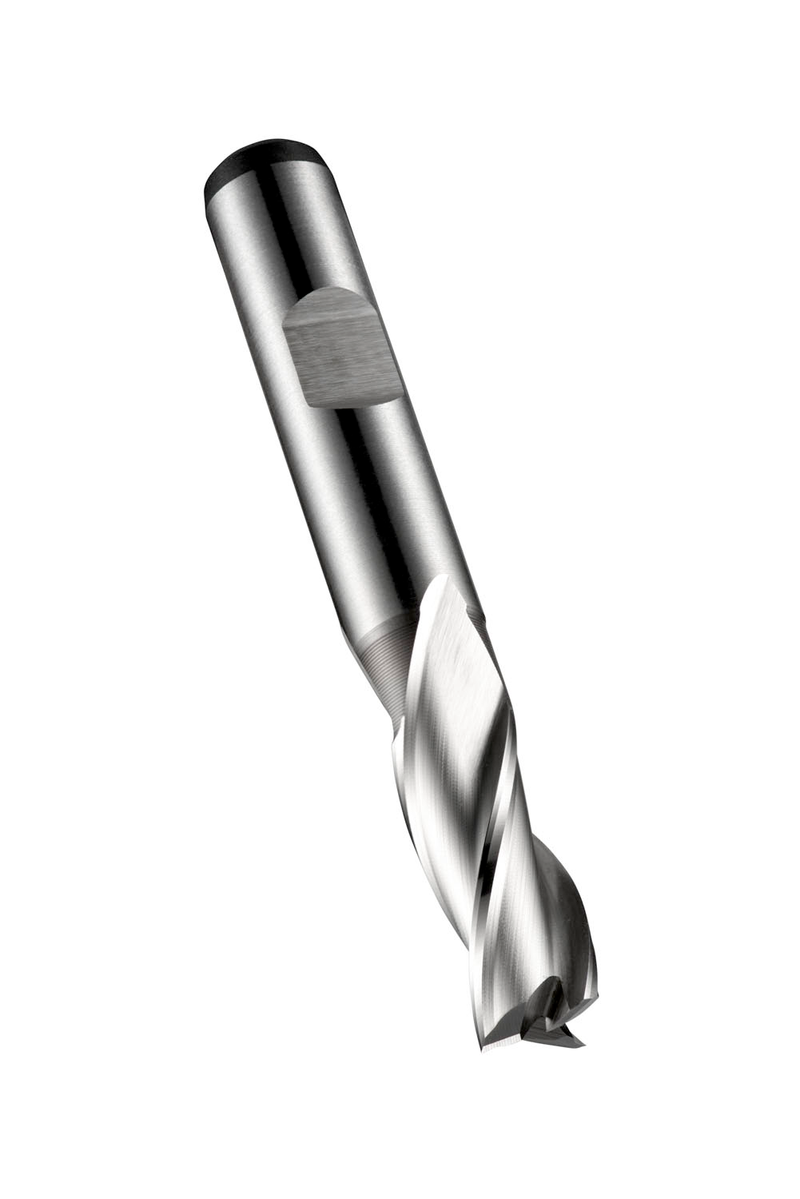

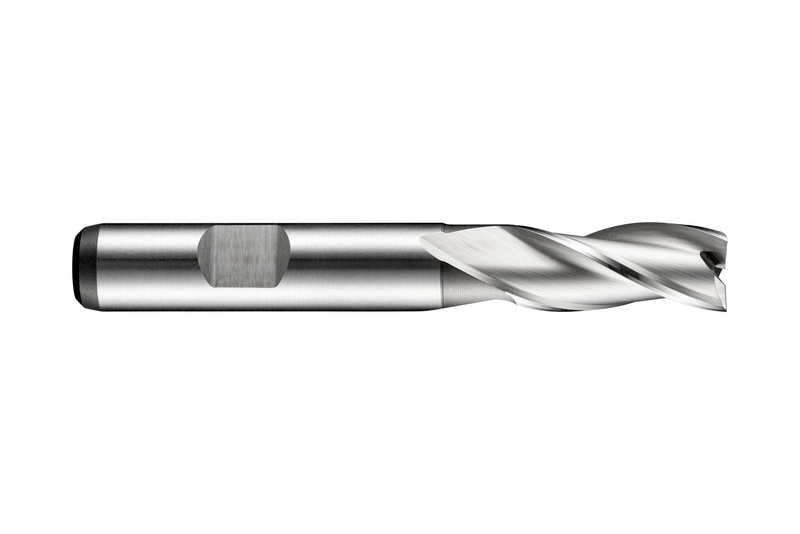

Fraise 3 tailles courte, 3 dents, diamètre 20mm avec 38mm de longueur de coupe, 104mm de longueur totale et 53,5mm de portée avec dégagement de la queue, selon la norme DIN 844 K avec une queue Weldon de 20mm, HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de coupe à 12° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en plongée dans les aciers à usinage libre et aciers au carbone, le cuivre ou les alliages de cuivre et les superalliages à base de Fe, de Ni et de Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30520.0
GradeLumineux
Product Number5984353
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)53.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572344
EAN7320760572344
File Type Download

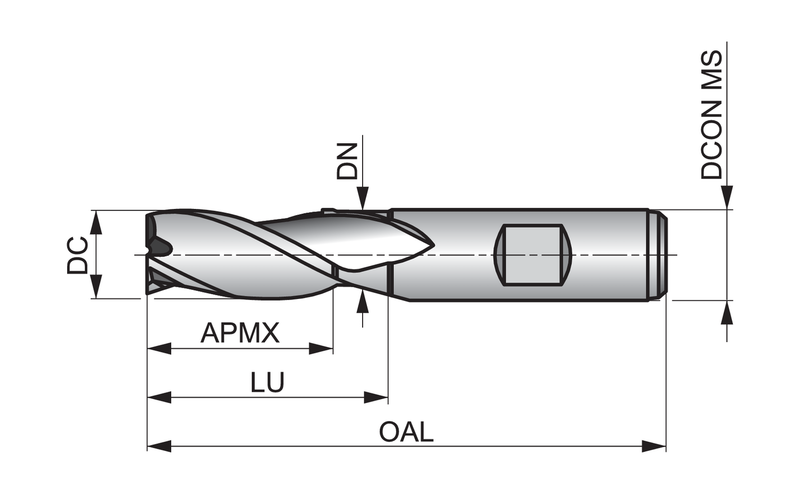

C30520.0 — Line Drawing PDF Download
