UGC DOR5984361
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$247.20 CAD - $247.20 CAD
$247.20 CAD
$247.20 CAD - $247.20 CAD
$247.20 CAD

Vendu en lots de : 1

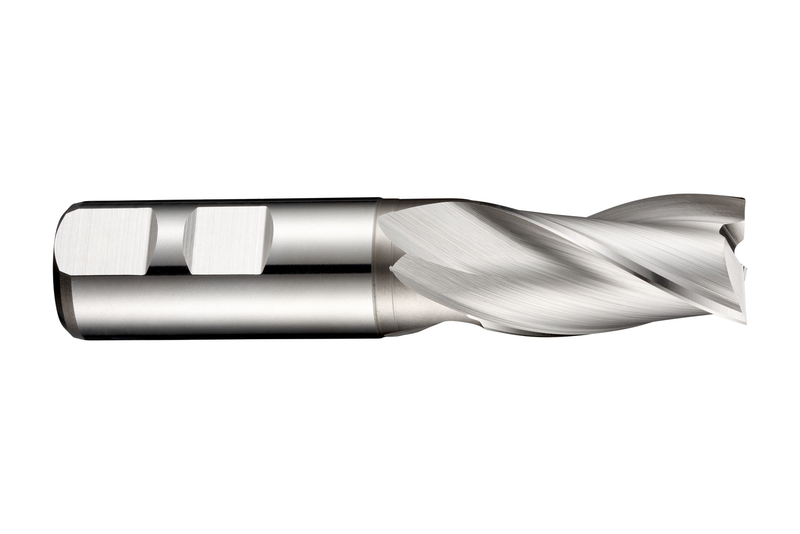

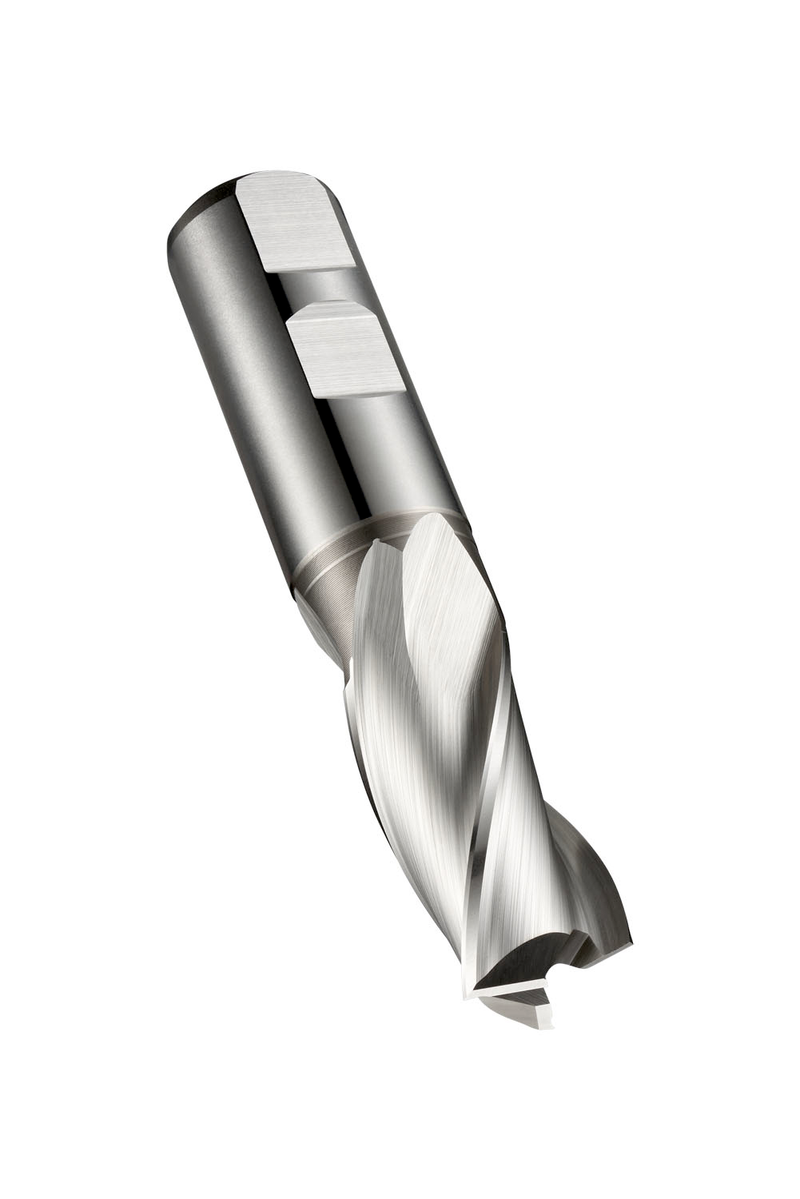

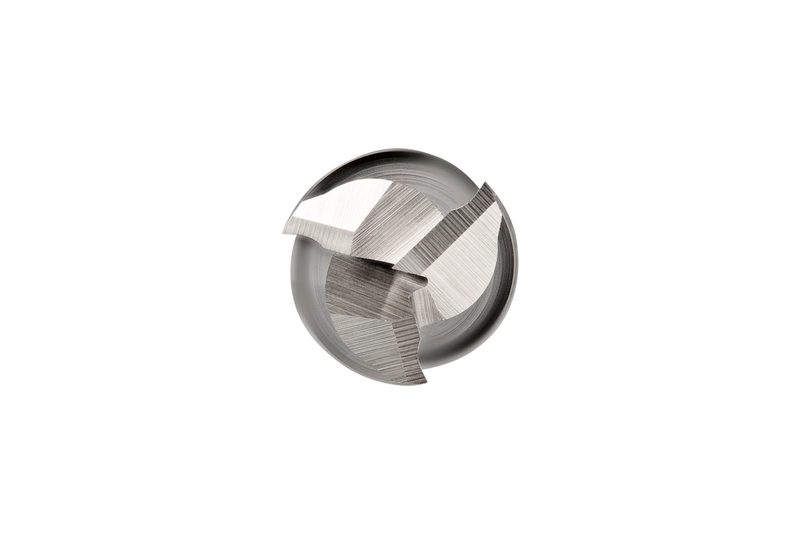

Fraise 3 tailles courte, diamètre 25 mm avec une longueur de coupe de 45 mm et une longueur totale de 121 mm, selon la norme DIN 844 K avec une queue Weldon de 25 mm, en HSS-E (acier rapide fritté) à finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers à usinage libre et au carbone, le cuivre ou les alliages de cuivre et les superalliages à base de Fe, Ni et Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30525.0
GradeLumineux
Product Number5984361
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)1.7717"
Depth of Cut Max — mm (APMX)45.0 mm
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)4.7638"
Overall Length — mm (OAL)121.0 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue de Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572368
EAN7320760572368
File Type Download
C30525.0 — Line Drawing PDF Download
