UGC DOR5984373
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.31 CAD - $46.31 CAD
$46.31 CAD
$46.31 CAD - $46.31 CAD
$46.31 CAD

Vendu en lots de : 1

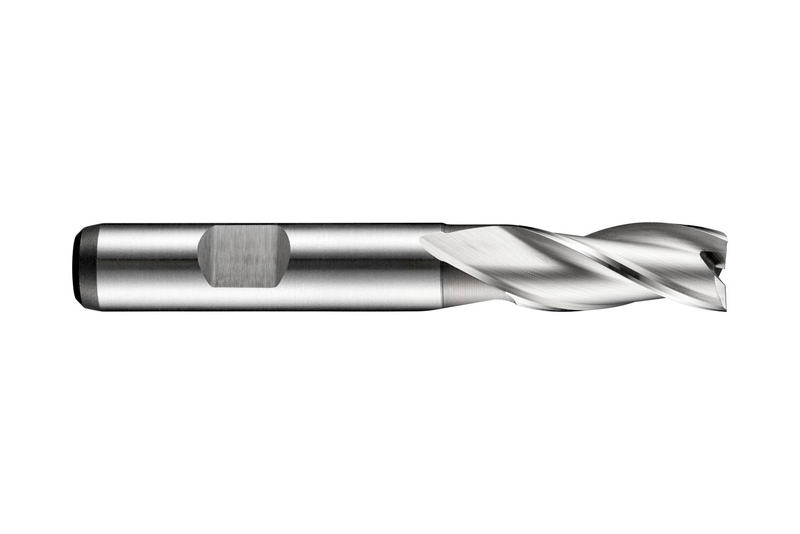

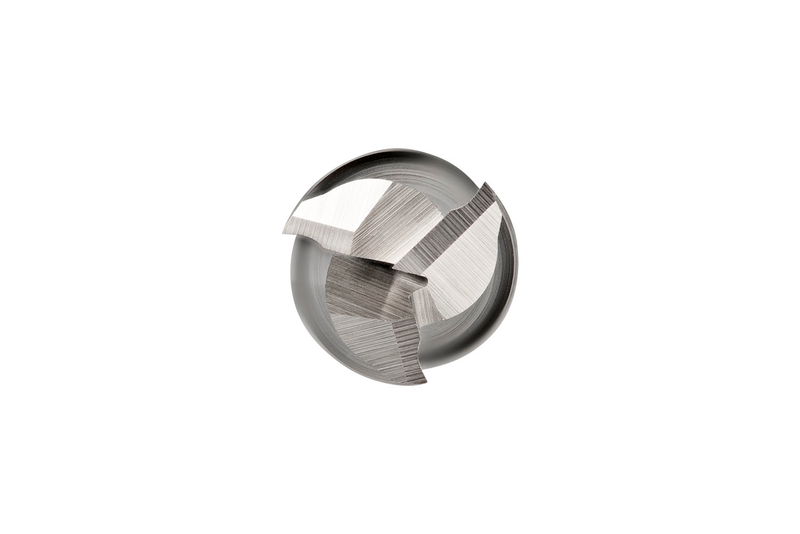

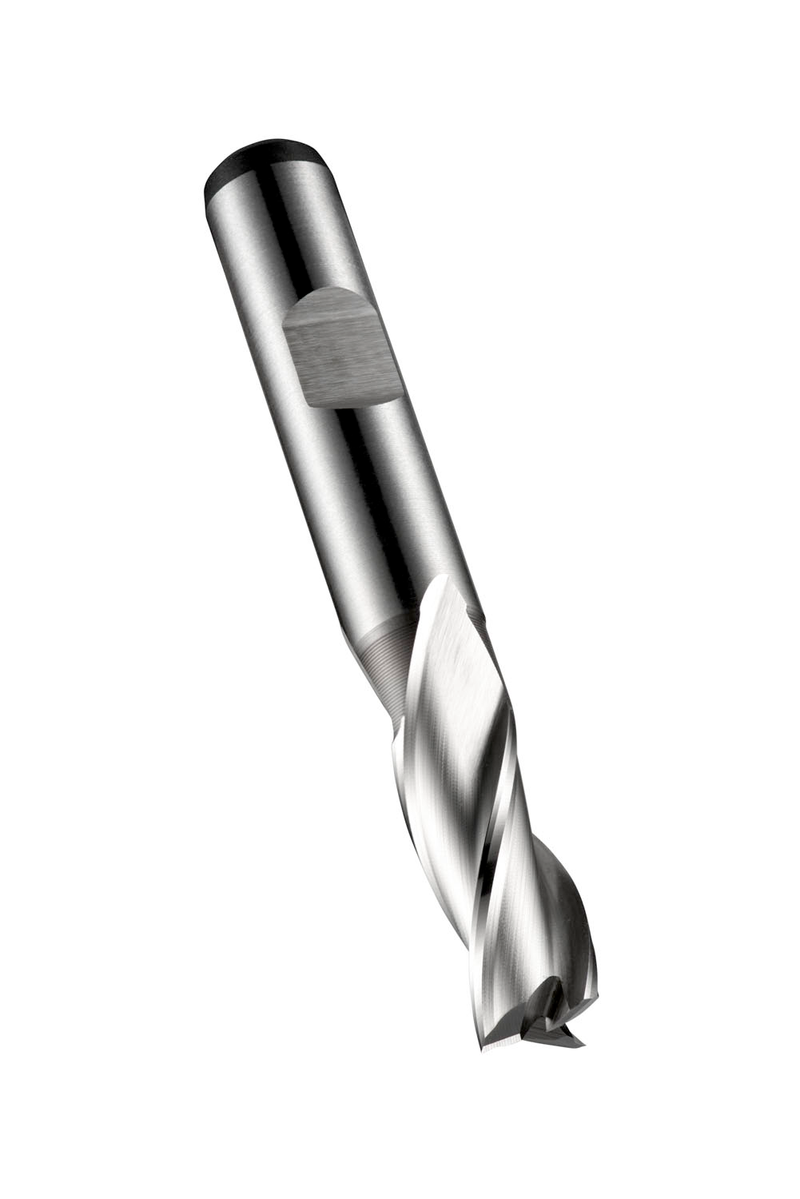

Fraise 3 tailles HSS-E PM queue Weldon 6 mm, courte, diamètre 3,5 mm avec 10 mm de longueur de coupe et 54 mm de longueur totale, selon la norme DIN 844 K, finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage et aciers au carbone non alliés, le cuivre ou les alliages de cuivre et les superalliages à base de Fe, Ni et Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3053.5
GradeLumineux
Product Number5984373
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.1378"
Cutting Diameter — mm (DC)3.5 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572399
EAN7320760572399
File Type Download
C3053.5 — Line Drawing PDF Download
