UGC DOR5984381
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$130.03 CAD - $130.03 CAD
$130.03 CAD
$130.03 CAD - $130.03 CAD
$130.03 CAD

Vendu en lots de : 1

Fraise-scie à deux tranchants de série courte, diamètre 22 mm, longueur de coupe 38 mm, longueur totale 104 mm et portée 53,5 mm avec dégagement, selon la norme DIN 844 K avec une queue Weldon de 20 mm, HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en rampe dans l'acier et l'acier moulé ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C12322.0
GradeLumineux
Product Number5984381
Product FamilyC123
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

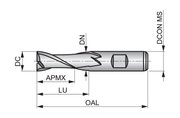

Dimensions
Cutting Diameter — in (DC)0.8661"
Cutting Diameter — mm (DC)22.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)53.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number353677
EAN7320760353677
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
C12322.0 — Line Drawing PDF Download
