UGC DOR5984383
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$361.20 CAD - $361.20 CAD
$361.20 CAD
$361.20 CAD - $361.20 CAD
$361.20 CAD

Vendu en lots de : 1

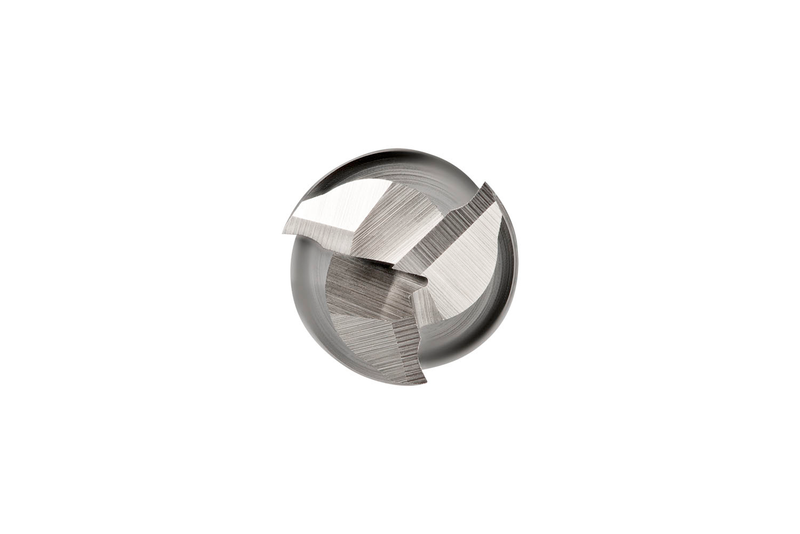

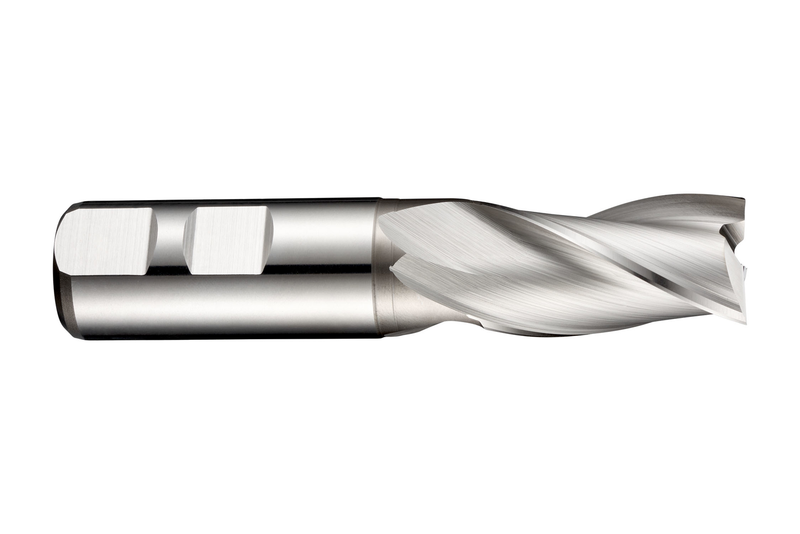

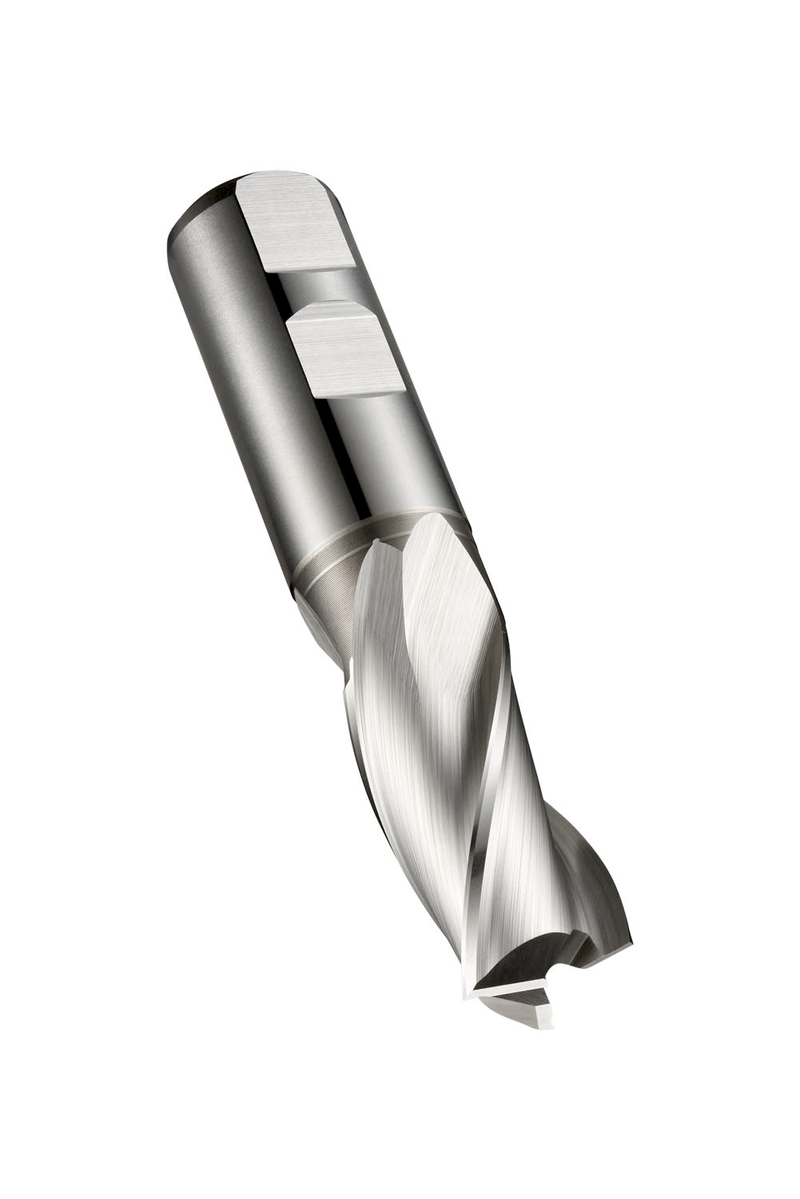

Fraise-scie courte à 3 dents, diamètre 32 mm avec 53 mm de longueur de coupe et 133 mm de longueur totale, conforme à la norme DIN 844 K avec une queue Weldon de 32 mm, en HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le surfaçage, le fraisage de rainures et le fraisage en plongée dans les aciers de décolletage et les aciers au carbone, le cuivre ou les alliages de cuivre et les superalliages à base de Fe, Ni et Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30532.0
GradeLumineux
Product Number5984383
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)2.0866"
Depth of Cut Max — mm (APMX)53.0 mm
Dimensions
Cutting Diameter — in (DC)1.2598"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572412
EAN7320760572412
File Type Download
C30532.0 — Line Drawing PDF Download
