UGC DOR5984394
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$210.37 CAD - $210.37 CAD
$210.37 CAD
$210.37 CAD - $210.37 CAD
$210.37 CAD

Vendu en lots de : 1

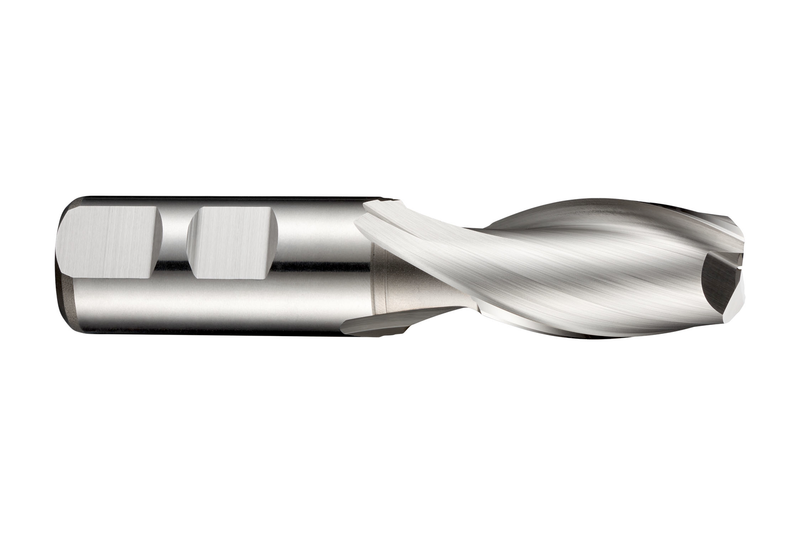

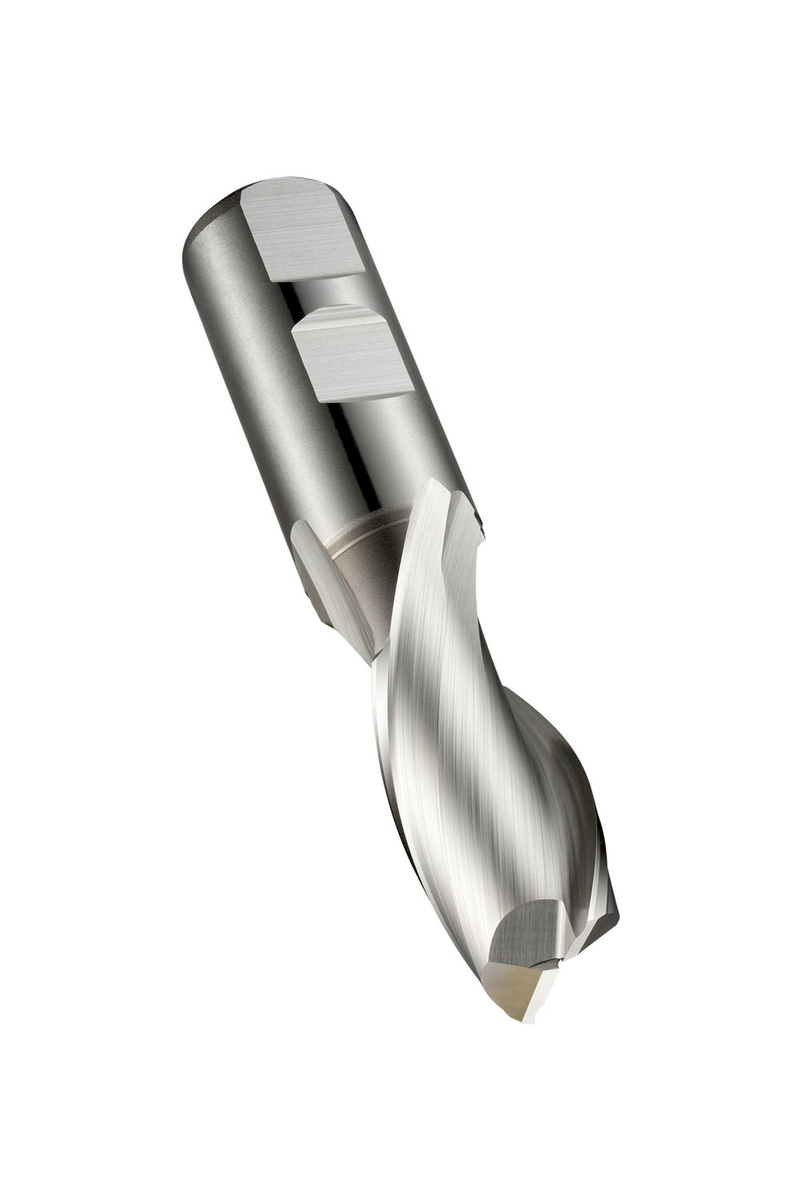

Fraise 2 tailles à queue cylindrique, série courte, diamètre 30 mm avec longueur de coupe de 45 mm, longueur totale de 121 mm et longueur utile de 64,5 mm avec dégagement, selon la norme DIN 844 K avec une queue Weldon de 25 mm, en HSS-E (acier rapide fritté) avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainure et l'interpolation hélicoïdale dans l'acier et l'acier moulé ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)C12330.0
Product Name (ISO)C12330,0
GradeLumineux
Product Number5984394
Product FamilyC123
Insert Geometry
Depth of Cut Max — in (APMX)1.7717"
Depth of Cut Max — mm (APMX)45.0 mm
Dimensions
Cutting Diameter — in (DC)1.1811"
Cutting Diameter — mm (DC)30.0 mm
Overall Length — in (OAL)4.7638"
Overall Length — mm (OAL)121.0 mm
Usable Length — mm (LU)64.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number353738
EAN7320760353738
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
C12330.0 — Line Drawing PDF Download
