UGC DOR5984414
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$144.30 CAD - $144.30 CAD
$144.30 CAD
$144.30 CAD - $144.30 CAD
$144.30 CAD

Vendu en lots de : 1

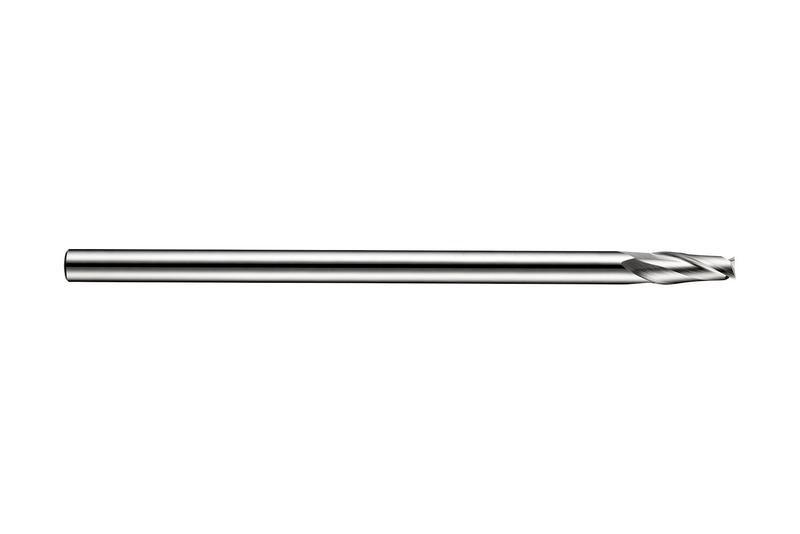

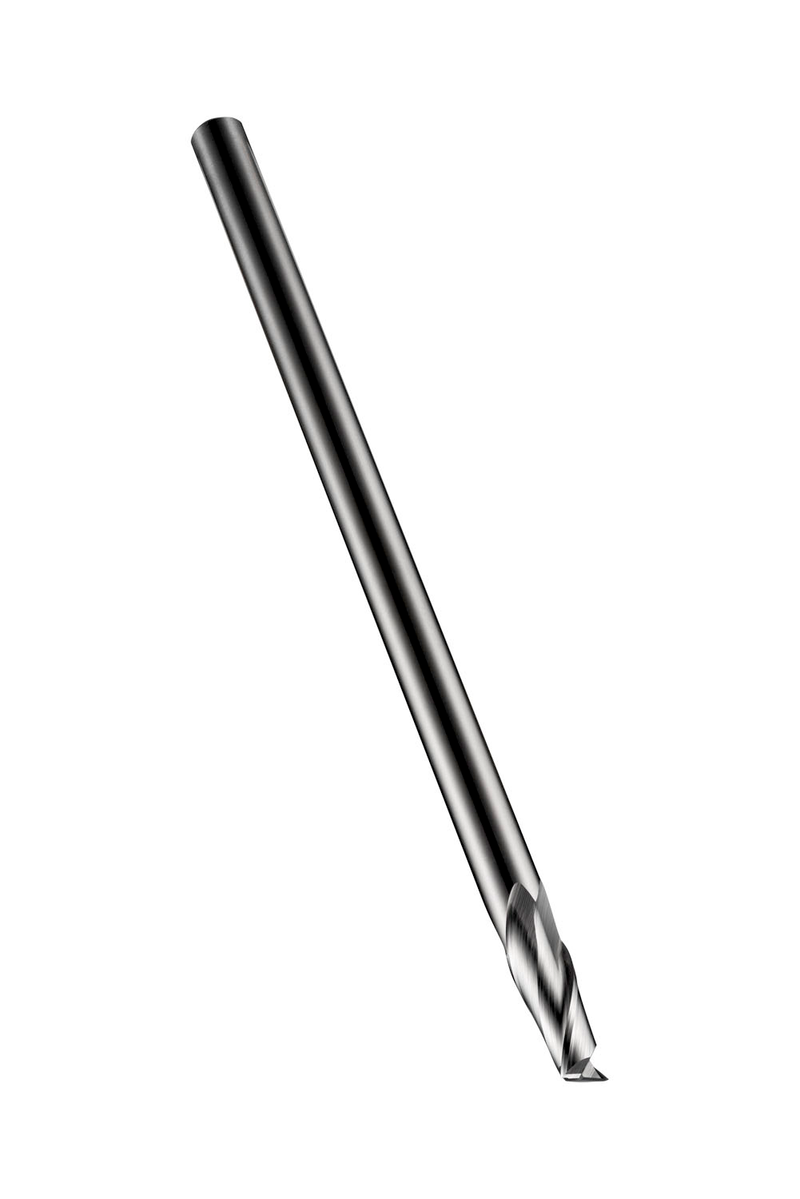

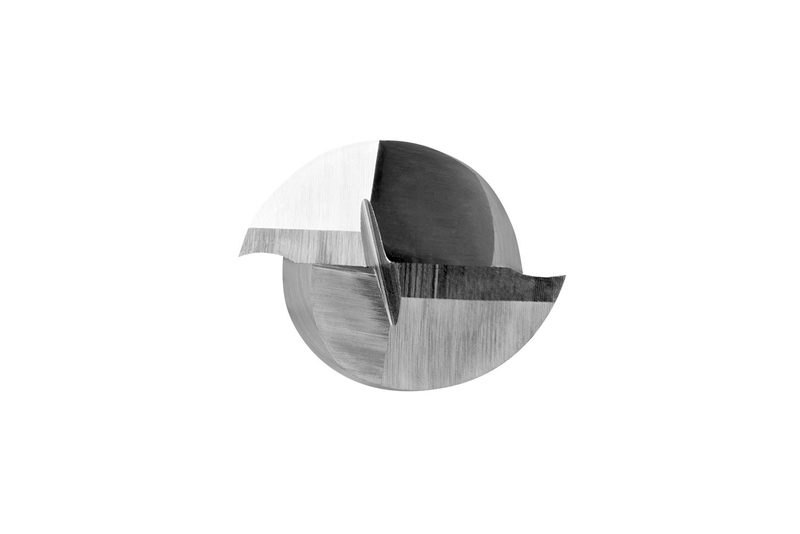

Fraise 2 tailles queue cylindrique courte, diamètre 10mm, longueur de coupe 22mm, longueur totale 200mm, selon norme DORMER, en HSS-E cobalt, finition brillante, hélice 30° et angle de dépouille 12°, pour l'épaufrénage et le rainurage dans l'acier de décolletage, le cuivre et ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C16710.0
GradeLumineux
Product Number5984414
Product FamilyC167
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

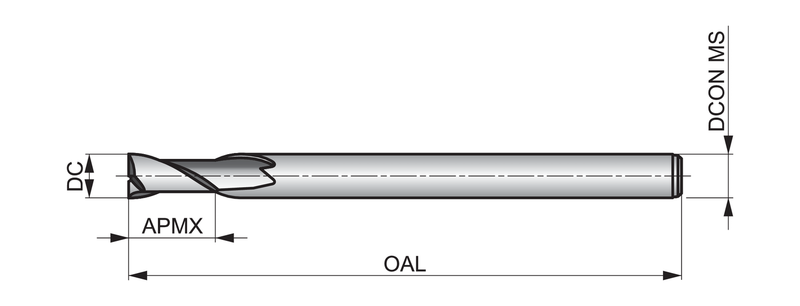

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number59883
EAN7320760059883
File Type Download
C16710.0 — Line Drawing PDF Download
