UGC DOR5984422
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$255.83 CAD - $255.83 CAD
$255.83 CAD
$255.83 CAD - $255.83 CAD
$255.83 CAD

Vendu en lots de : 1

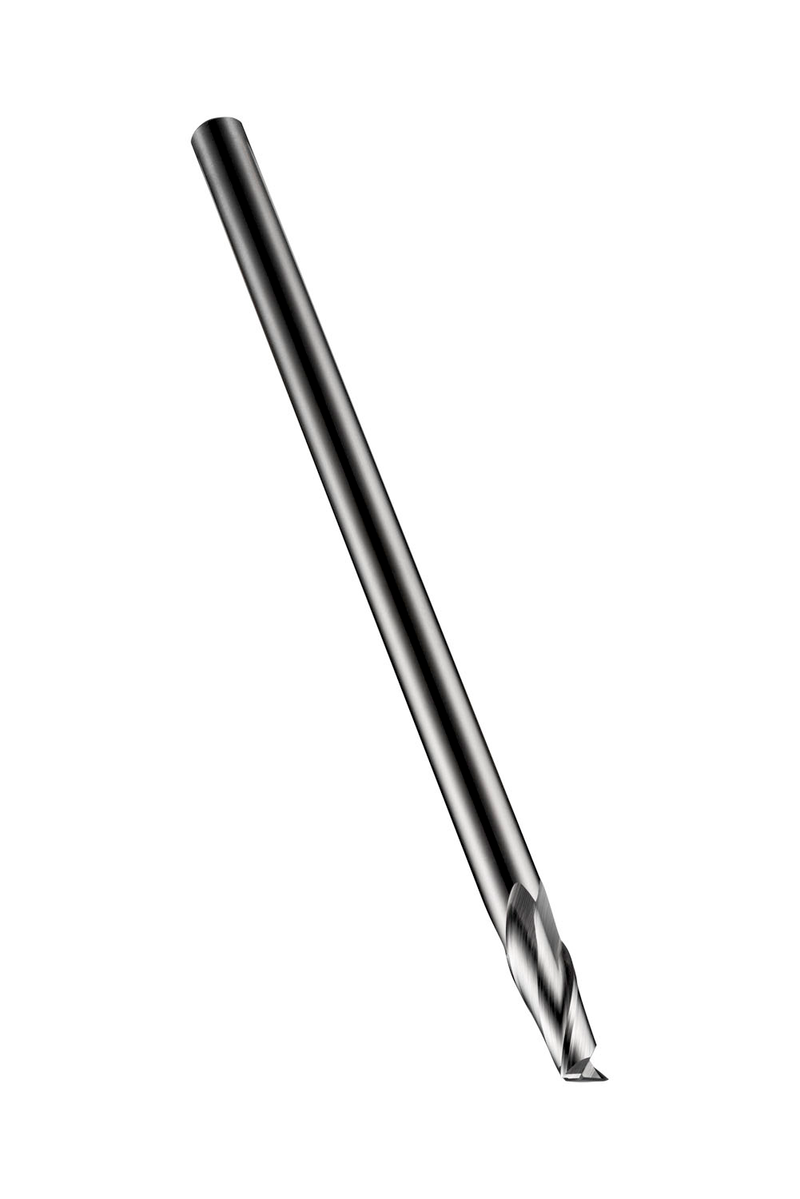

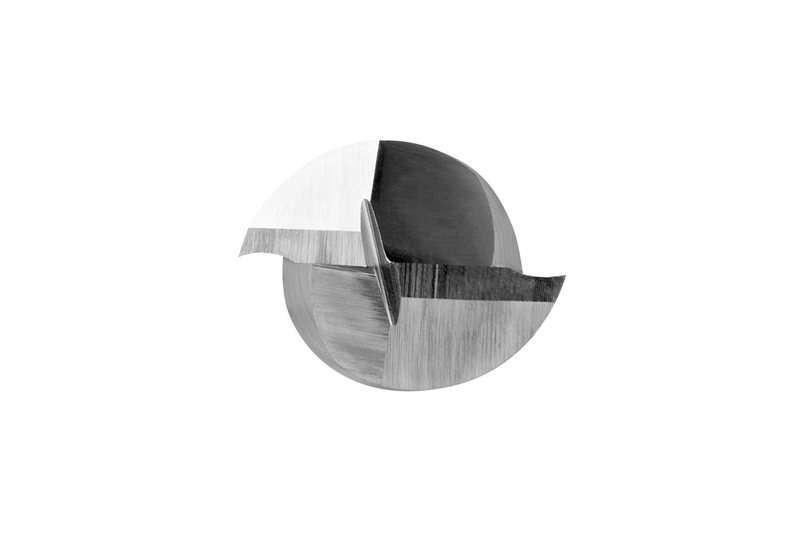

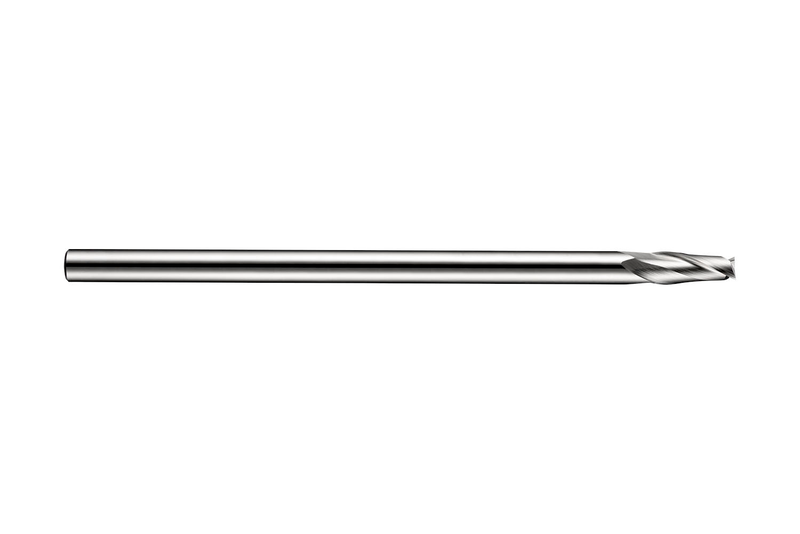

Fraise 2 tailles à queue cylindrique courte, diamètre 16mm, longueur de coupe 32mm et longueur totale 200mm, selon la norme DORMER avec une queue cylindrique de 16mm, en HSS-E cobalt avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulements et le fraisage de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)C16716,0
Product Name (ISO)C16716.0
GradeLumineux
Product Number5984422
Product FamilyC167

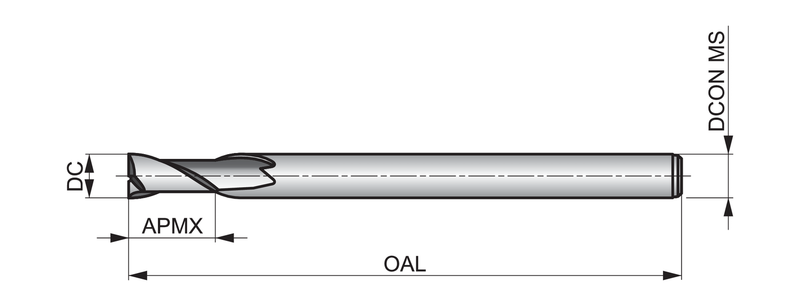

Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number59906
EAN7320760059906
File Type Download
C16716.0 — Line Drawing PDF Download
