UGC DOR5984425
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.13 CAD - $104.13 CAD
$104.13 CAD
$104.13 CAD - $104.13 CAD
$104.13 CAD

Vendu en lots de : 1

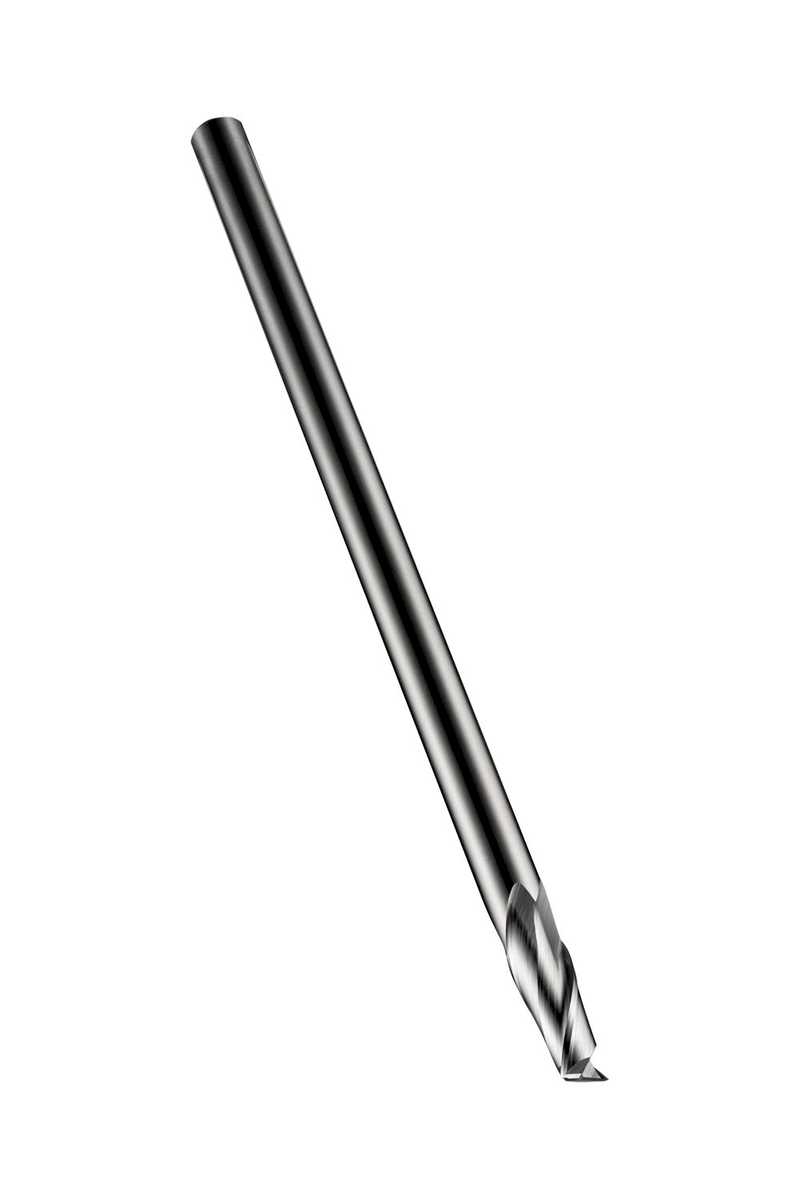

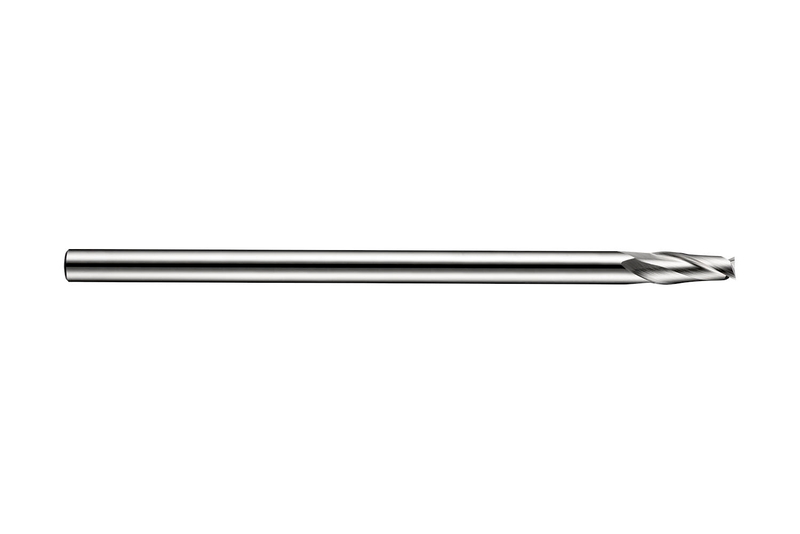

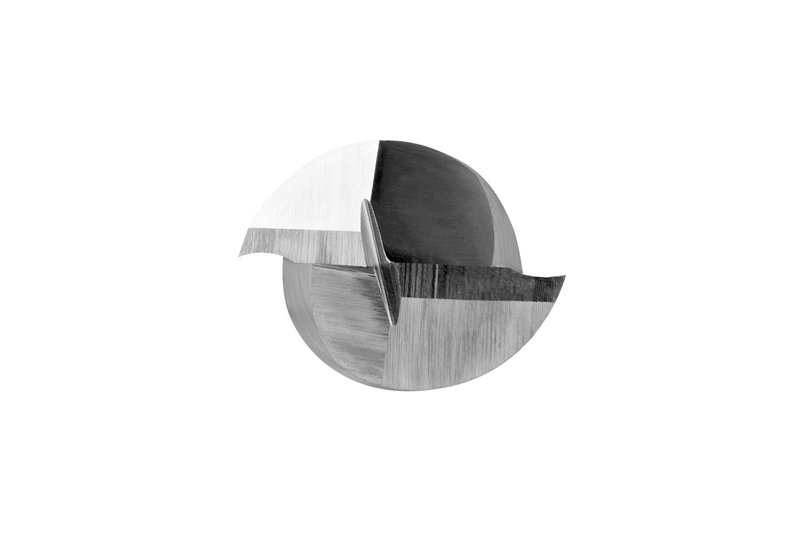

Fraise 2 tailles série courte, diamètre 6 mm, longueur de coupe 13 mm et longueur totale 180 mm, selon la norme DORMER avec queue cylindrique de 6 mm, en HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le surfaçage-dressage et l'usinage de rainures dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1676.0
GradeLumineux
Product Number5984425
Product FamilyC167
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm

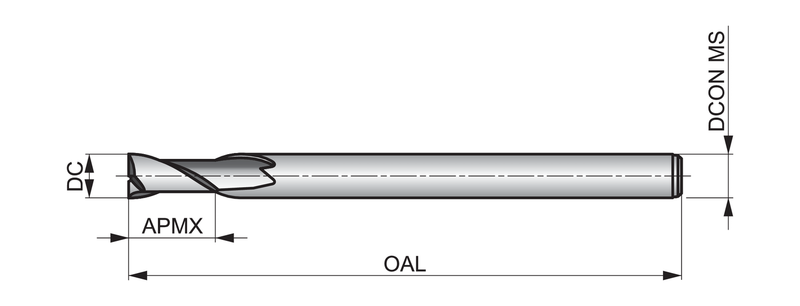

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)7.0866"
Overall Length — mm (OAL)180.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number59913
EAN7320760059913
File Type Download
C1676.0 — Line Drawing PDF Download
