UGC DOR5984428
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$131.09 CAD - $131.09 CAD
$131.09 CAD
$131.09 CAD - $131.09 CAD
$131.09 CAD

Vendu en lots de : 1

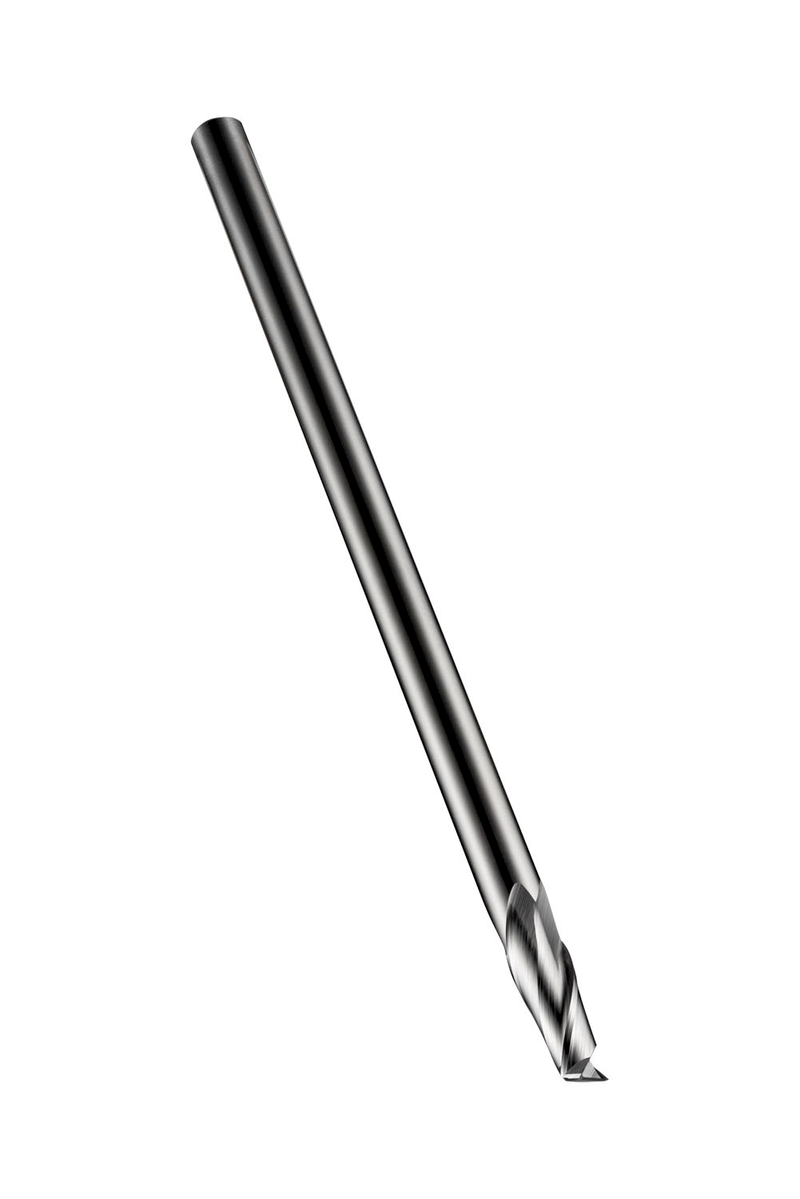

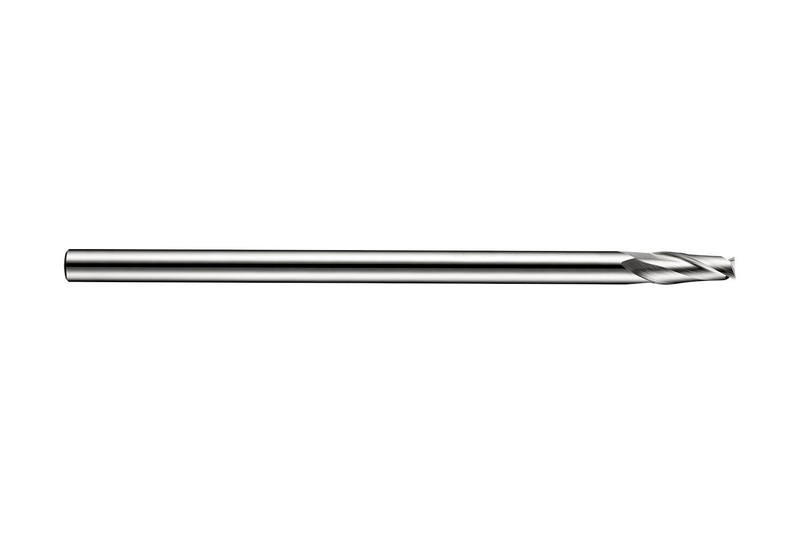

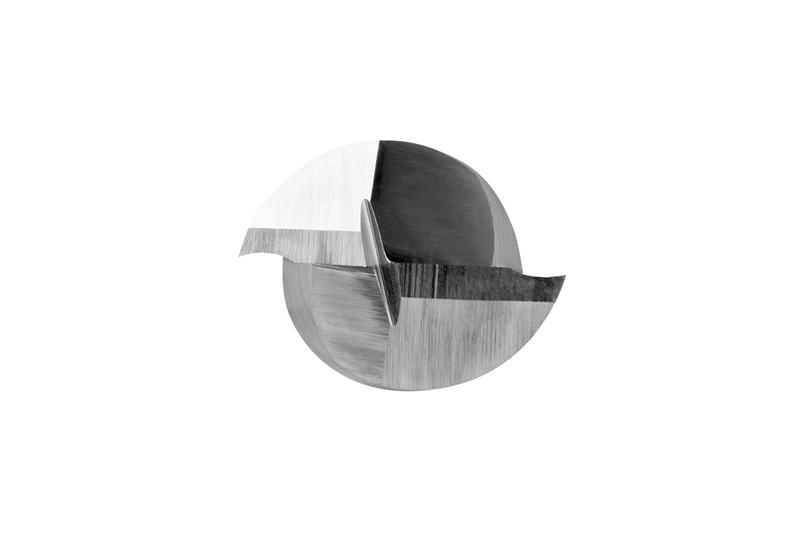

Fraise 2 tailles à queue cylindrique, série courte, diamètre 8 mm, longueur de coupe 19 mm, longueur totale 180 mm, selon la norme DORMER, en HSS-E cobalt, finition brillante, hélice 30° et angle de dépouille 12°, pour le fraisage d'épaulements et de rainures dans l'acier de décolletage, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1678.0
GradeLumineux
Product Number5984428
Product FamilyC167

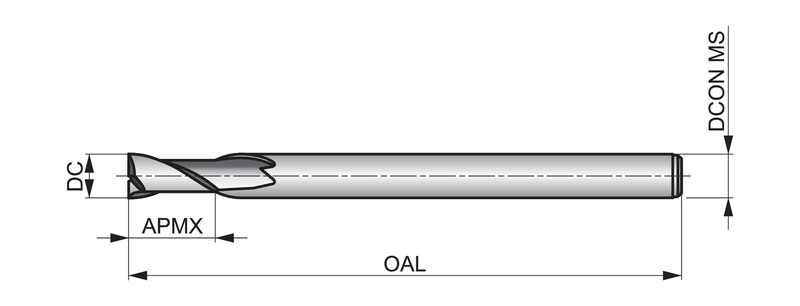

Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)7.0866"
Overall Length — mm (OAL)180.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number59920
EAN7320760059920
File Type Download
C1678.0 — Line Drawing PDF Download
