UGC DOR5984566
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.91 CAD - $90.91 CAD
$90.91 CAD
$90.91 CAD - $90.91 CAD
$90.91 CAD

Vendu en lots de : 1

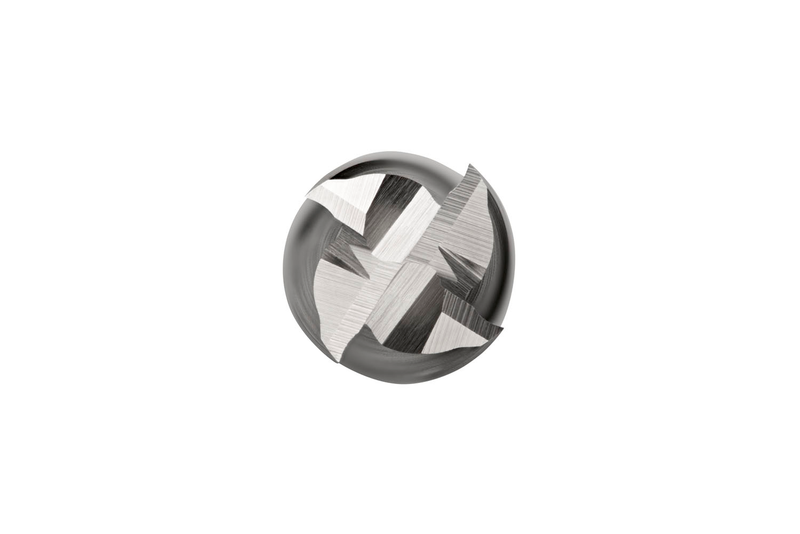

Fraise à queue longue 4 tailles, diamètre 1/2" avec 53mm de longueur de coupe, 110mm de longueur totale et 64.5mm de dégagement avec collet, selon la norme DIN 844 L avec queue Weldon de 12mm, en HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement et le fraisage de rainures dans les aciers de décolletage et au carbone et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2731/2
GradeLumineux
Product Number5984566
Product FamilyC273
Insert Geometry
Depth of Cut Max — in (APMX)2.0866"
Depth of Cut Max — mm (APMX)53.0 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)64.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique avec méplat DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number640302
EAN7320760640302
File Type Download
C2731/2 — Line Drawing PDF Download
