UGC DOR5984582
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.91 CAD - $53.91 CAD
$53.91 CAD
$53.91 CAD - $53.91 CAD
$53.91 CAD

Vendu en lots de : 1

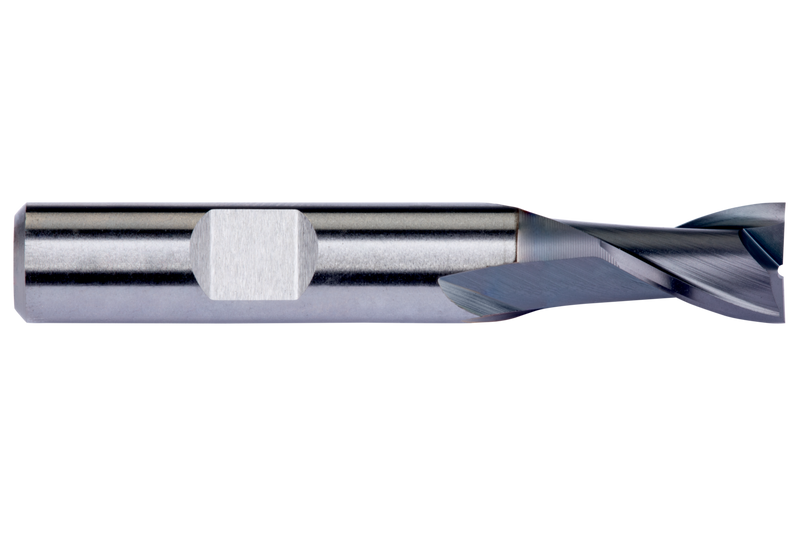

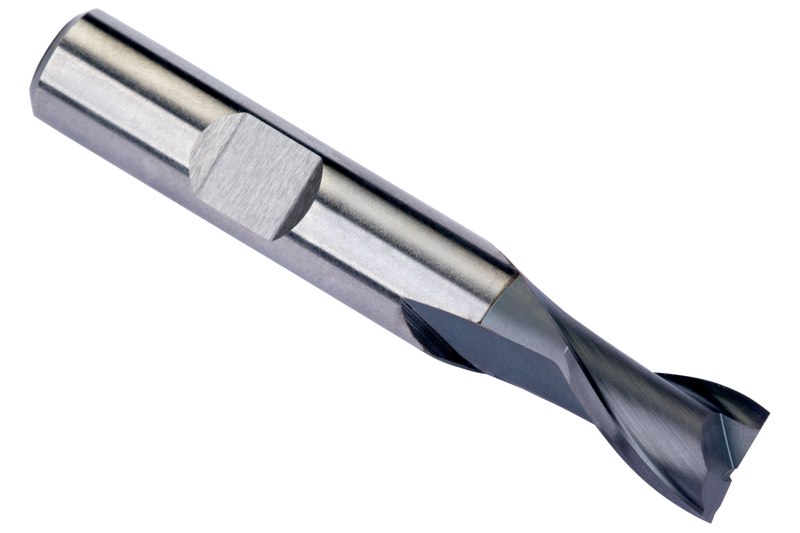

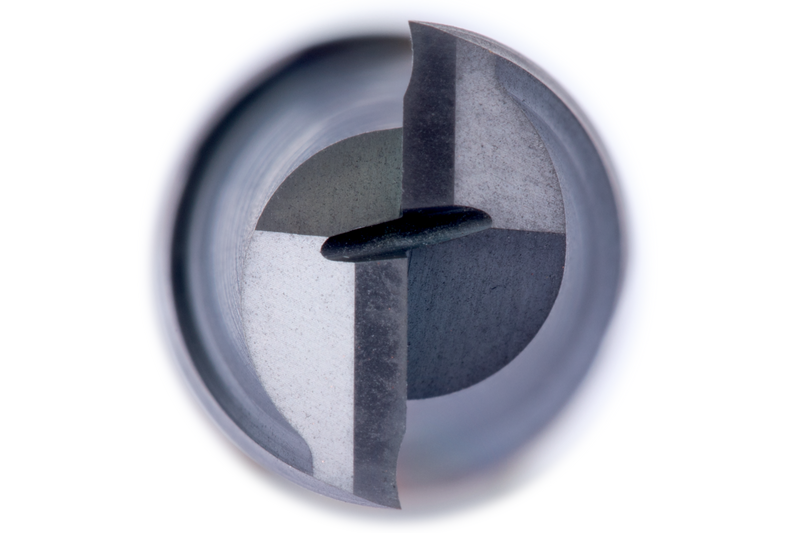

Fraise à lamer extra-courte à 2 dents, diamètre 7,5 mm, longueur de coupe 10 mm et longueur totale 60 mm, selon la norme DIN 327 D avec une queue Weldon de 10 mm, HSS-E métallurgie des poudres avec revêtement TiCN, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainure et l'interpolation hélicoïdale dans l'acier de décolletage, l'acier au carbone et allié, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1267,5
GradeTiCN
Product Number5984582
Product FamilyC126
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.2953"
Cutting Diameter — mm (DC)7.5 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number354179
EAN7320760354179
File Type Download
C1267,5 — Line Drawing PDF Download
