UGC DOR5984587
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.61 CAD - $57.61 CAD
$57.61 CAD
$57.61 CAD - $57.61 CAD
$57.61 CAD

Vendu en lots de : 1

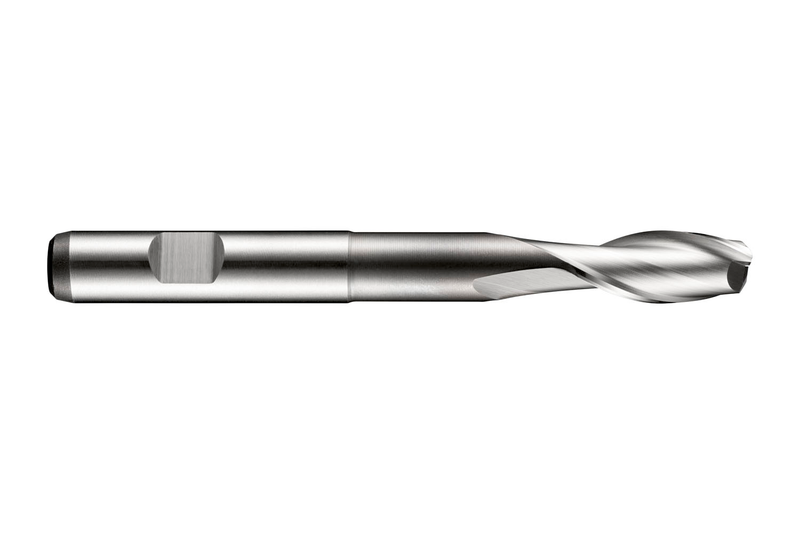

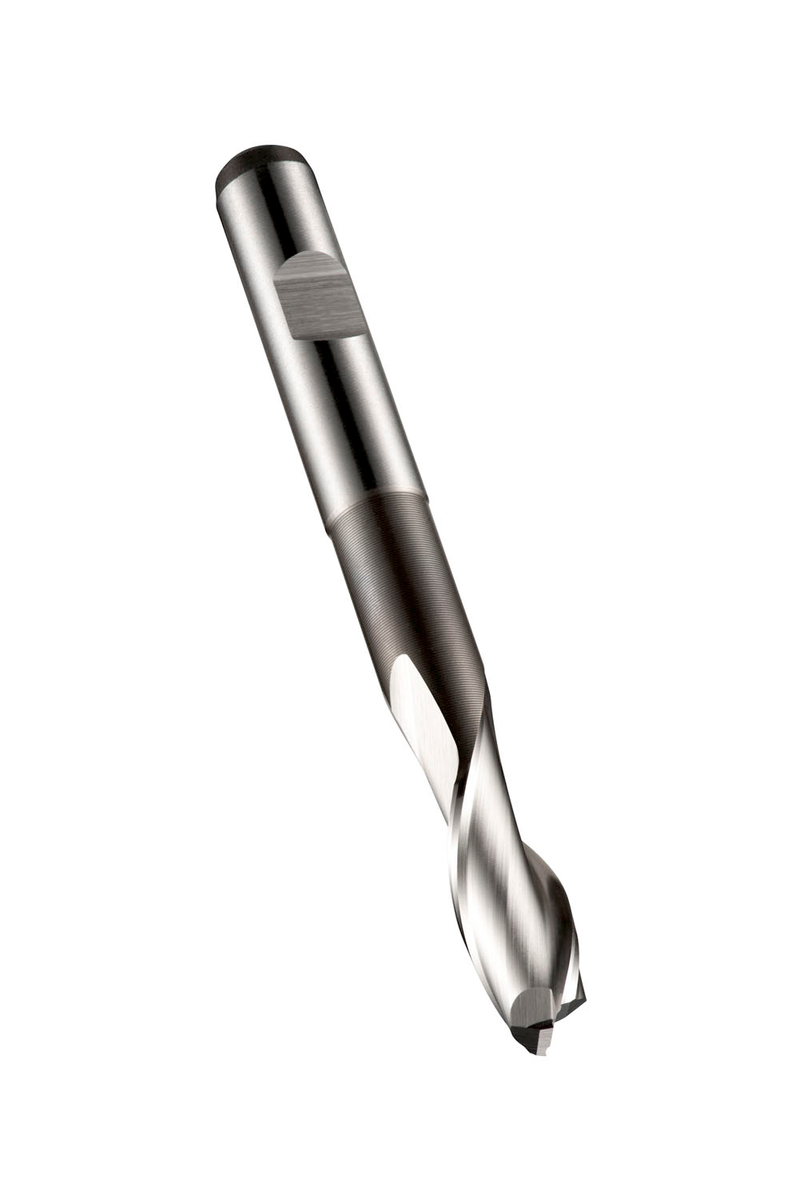

Fraise-scie courte à 2 dents, diamètre 10mm avec une longueur de coupe de 22mm, une longueur totale de 95mm et un dégagement de 54,5mm avec épaulement, selon la norme DORMER avec une queue Weldon de 10mm, en HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage de rainures dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C13510.0
GradeLumineux
Product Number5984587
Product FamilyC135
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

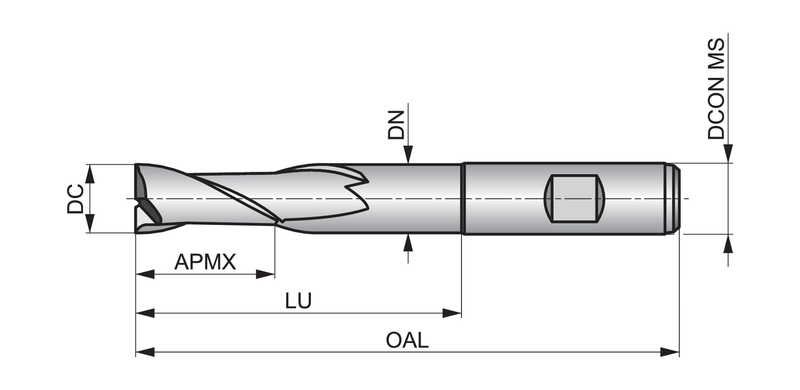

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.7402"
Overall Length — mm (OAL)95.0 mm
Usable Length — mm (LU)54.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number57490
EAN7320760057490
File Type Download
C13510.0 — Line Drawing PDF Download
