UGC DOR5984598
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.66 CAD - $67.66 CAD
$67.66 CAD
$67.66 CAD - $67.66 CAD
$67.66 CAD

Vendu en lots de : 1

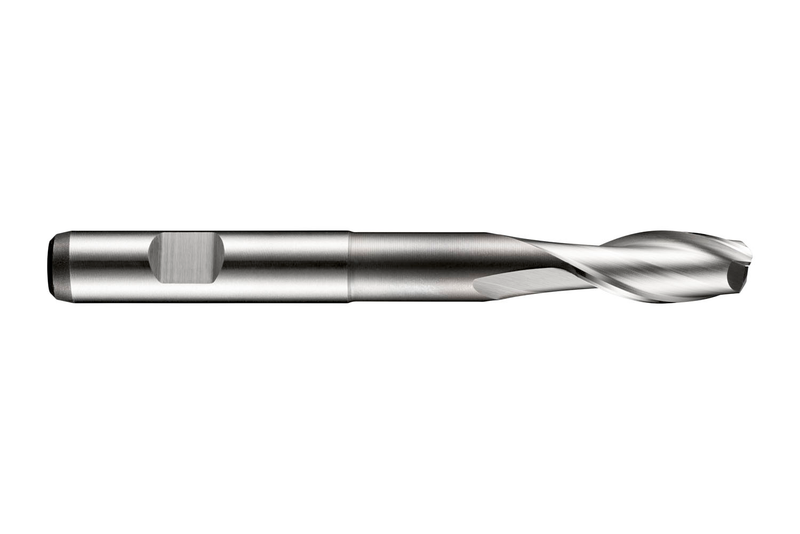

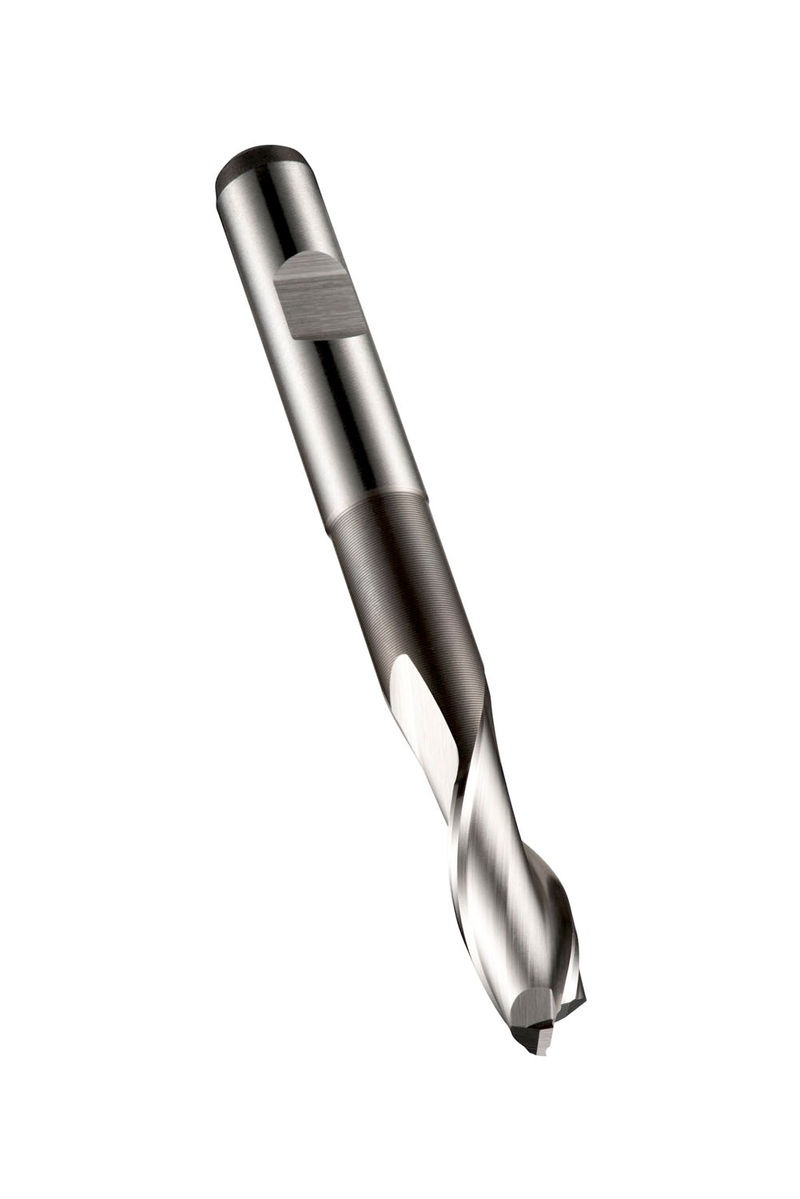

Fraise 2 tailles série courte, diamètre 12mm, longueur de coupe 26mm, longueur totale 110mm, longueur utile 64,5mm avec dégagement, selon la norme DORMER, avec queue Weldon 12mm, en HSS-E cobalt, finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage de rainures dans l'acier de décolletage, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C13512.0
GradeLumineux
Product Number5984598
Product FamilyC135

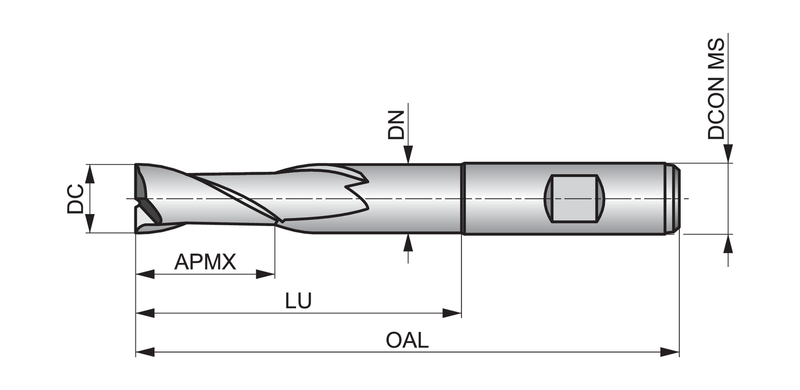

Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)64.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number57513
EAN7320760057513
File Type Download
C13512.0 — Line Drawing PDF Download
