UGC DOR5984605
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$85.10 CAD - $85.10 CAD
$85.10 CAD
$85.10 CAD - $85.10 CAD
$85.10 CAD

Vendu en lots de : 1

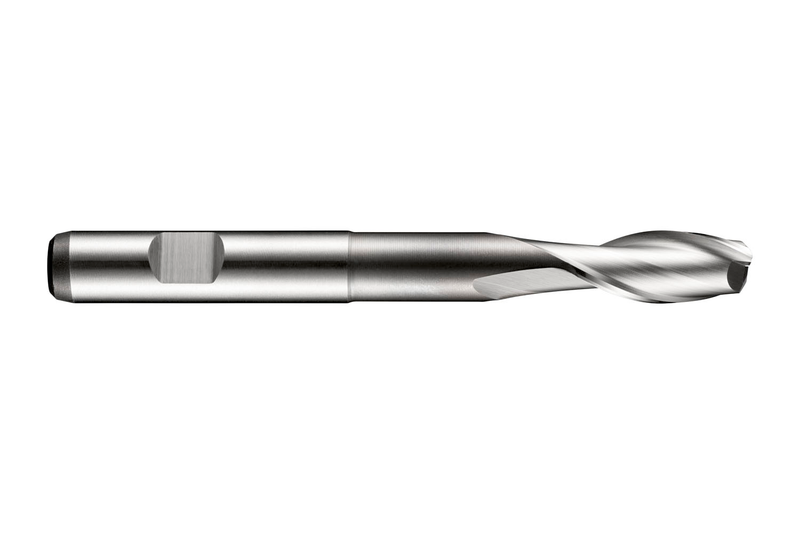

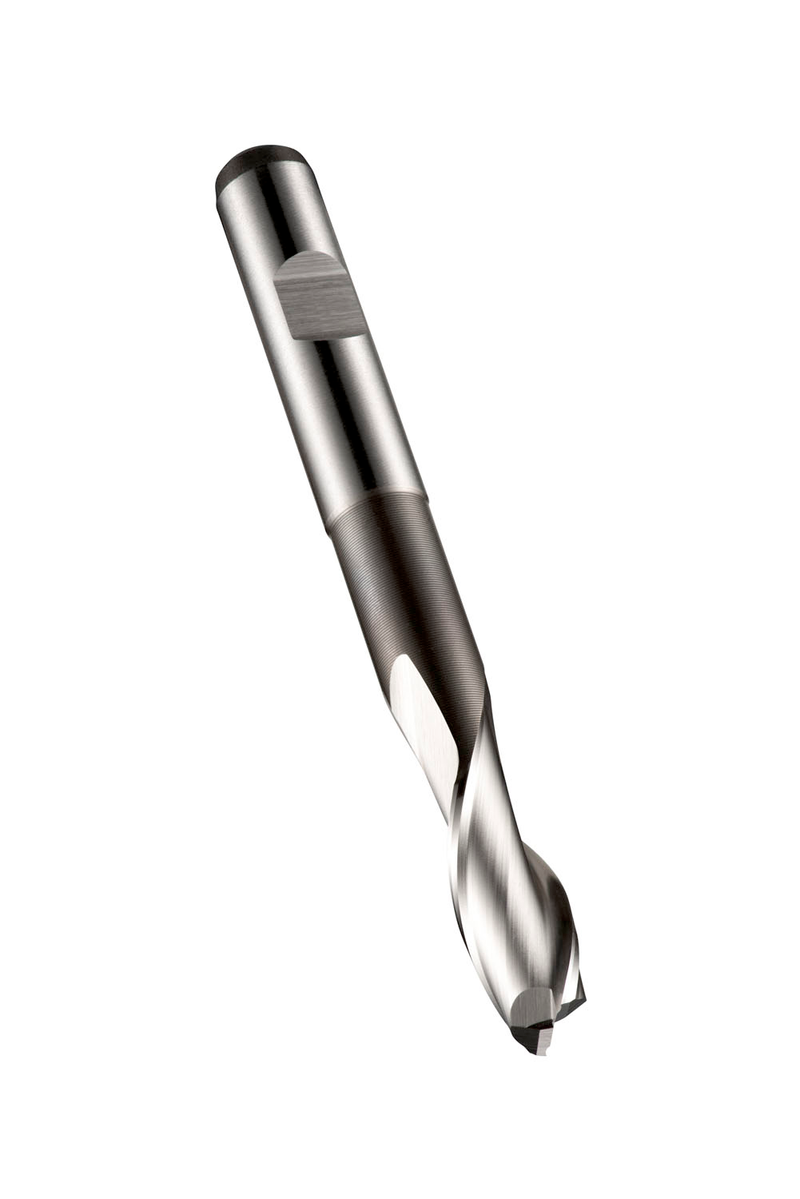

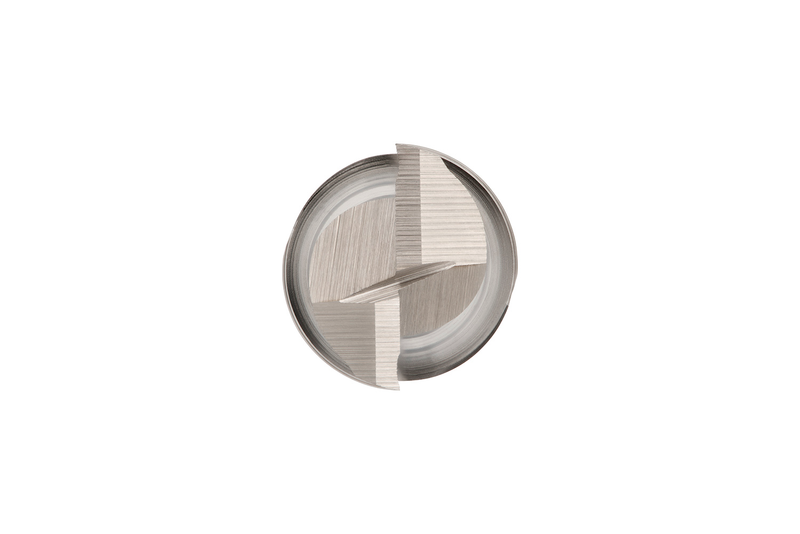

Fraise 2 tailles à rainurer série courte, diamètre 14mm avec 26mm de longueur de coupe, 110mm de longueur totale et 64,5mm de dégagement avec dégagement de col, selon la norme DORMER avec une queue Weldon de 12mm, en HSS-E cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage de rainures dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C13514.0
GradeLumineux
Product Number5984605
Product FamilyC135
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm

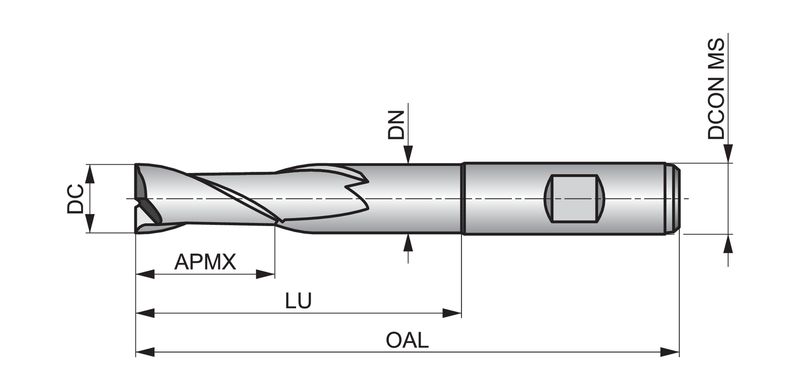

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)64.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number57537
EAN7320760057537
File Type Download
C13514.0 — Line Drawing PDF Download
