UGC DOR5984614
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$105.19 CAD - $105.19 CAD
$105.19 CAD
$105.19 CAD - $105.19 CAD
$105.19 CAD

Vendu en lots de : 1

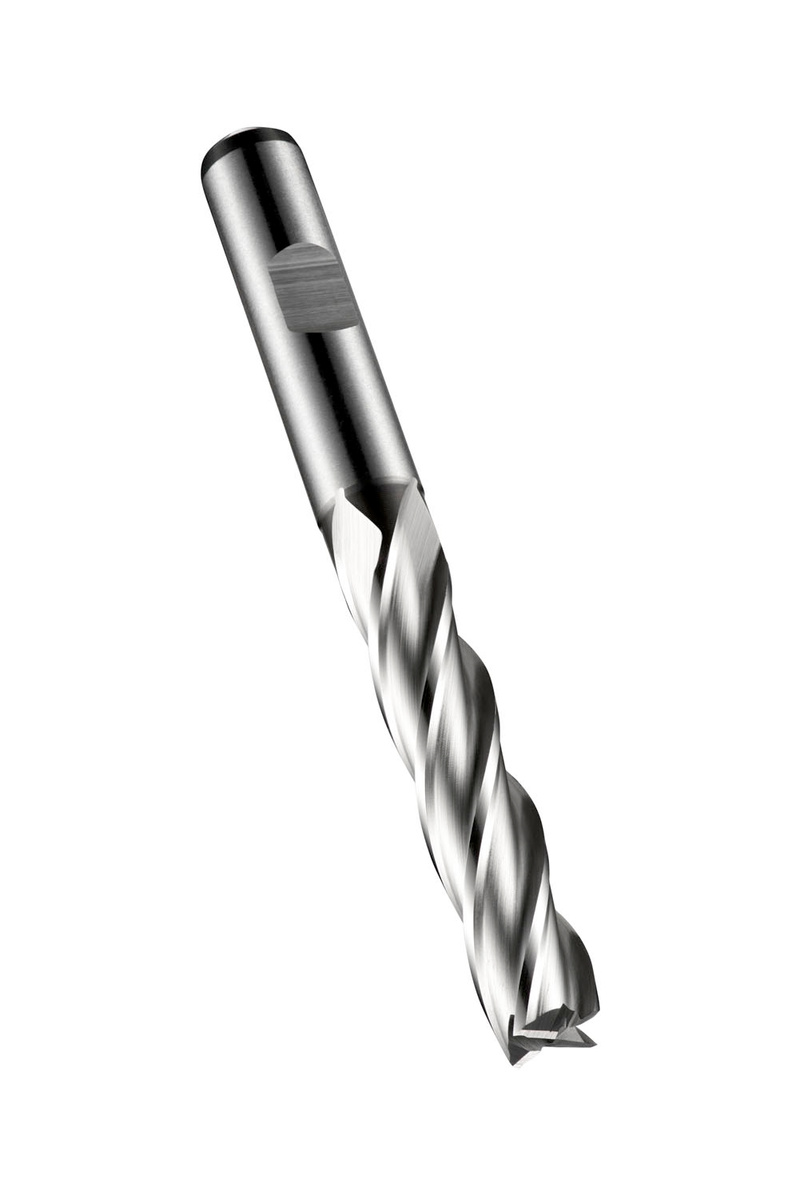

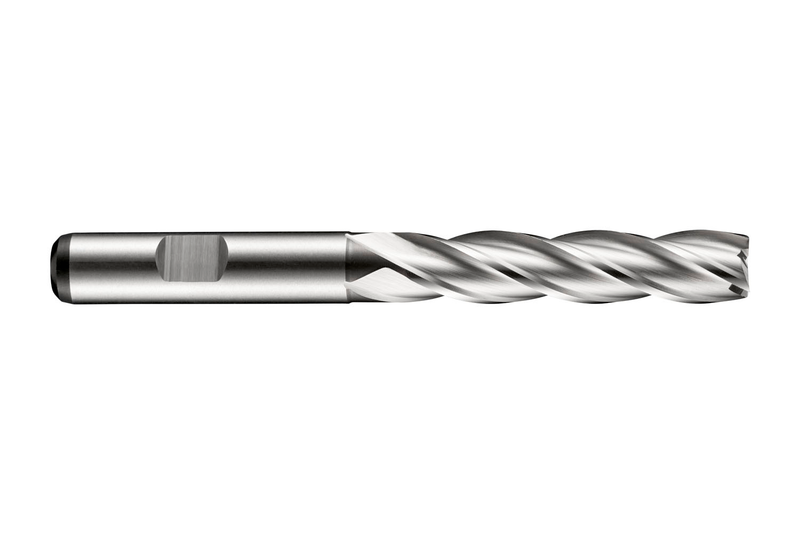

Fraise en bout série longue 4 dents, diamètre 16mm avec longueur de coupe de 63mm, longueur totale de 123mm et portée de 74,5mm avec dégagement, selon la norme DIN 844 L avec queue Weldon 16mm, en HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le surfaçage et le fraisage de rainures dans l'acier de décolletage, l'acier au carbone non allié, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)C27316.0
Product Name (ISO)C27316,0
GradeLumineux
Product Number5984614
Product FamilyC273
Insert Geometry

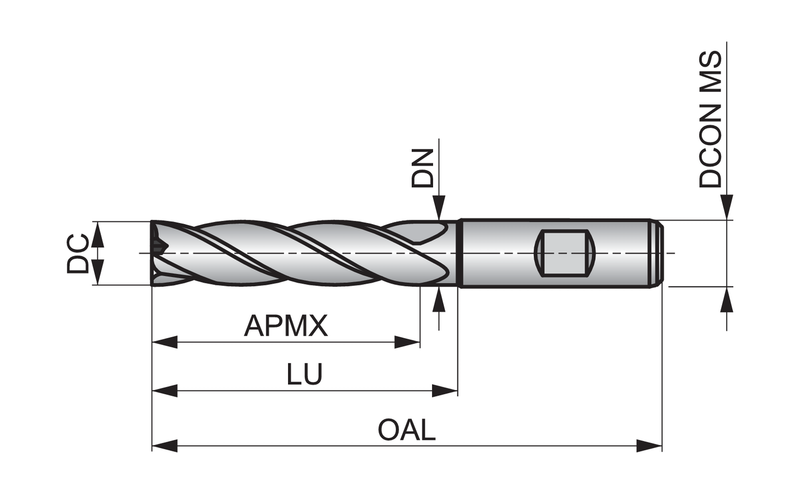

Depth of Cut Max — in (APMX)2.4803"
Depth of Cut Max — mm (APMX)63.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.8425"
Overall Length — mm (OAL)123.0 mm
Usable Length — mm (LU)74.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm

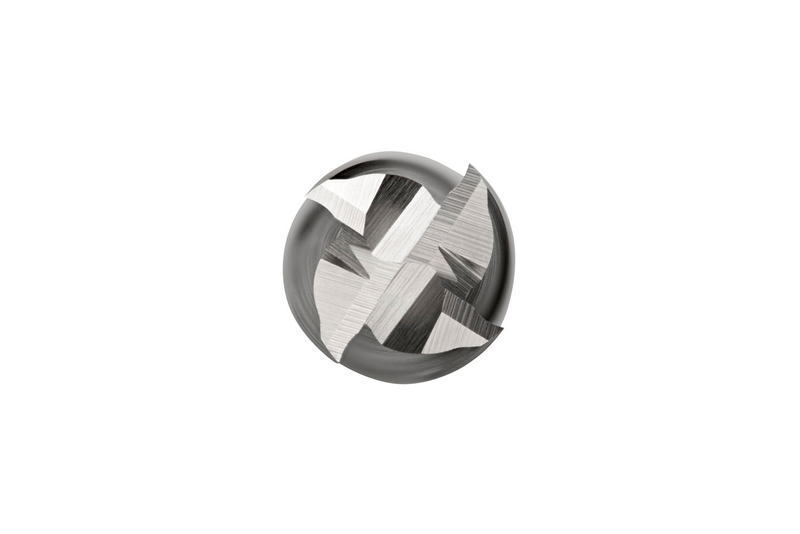

Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number354940
EAN7320760354940
File Type Download
C27316.0 — Line Drawing PDF Download
