UGC DOR5984622
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$116.81 CAD - $116.81 CAD
$116.81 CAD
$116.81 CAD - $116.81 CAD
$116.81 CAD

Vendu en lots de : 1

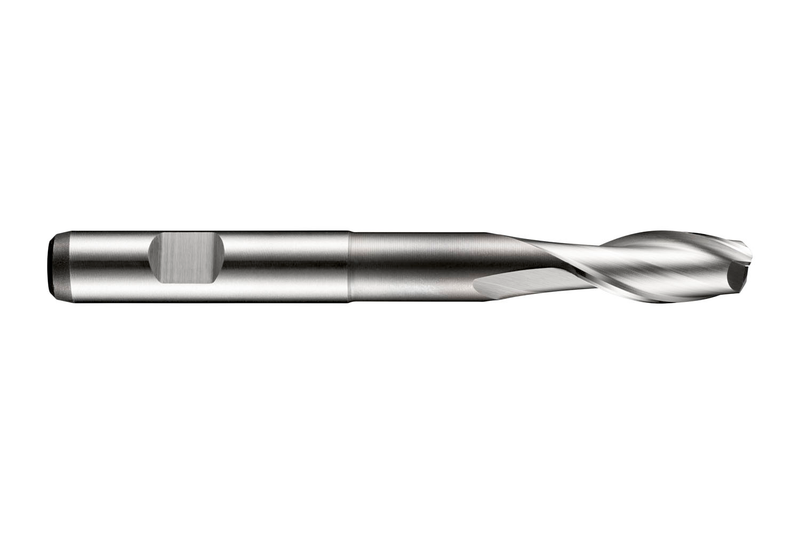

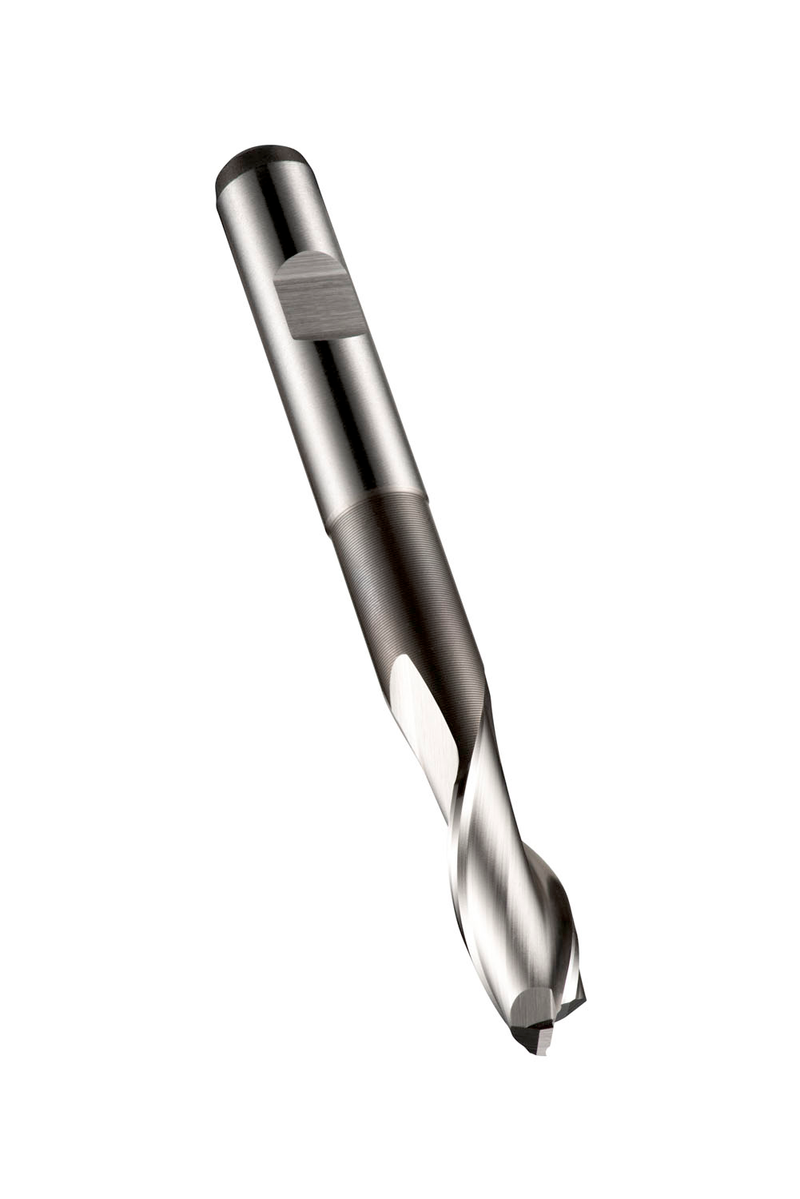

Fraise 2 dents de série courte pour rainures, diamètre 18mm avec une longueur de coupe de 32mm, une longueur totale de 123mm et une longueur utile de 74,5mm avec dégagement de queue, selon la norme DORMER avec un attachement Weldon de 16mm, HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C13518.0
GradeLumineux
Product Number5984622
Product FamilyC135
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm

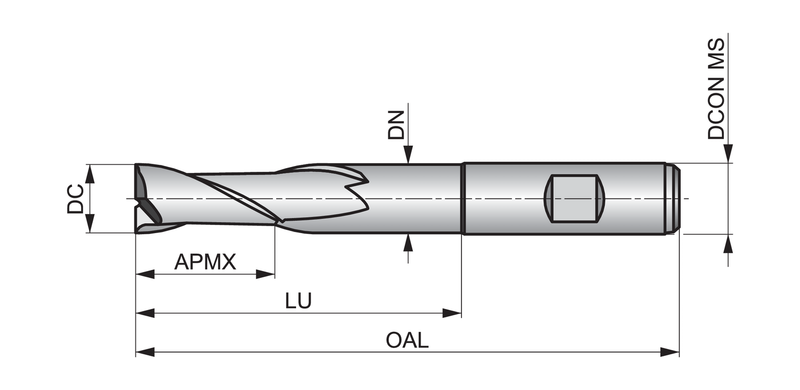

Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)4.8425"
Overall Length — mm (OAL)123.0 mm
Usable Length — mm (LU)74.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number57575
EAN7320760057575
File Type Download
C13518.0 — Line Drawing PDF Download
