UGC DOR5984629
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.03 CAD - $44.03 CAD
$44.03 CAD
$44.03 CAD - $44.03 CAD
$44.03 CAD

Vendu en lots de : 1

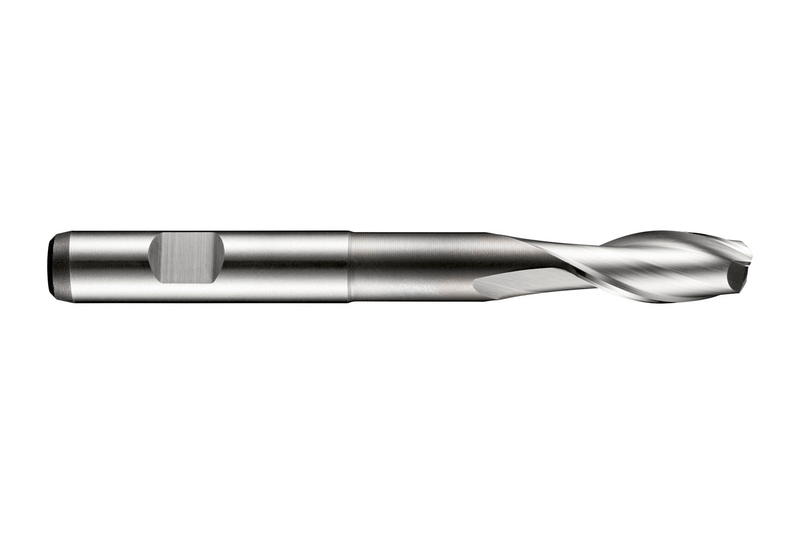

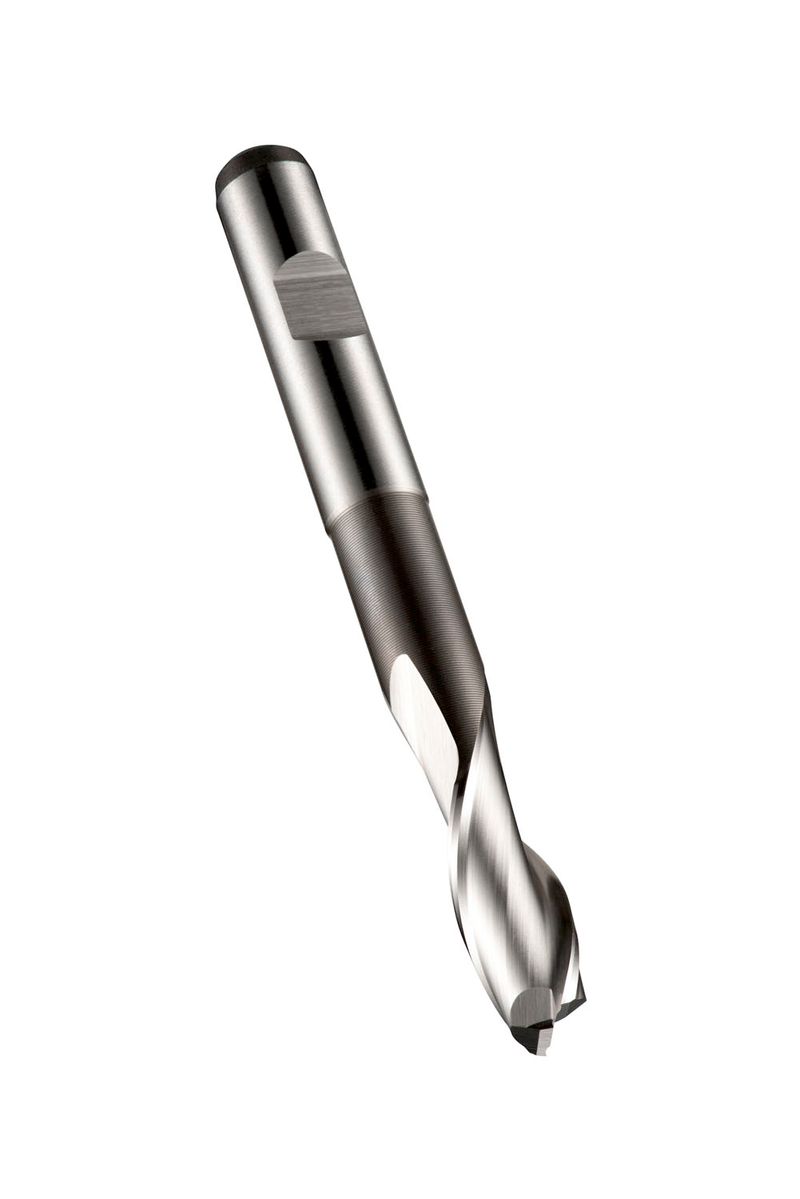

Fraise 2 dents pour rainures, série courte, diamètre 2 mm, longueur de coupe 7 mm, longueur totale 54 mm, longueur utile 18 mm avec dégagement, selon la norme DORMER avec queue Weldon 6 mm, en HSS-E à base de cobalt avec finition brillante, hélice à 30° et angle de coupe à 12° pour le fraisage de rainures dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1352.0
GradeLumineux
Product Number5984629
Product FamilyC135
Insert Geometry
Depth of Cut Max — in (APMX)0.2756"
Depth of Cut Max — mm (APMX)7.0 mm

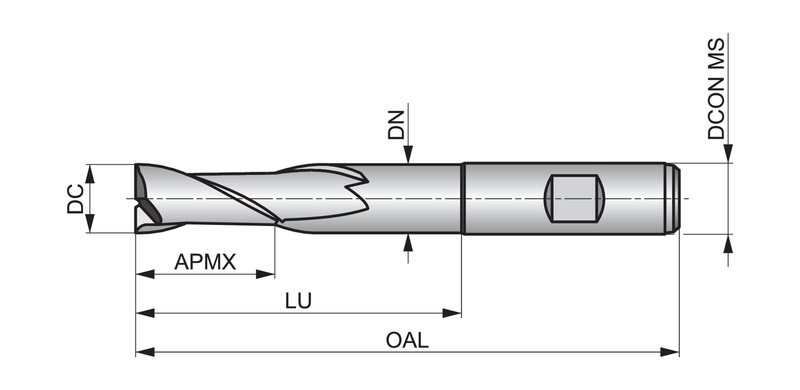

Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue à souder DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number57599
EAN7320760057599
File Type Download
C1352.0 — Line Drawing PDF Download
