UGC DOR5984634
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.60 CAD - $41.60 CAD
$41.60 CAD
$41.60 CAD - $41.60 CAD
$41.60 CAD

Vendu en lots de : 1

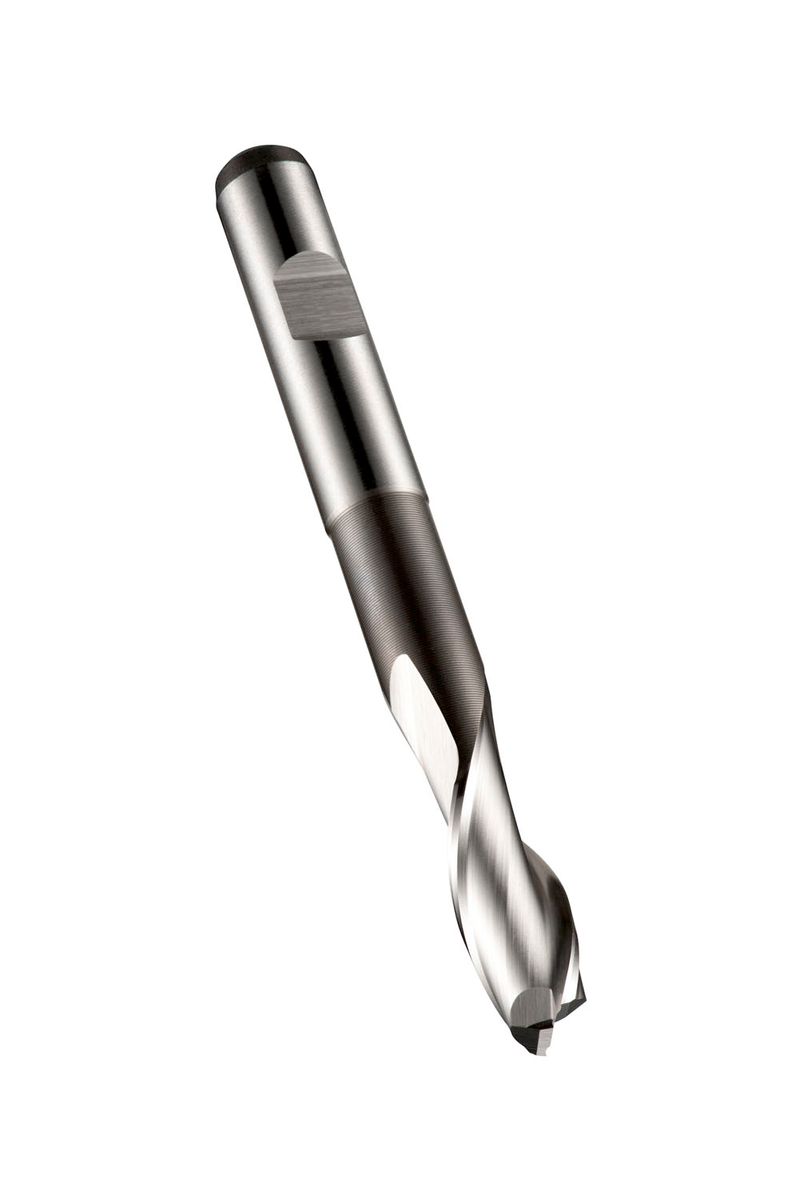

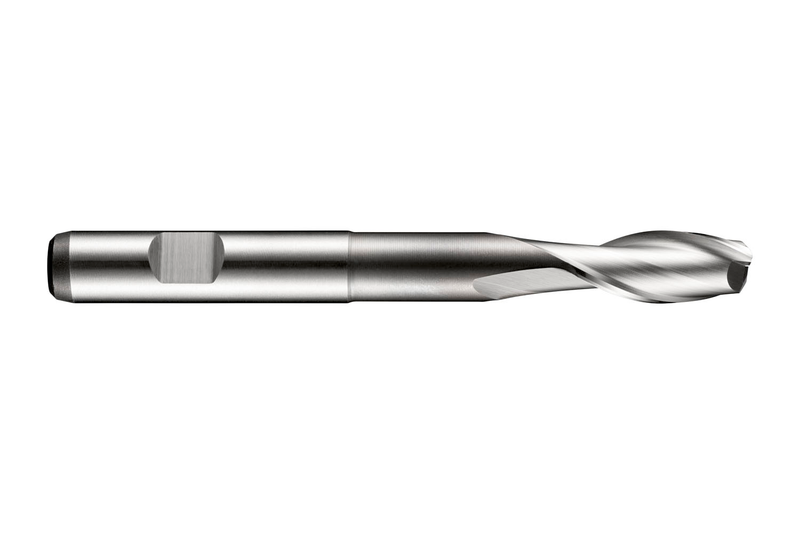

Fraise-scie série courte à 2 dents, diamètre 3mm avec une longueur de coupe de 8mm, longueur totale de 56mm et longueur utile de 20mm avec dégagement, selon la norme DORMER, avec queue Weldon 6mm, HSS-E au cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1353.0
GradeLumineux
Product Number5984634
Product FamilyC135

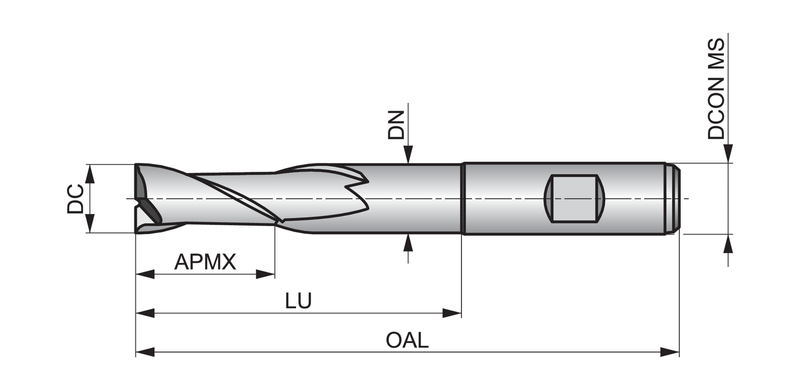

Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)2.2047"
Overall Length — mm (OAL)56.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number57629
EAN7320760057629
File Type Download
C1353.0 — Line Drawing PDF Download
