UGC DOR5984638
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.66 CAD - $41.66 CAD
$41.66 CAD
$41.66 CAD - $41.66 CAD
$41.66 CAD

Vendu en lots de : 1

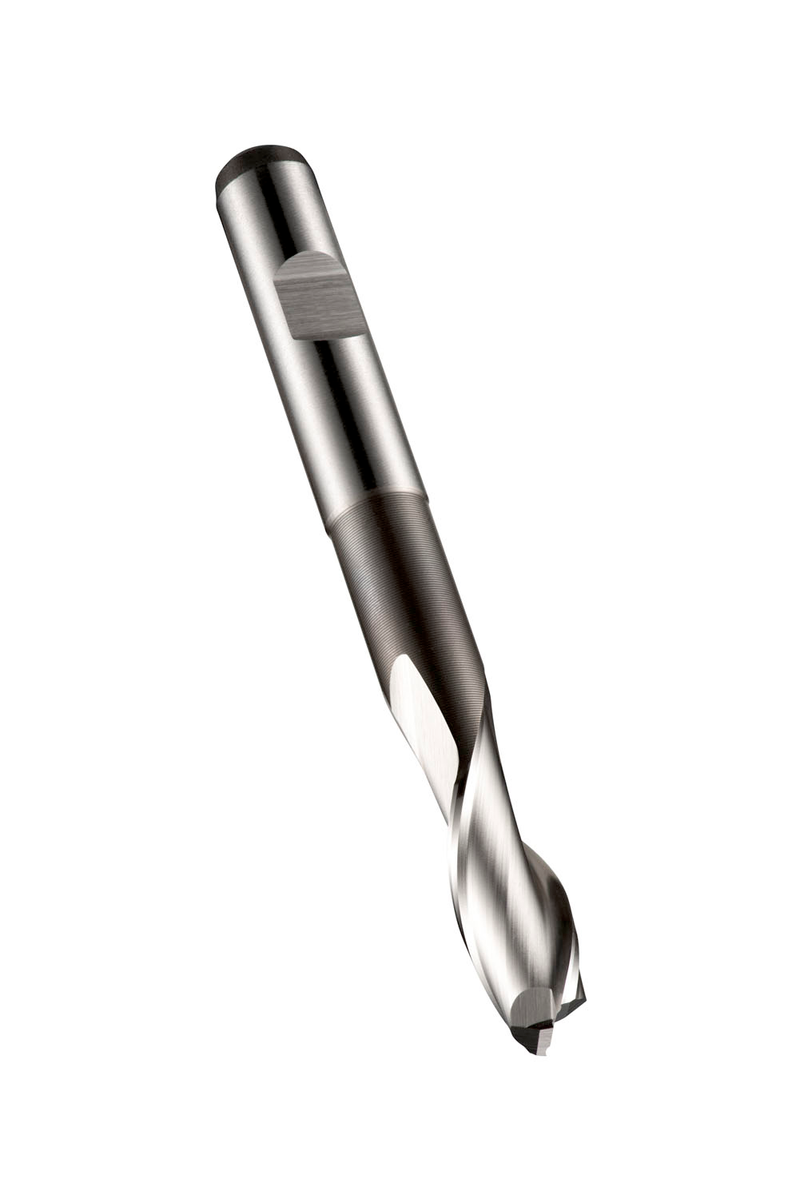

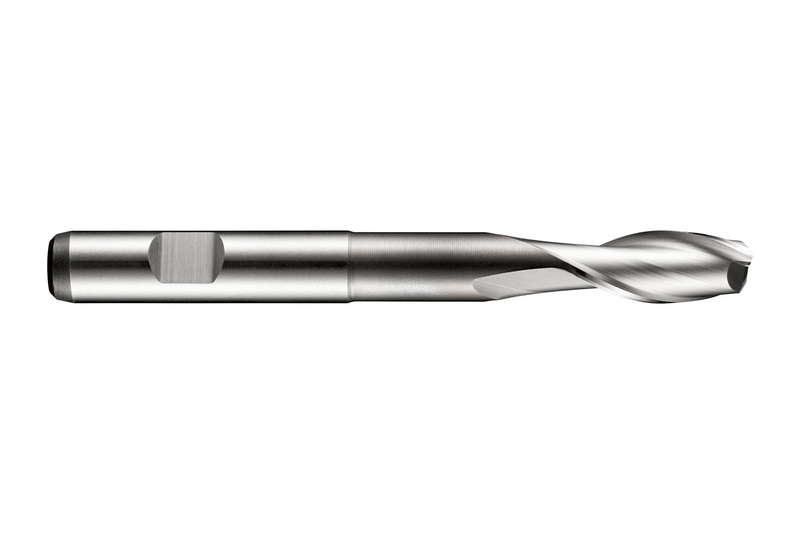

Fraise 2 tailles à queue cylindrique, série courte, diamètre 4mm, longueur de coupe 11mm, longueur totale 63mm et longueur utile 27mm avec dégagement, selon la norme DORMER avec une queue Weldon 6mm, HSS-E cobalt avec finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage de rainures dans les aciers à usinabilité améliorée et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1354.0
GradeLumineux
Product Number5984638
Product FamilyC135
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm

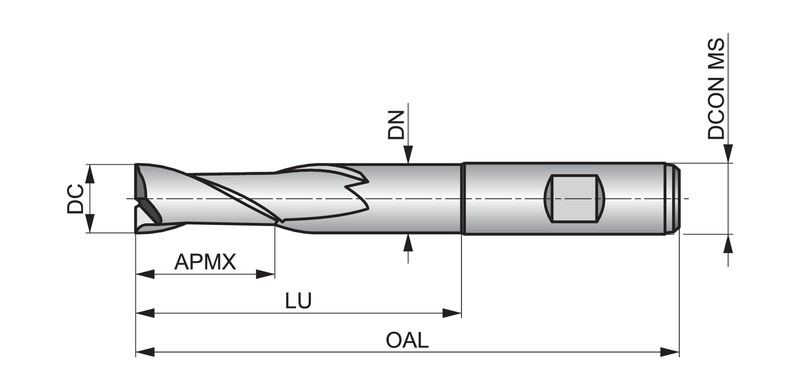

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Usable Length — mm (LU)27.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number57643
EAN7320760057643
File Type Download
C1354.0 — Line Drawing PDF Download
