UGC DOR5984644
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.64 CAD - $52.64 CAD
$52.64 CAD
$52.64 CAD - $52.64 CAD
$52.64 CAD

Vendu en lots de : 1

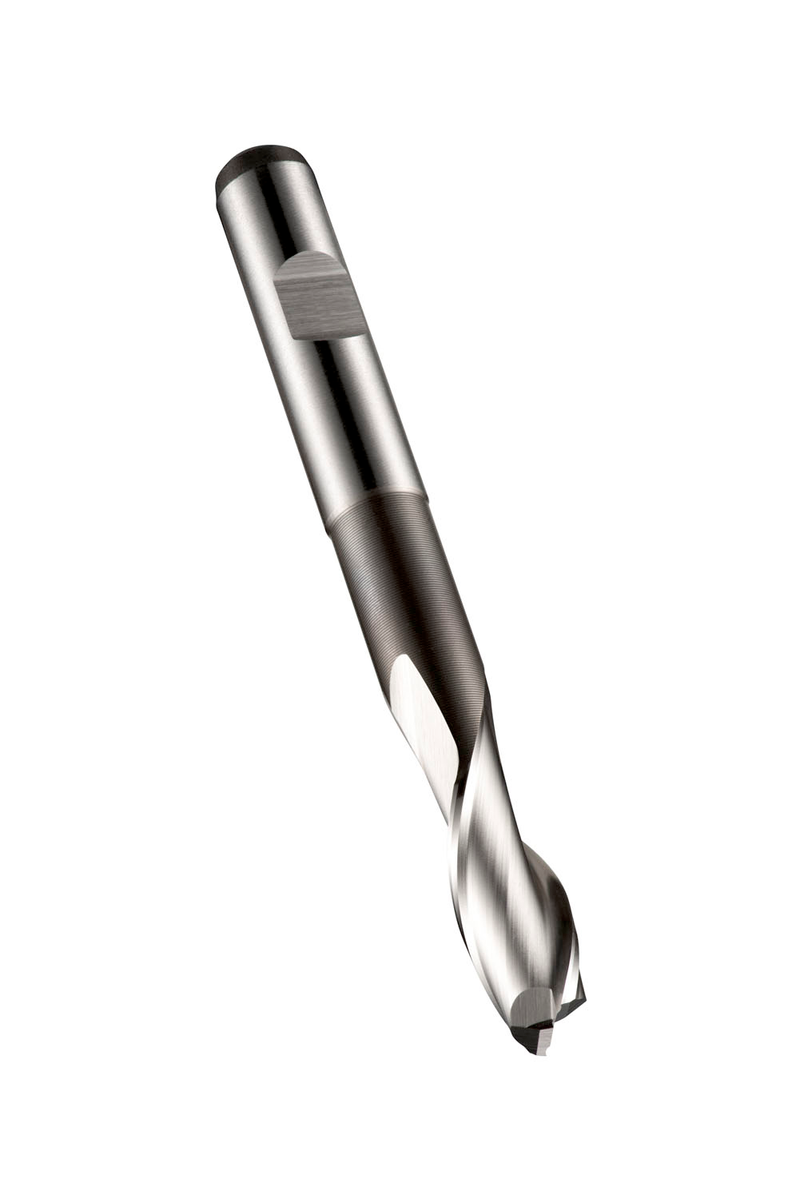

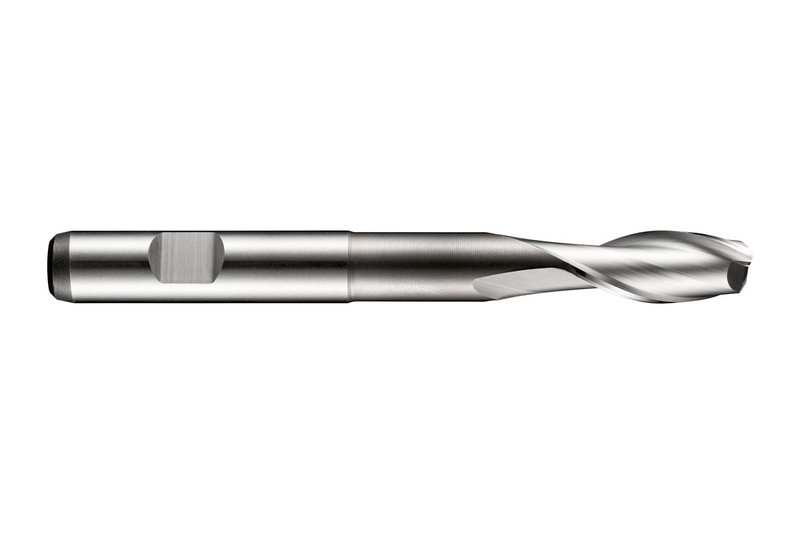

Fraise 2 tailles queue cylindrique série courte de 8mm de diamètre, 19mm de longueur de coupe, 88mm de longueur totale et 48mm de longueur utile avec dégagement de collet, conforme à la norme DORMER avec une queue Weldon de 10mm, en HSS-E cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage de rainures dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1358.0
GradeLumineux
Product Number5984644
Product FamilyC135
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

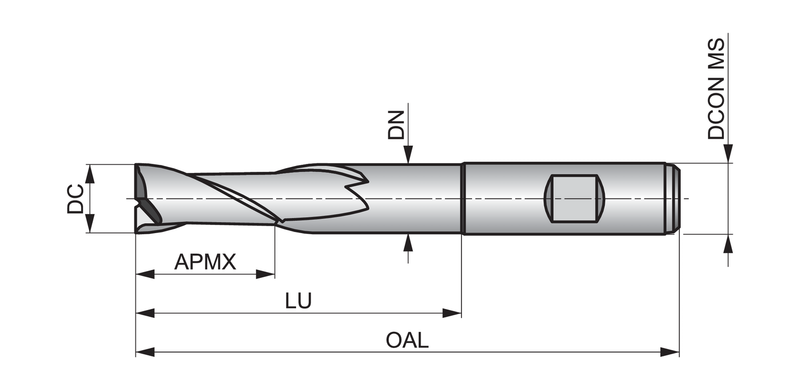

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Usable Length — mm (LU)48.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue à tenon Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number57681
EAN7320760057681
File Type Download
C1358.0 — Line Drawing PDF Download
