UGC DOR5984645
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.09 CAD - $46.09 CAD
$46.09 CAD
$46.09 CAD - $46.09 CAD
$46.09 CAD

Vendu en lots de : 1

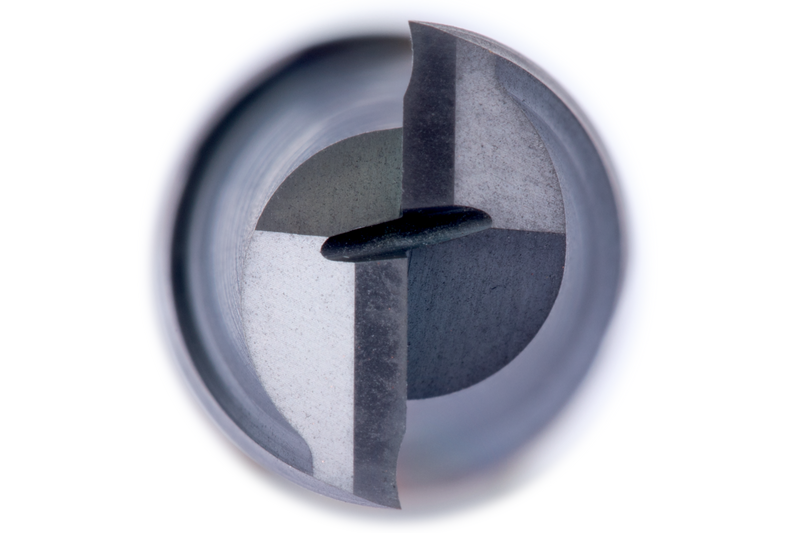

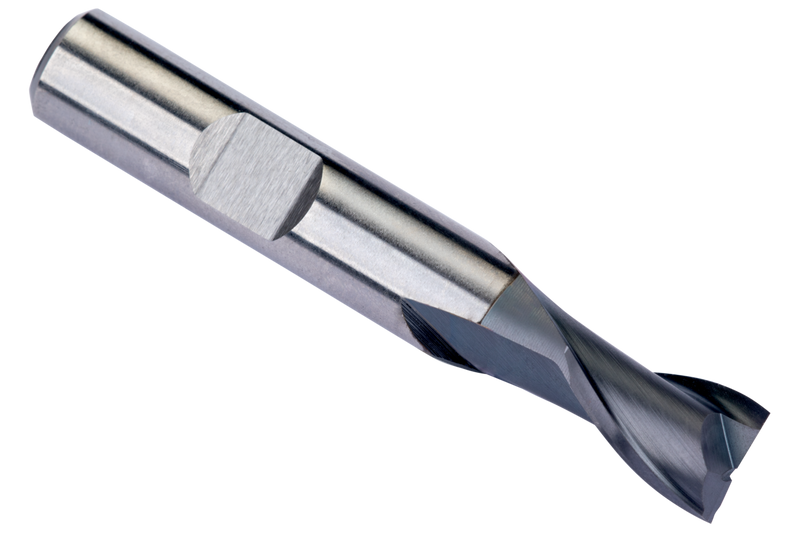

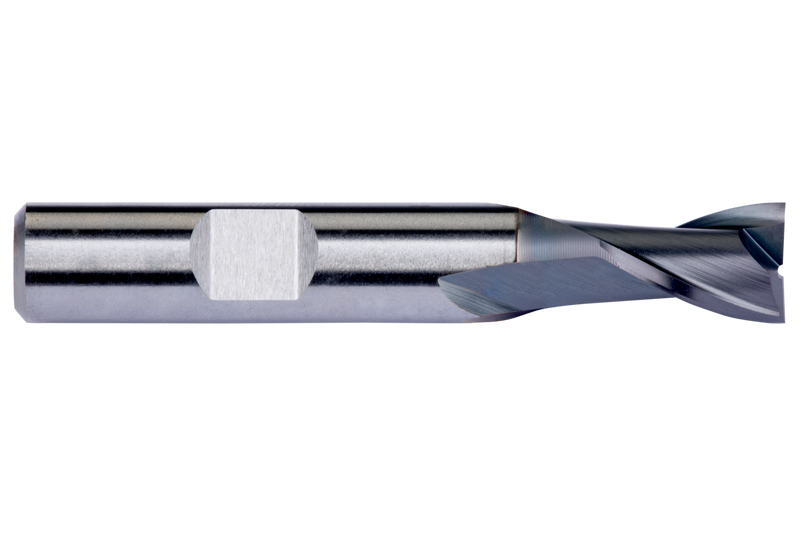

Fraise à rainurer à deux lèvres série courte, diamètre 8 mm, longueur de coupe 11 mm et longueur totale 61 mm, selon la norme DIN 327 D avec queue Weldon 10 mm, HSS-E en poudre métallurgique avec revêtement TiCN, hélice 30° et angle de dépouille 12° pour le surfaçage, le rainurage et l'usinage en plongée dans l'acier au carbone et allié de décolletage, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1268.0
GradeTiCN
Product Number5984645
Product FamilyC126
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.4016"
Overall Length — mm (OAL)61.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number354186
EAN7320760354186
File Type Download
C1268.0 — Line Drawing PDF Download
