UGC DOR5984648
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.03 CAD - $56.03 CAD
$56.03 CAD
$56.03 CAD - $56.03 CAD
$56.03 CAD

Vendu en lots de : 1

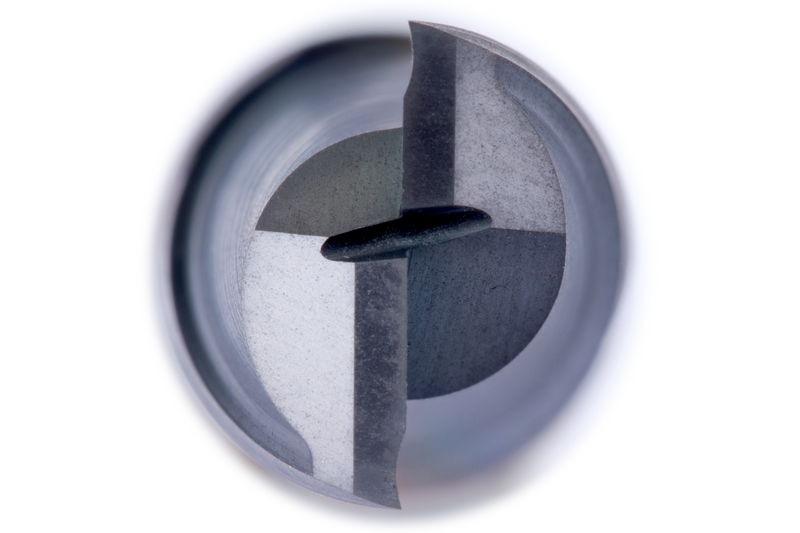

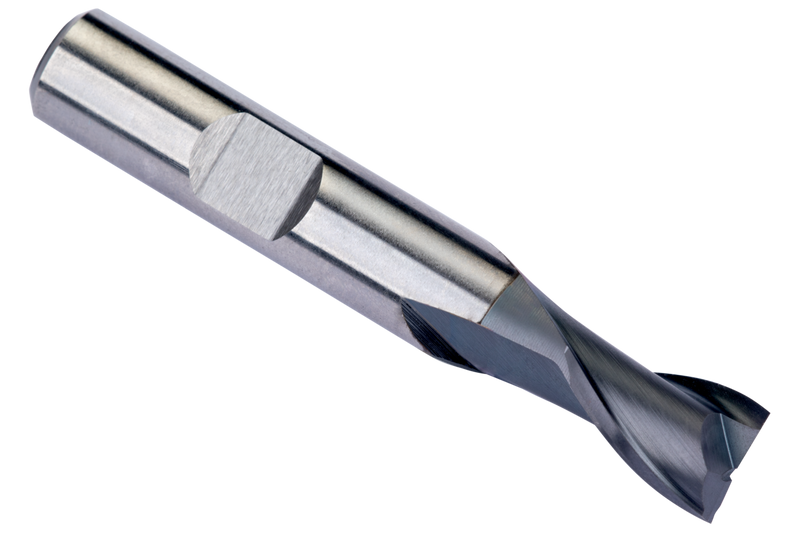

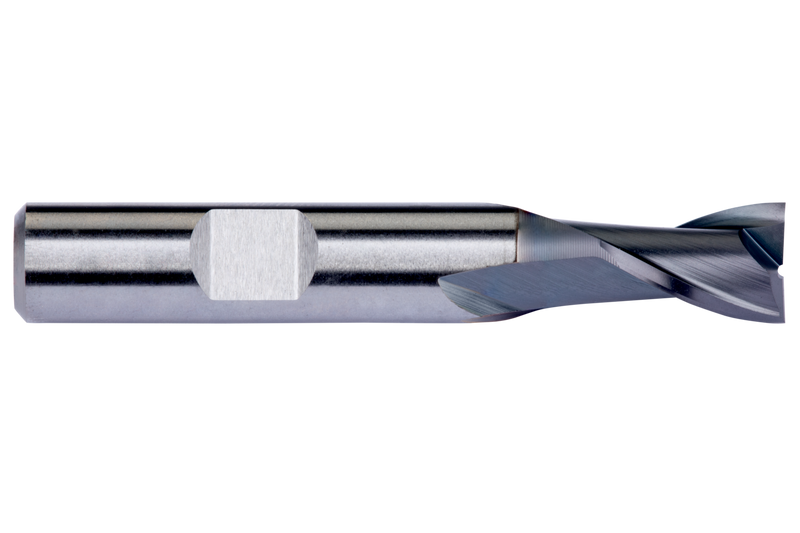

Fraise-scie extra courte à 2 dents, diamètre 9 mm, longueur de coupe 11 mm et longueur totale 61 mm, conforme à la norme DIN 327 D avec une queue Weldon de 10 mm, en HSS-E métallurgie des poudres avec revêtement TiCN, hélice à 30° et angle de dépouille à 12° pour le fraisage d'épaulement, le fraisage de rainures et le surfaçage dans les aciers à usinabilité améliorée, les aciers au carbone et alliés, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1269.0
GradeTiCN
Product Number5984648
Product FamilyC126
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.4016"
Overall Length — mm (OAL)61.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number354209
EAN7320760354209
File Type Download
C1269.0 — Line Drawing PDF Download
