UGC DOR5984664
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.49 CAD - $45.49 CAD
$45.49 CAD
$45.49 CAD - $45.49 CAD
$45.49 CAD

Vendu en lots de : 1

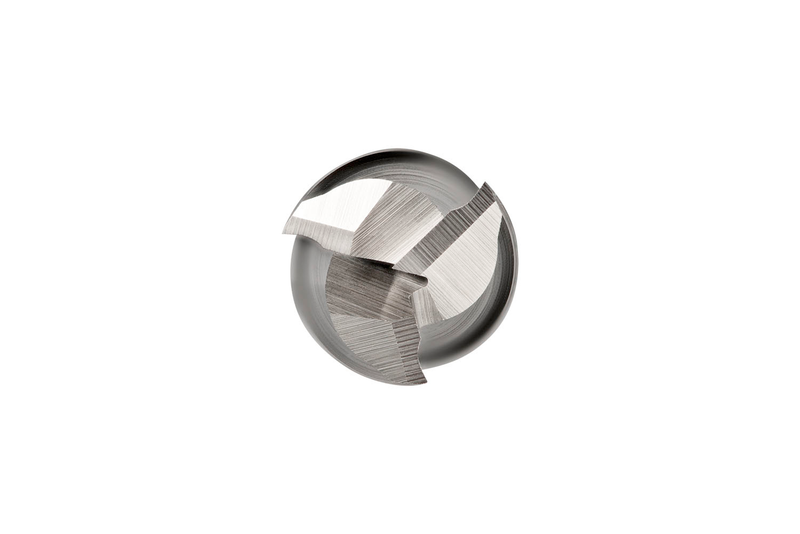

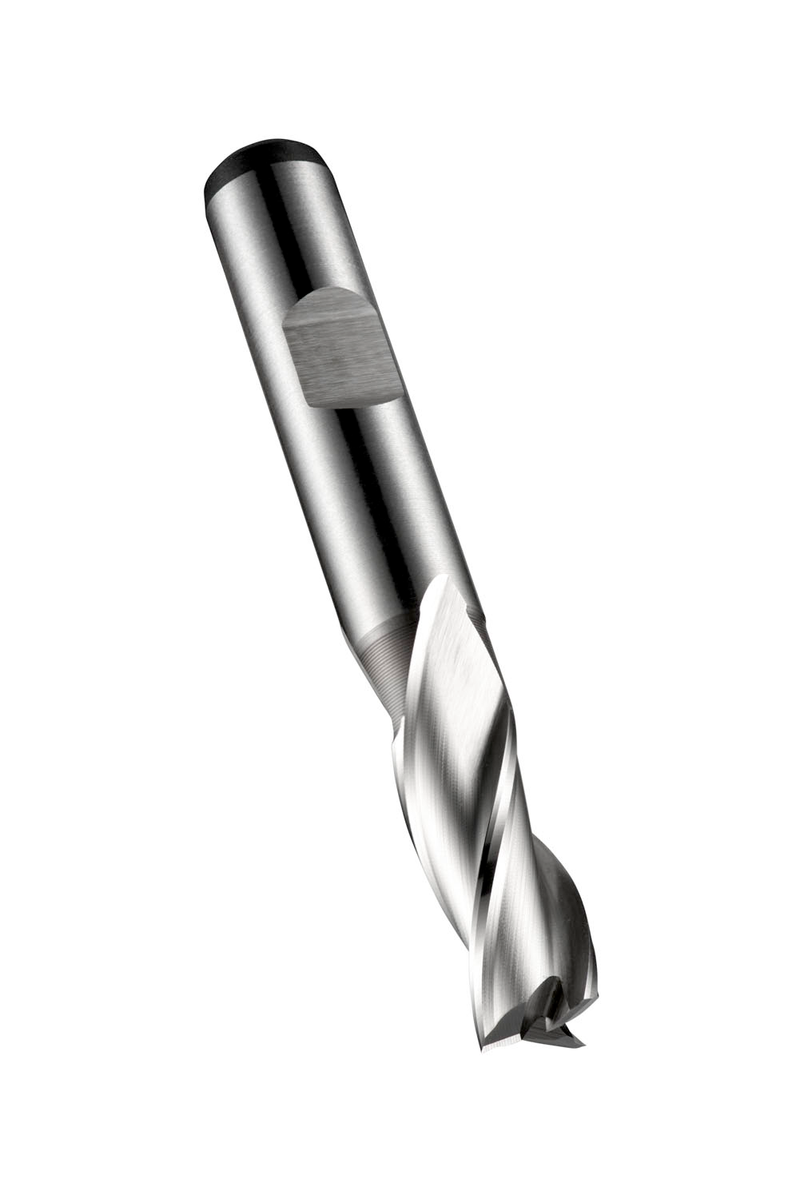

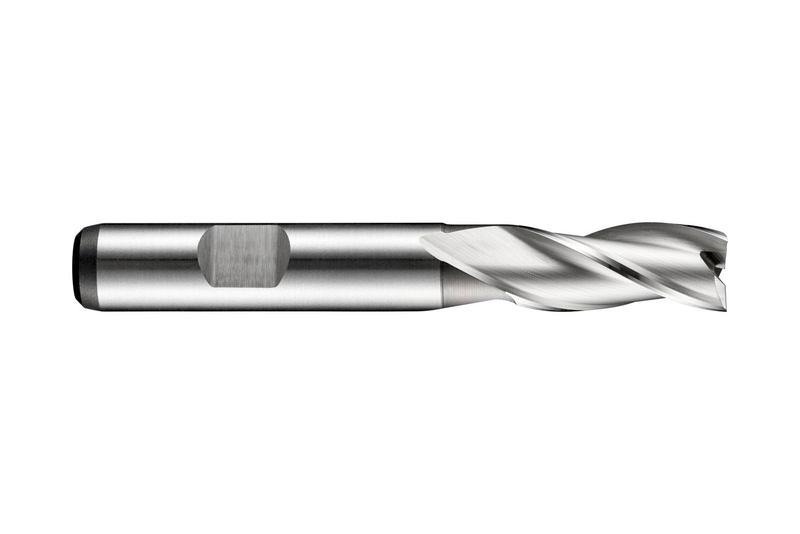

Fraise-scie courte à 3 dents, diamètre 4mm avec 11mm de longueur de coupe et 55mm de longueur totale, selon la norme DIN 844 K avec une queue Weldon de 6mm, HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulements, le fraisage de rainures et le surfaçage en acier à usinage libre et en acier au carbone ordinaire, cuivre ou alliages de cuivre et alliages à haute température à base de Fe, de Ni et de Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3054.0
GradeLumineux
Product Number5984664
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572429
EAN7320760572429
File Type Download
C3054.0 — Line Drawing PDF Download
