UGC DOR5984667
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$558.70 CAD - $558.70 CAD
$558.70 CAD
$558.70 CAD - $558.70 CAD
$558.70 CAD

Vendu en lots de : 1

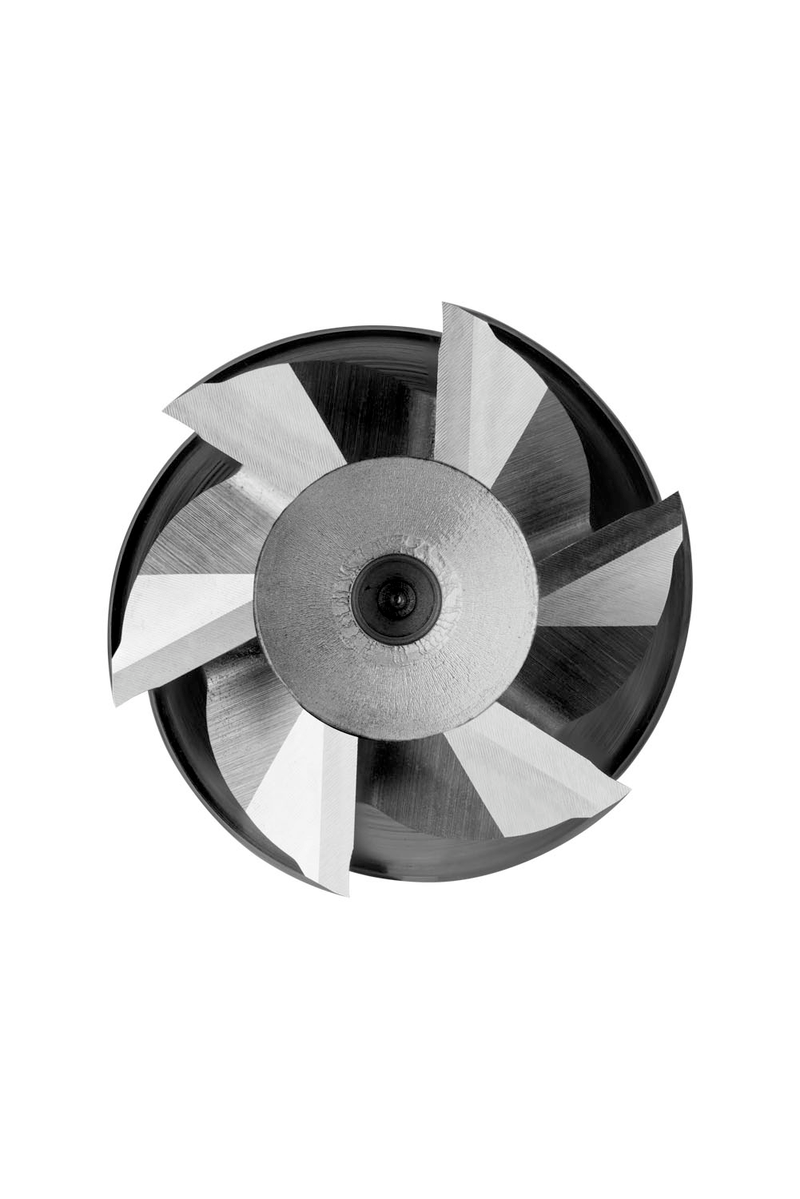

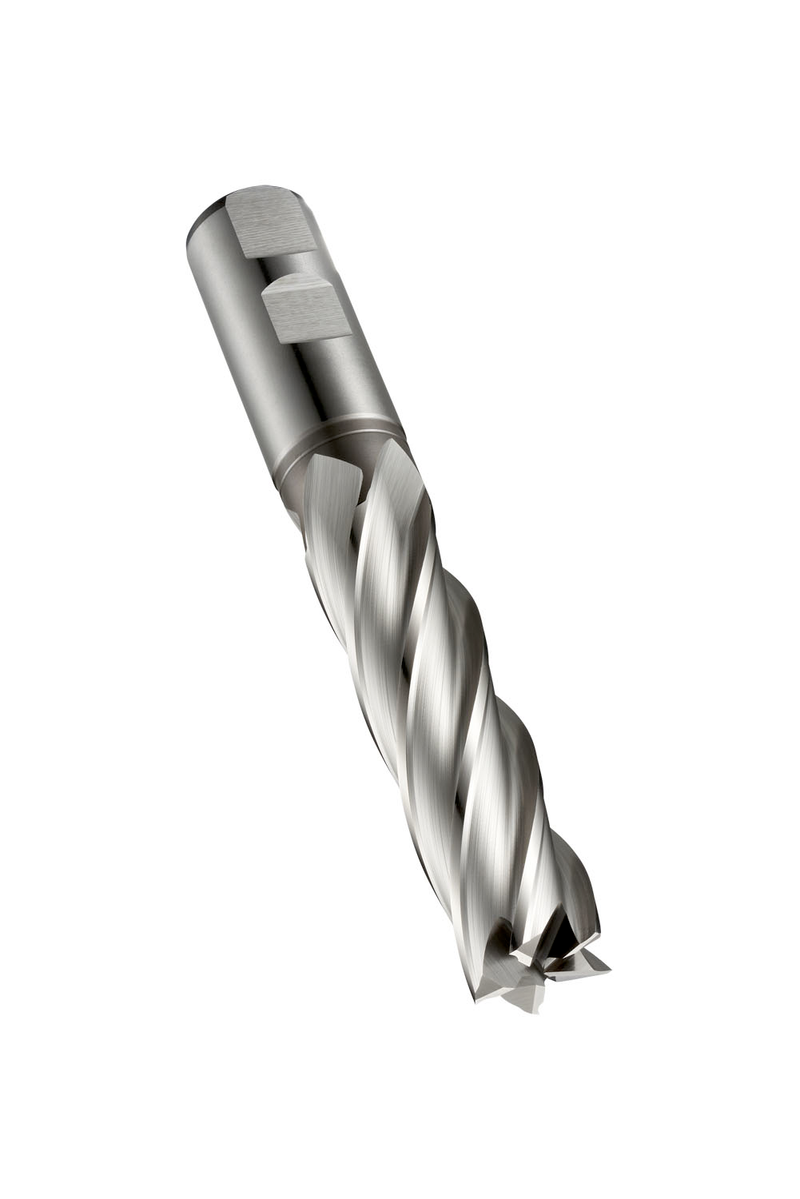

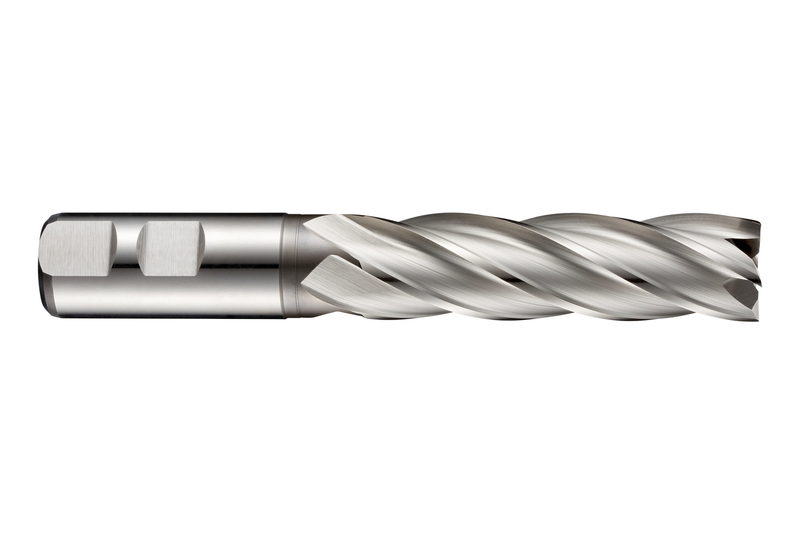

Fraise longue 6 dents diamètre 40mm avec une longueur de coupe de 125mm, une longueur totale de 217mm et un dégagement de 146,5mm, conforme à la norme DIN 844 L avec queue Weldon 40mm, en HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulement et le fraisage de rainures dans les aciers de décolletage et les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C27340.0
GradeLumineux
Product Number5984667
Product FamilyC273
Insert Geometry
Depth of Cut Max — in (APMX)4.9213"
Depth of Cut Max — mm (APMX)125.0 mm
Dimensions
Cutting Diameter — in (DC)1.5748"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)8.5433"
Overall Length — mm (OAL)217.0 mm
Usable Length — mm (LU)146.5 mm
Connection Dia. — in (DCON)1.5748"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number609309
EAN7320760609309
File Type Download
C27340.0 — Line Drawing PDF Download
