UGC DOR5984676
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.69 CAD - $55.69 CAD
$55.69 CAD
$55.69 CAD - $55.69 CAD
$55.69 CAD

Vendu en lots de : 1

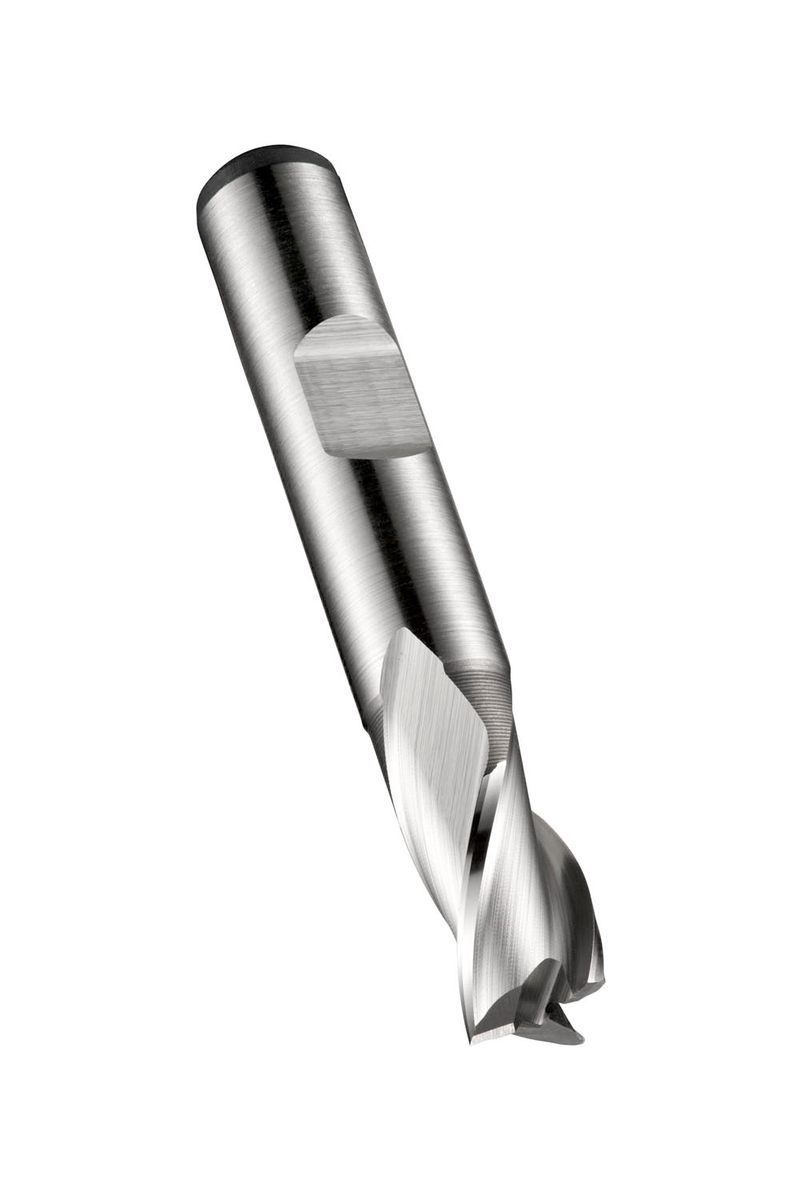

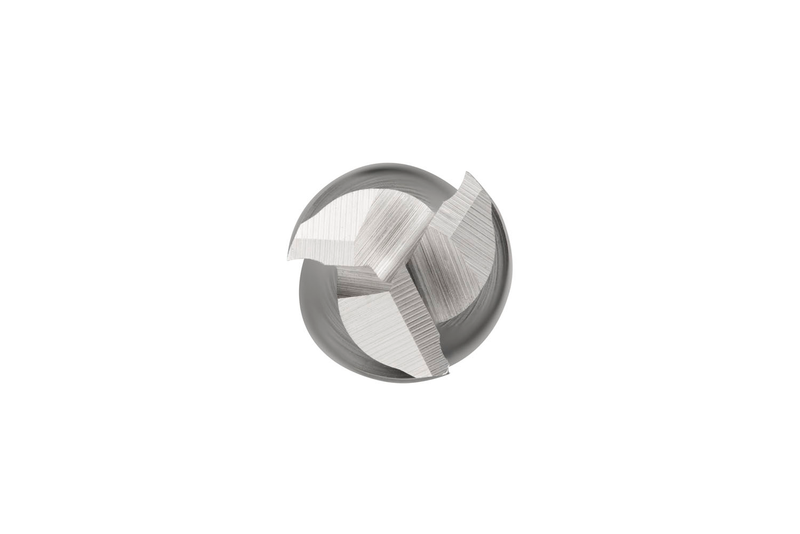

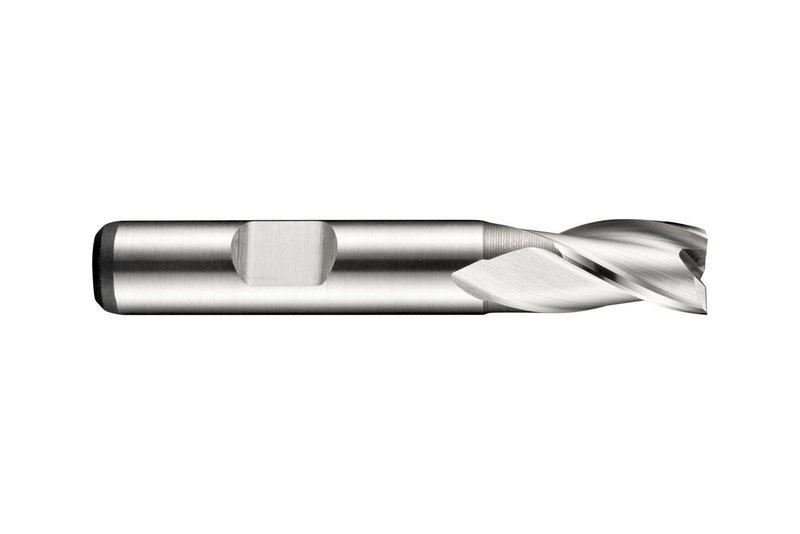

Fraise à rainurer à queue cylindrique, série extra-courte, 3 dents, diamètre 10 mm, longueur de coupe 13 mm, longueur totale 63 mm, longueur utile 22,5 mm avec dégagement, selon la norme DIN 327 D, avec queue Weldon 10 mm, HSS-E métallurgie des poudres, finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30610.0
GradeLumineux
Product Number5984676
Product FamilyC306
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Usable Length — mm (LU)22.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number572542
EAN7320760572542
File Type Download
C30610.0 — Line Drawing PDF Download
