UGC DOR5984686
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.00 CAD - $66.00 CAD
$66.00 CAD
$66.00 CAD - $66.00 CAD
$66.00 CAD

Vendu en lots de : 1

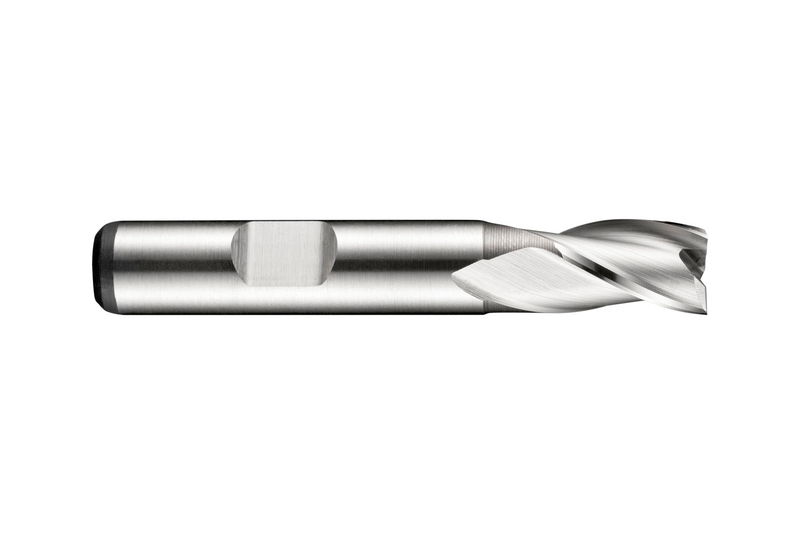

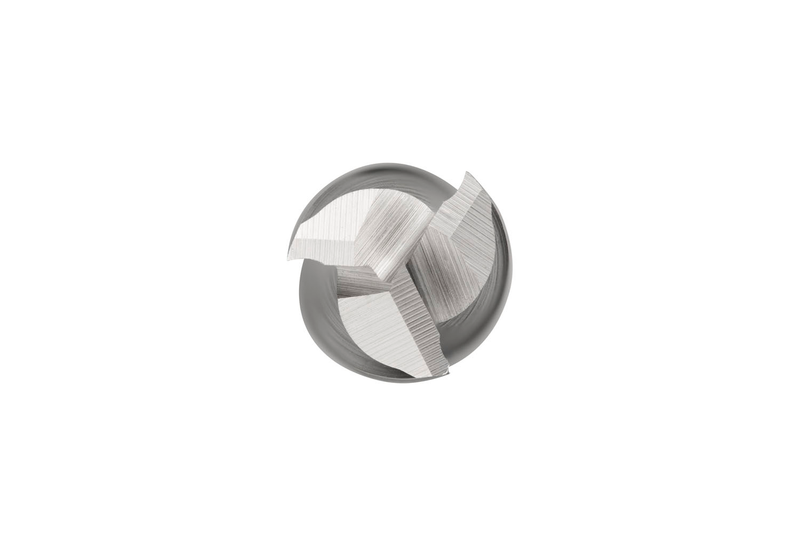

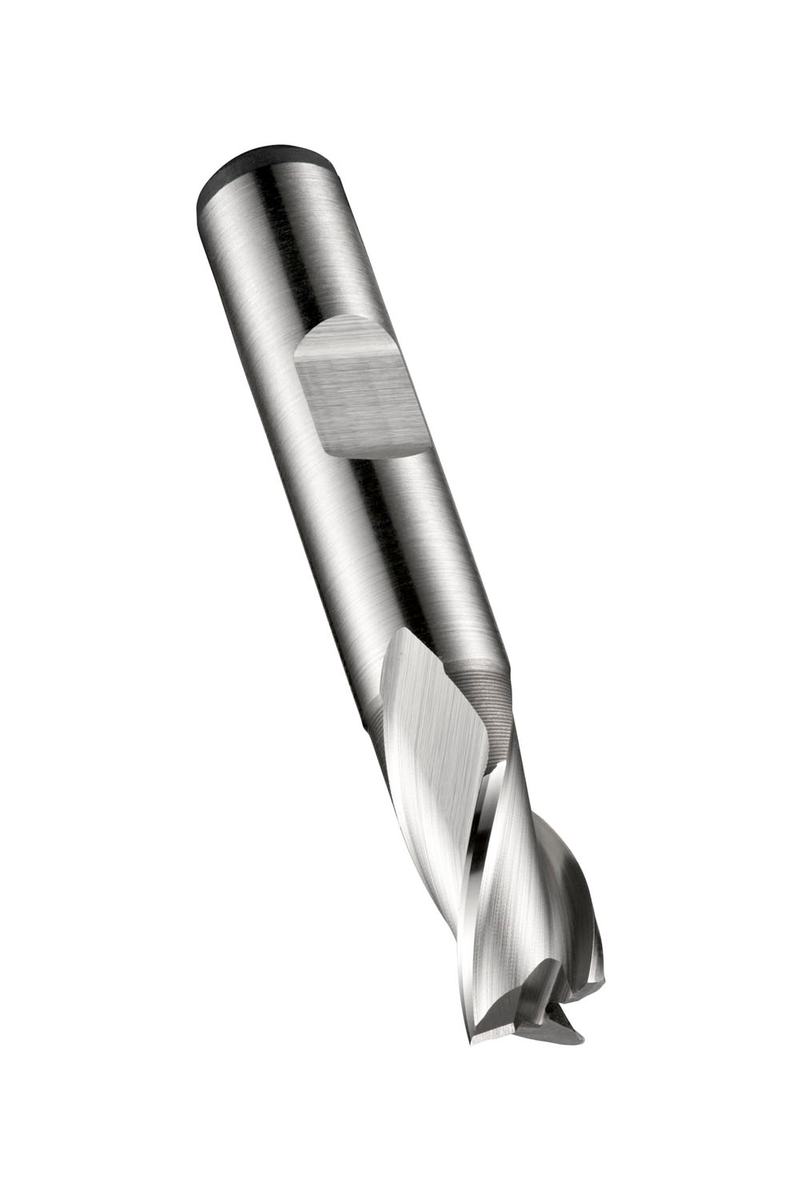

Fraise-scie extra courte à 3 dents, diamètre 12mm avec 16mm de longueur de coupe, longueur totale 73mm et portée 27,5mm avec dégagement de col, selon la norme DIN 327 D avec une queue Weldon de 12mm, en HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulements, le fraisage de fentes et le ramping dans l'acier de décolletage et l'acier au carbone non allié ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30612.0
GradeLumineux
Product Number5984686
Product FamilyC306
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Usable Length — mm (LU)27.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number572573
EAN7320760572573
File Type Download
C30612.0 — Line Drawing PDF Download
