UGC DOR5984690
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$196.10 CAD - $196.10 CAD
$196.10 CAD
$196.10 CAD - $196.10 CAD
$196.10 CAD

Vendu en lots de : 1

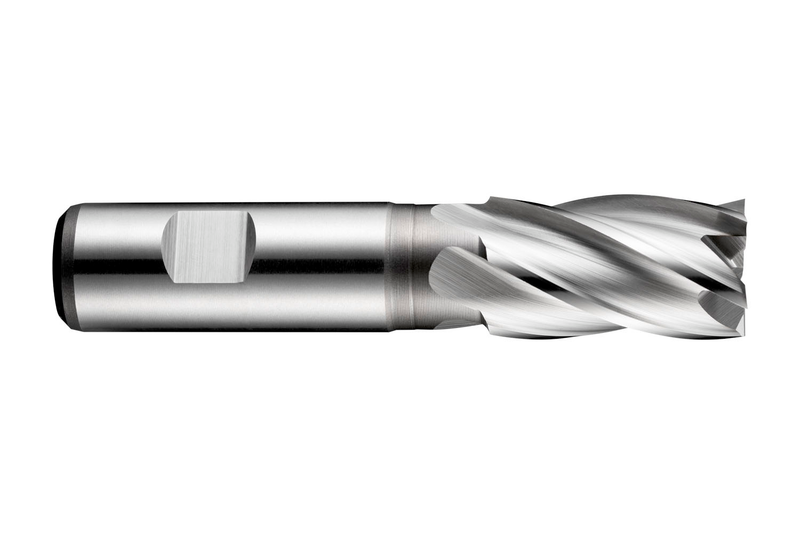

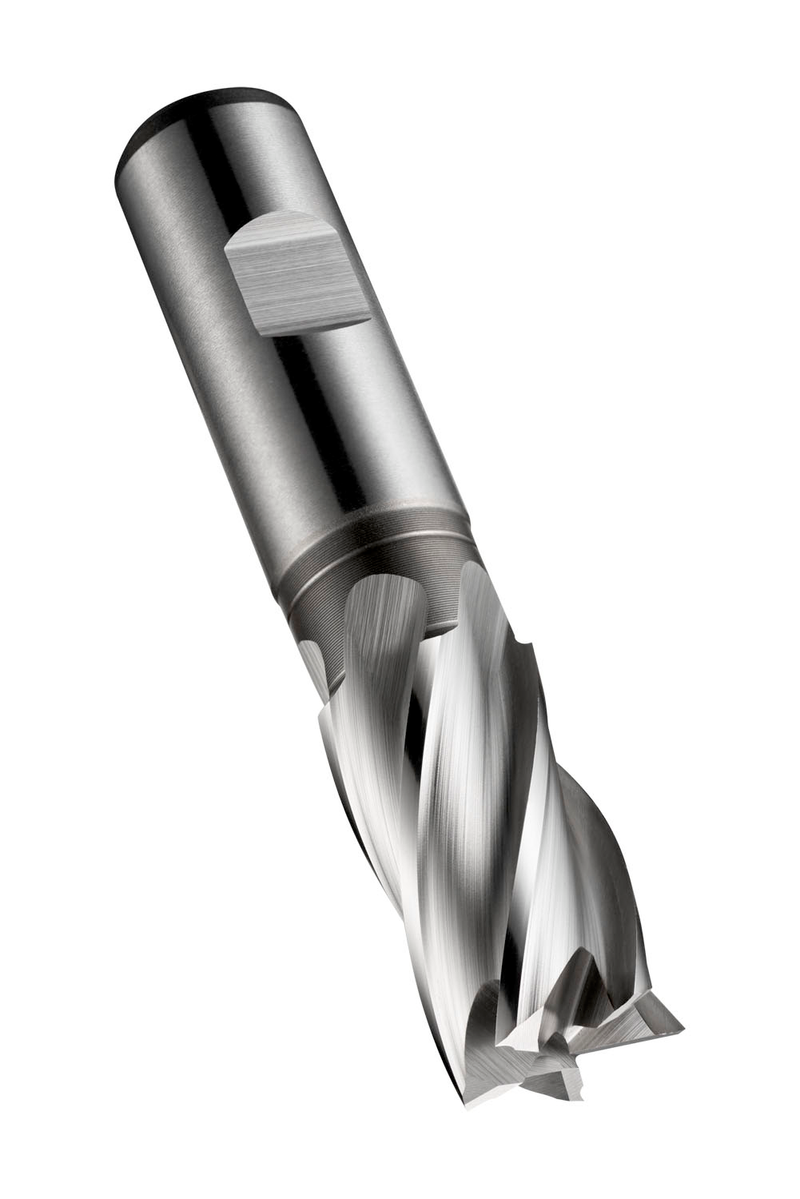

Fraise en bout série courte 5 dents, diamètre 23mm avec 38mm de longueur de coupe, 104mm de longueur totale et 53,5mm de portée avec dégagement de collet, selon la norme DIN 844 K avec une queue Weldon de 20mm, HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de dépouille à 12° pour le surfaçage, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier de décolletage et l'acier au carbone non allié ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C24723.0
GradeLumineux
Product Number5984690
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

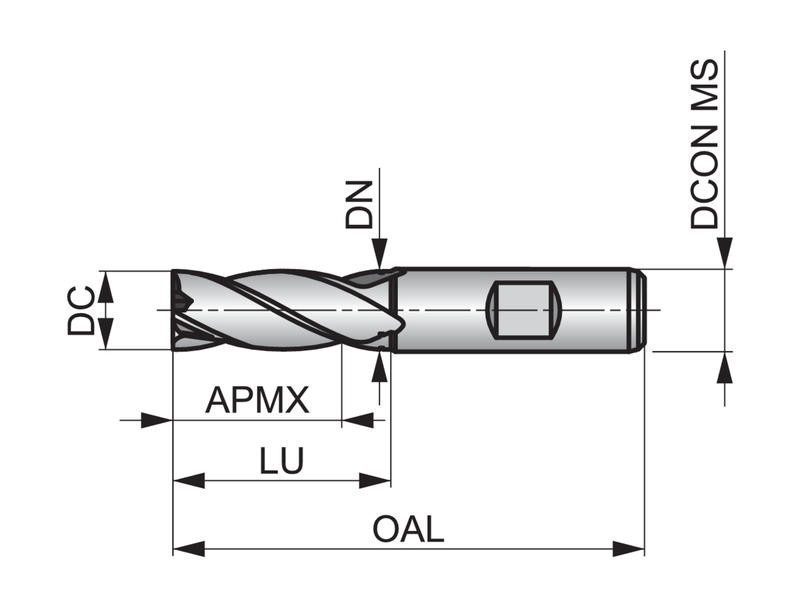

Dimensions
Cutting Diameter — in (DC)0.9055"
Cutting Diameter — mm (DC)23.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)53.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm

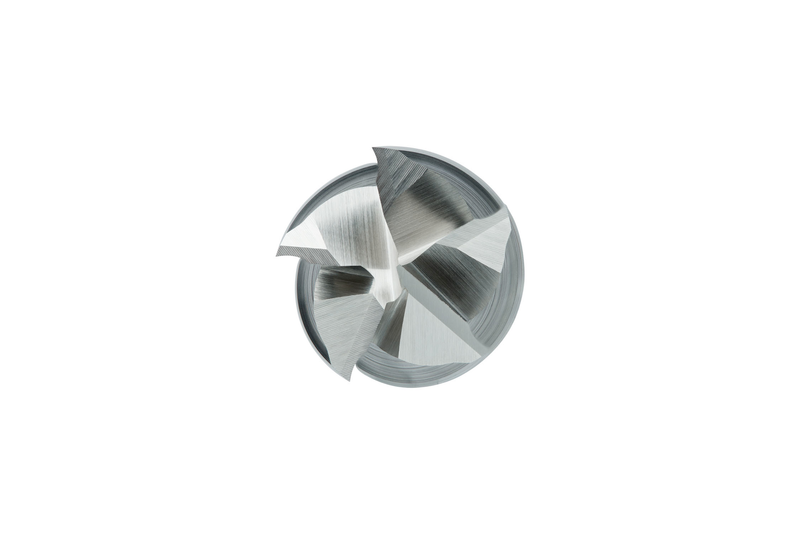

Number of Flutes (NOF)5
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number609347
EAN7320760609347
File Type Download
C24723.0 — Line Drawing PDF Download
