C2473/8
C2473/8
C2473/8
C2473/8

C2473/8

UGC DOR5984696
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.56 CAD - $56.56 CAD
$56.56 CAD
$56.56 CAD - $56.56 CAD
$56.56 CAD

Vendu en lots de : 1

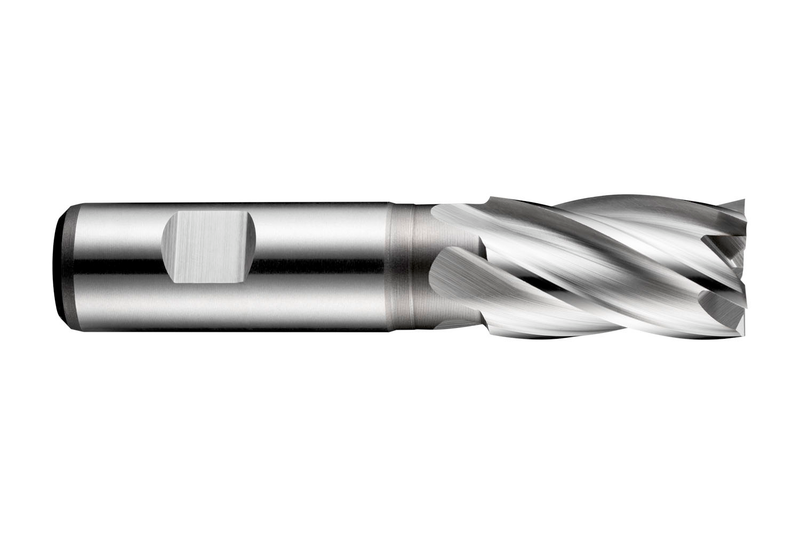

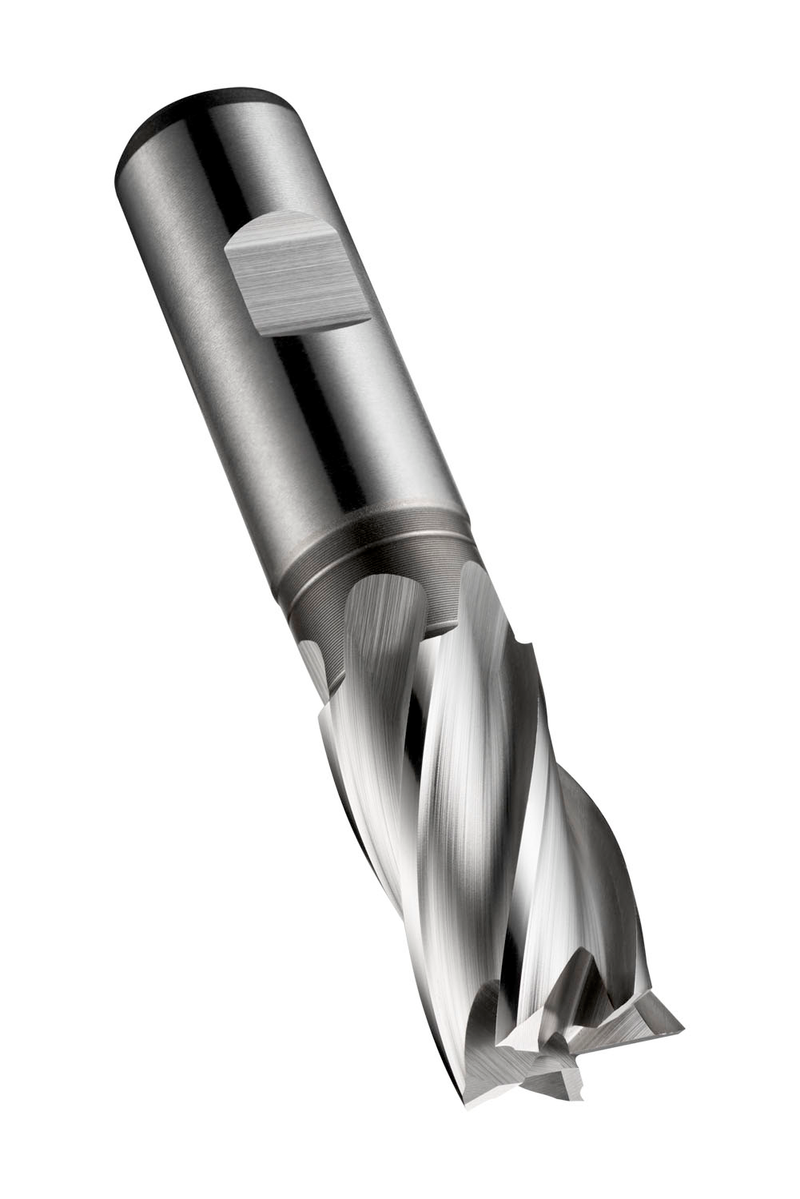

Fraise en bout série courte 4 dents, diamètre 3/8" avec une longueur de coupe de 22 mm, une longueur totale de 72 mm et une portée de 31,5 mm avec dégagement de col, selon la norme DIN 844 K avec une queue Weldon de 10 mm, HSS-E métallurgie des poudres finition brillante, hélice à 30° et angle de dépouille à 12° pour le surfaçage, le fraisage de rainures et la plongée dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2473/8
GradeLumineux
Product Number5984696
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.52 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Usable Length — mm (LU)31.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue de Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number640180
EAN7320760640180
File Type Download
C2473/8 — Line Drawing PDF Download
