UGC DOR5984701
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.39 CAD - $49.39 CAD
$49.39 CAD
$49.39 CAD - $49.39 CAD
$49.39 CAD

Vendu en lots de : 1

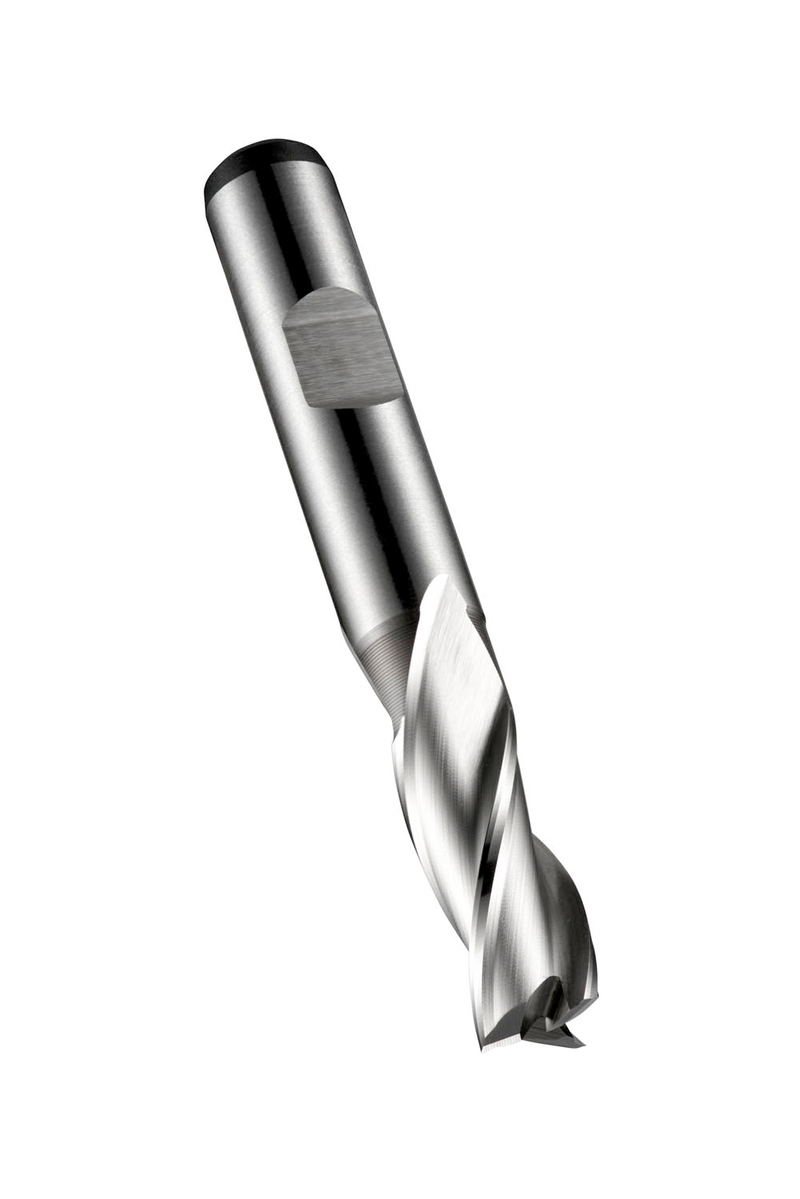

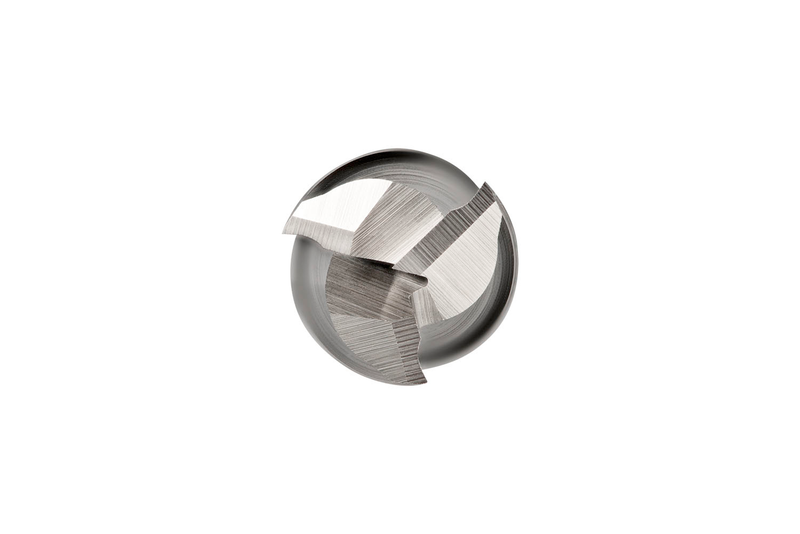

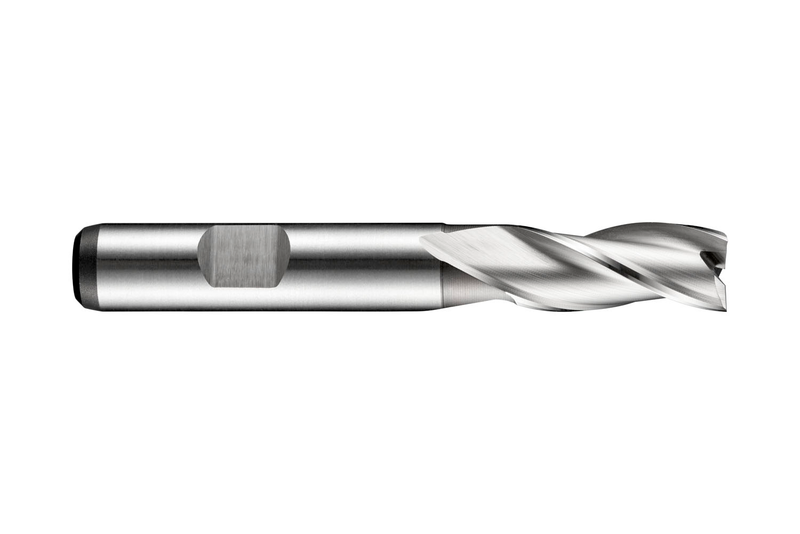

Fraise-scie courte 3 dents, diamètre 4,5 mm, longueur de coupe 11 mm et longueur totale 55 mm, selon la norme DIN 844 K avec une queue Weldon de 6 mm, en HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainures et le surfaçage en pente dans l'acier de décolletage et l'acier au carbone non allié, le cuivre ou les alliages de cuivre et les alliages à haute température à base de Fe, Ni et Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3054.5
GradeLumineux
Product Number5984701
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572436
EAN7320760572436
File Type Download
C3054.5 — Line Drawing PDF Download
