UGC DOR5984707
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$366.30 CAD - $366.30 CAD
$366.30 CAD
$366.30 CAD - $366.30 CAD
$366.30 CAD

Vendu en lots de : 1

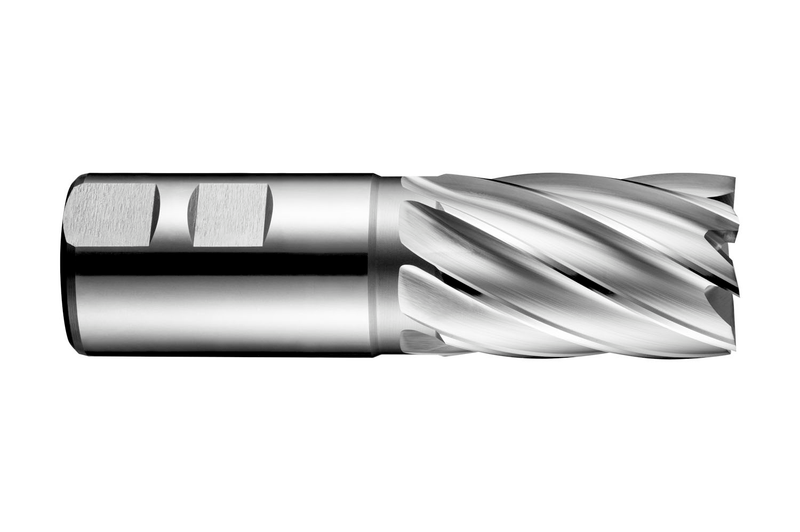

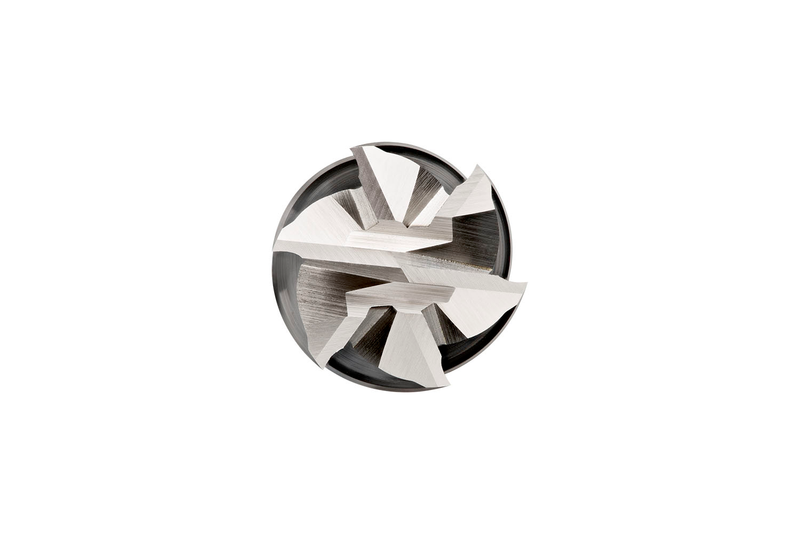

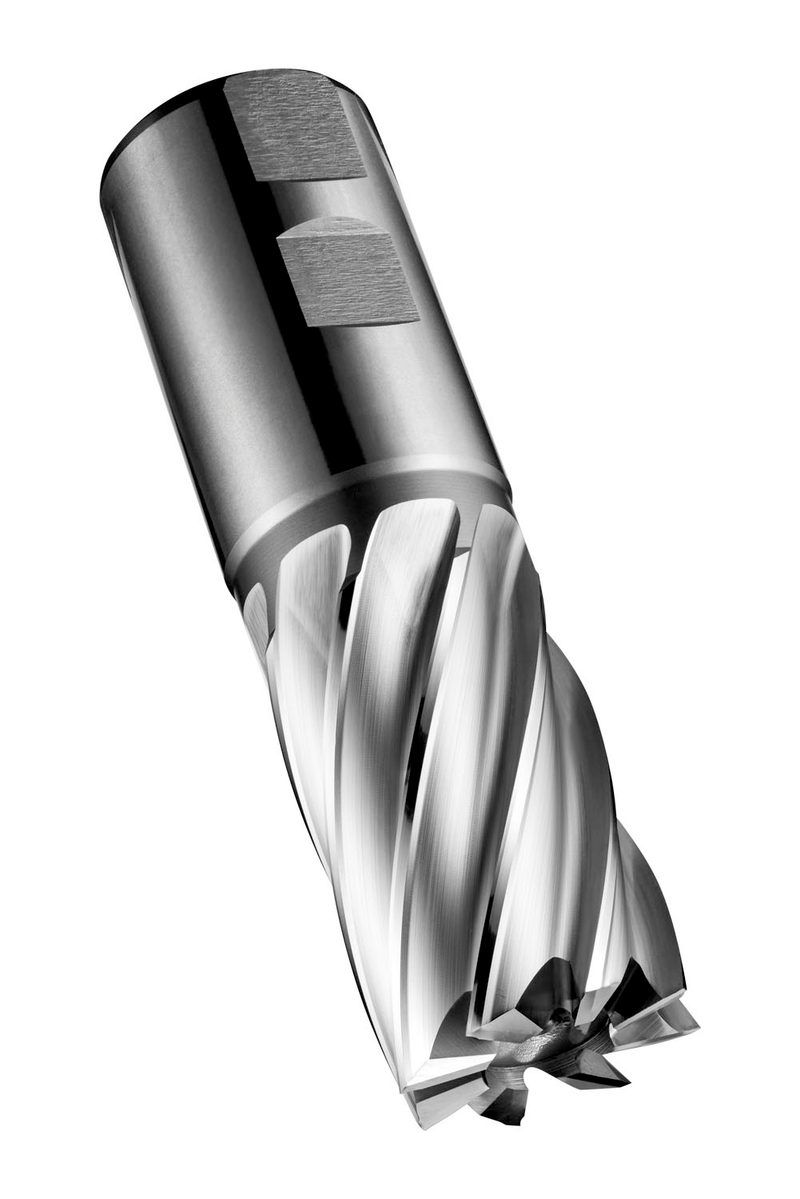

Fraise en bout courte à 6 dents, diamètre 36 mm avec une longueur de coupe de 53 mm, une longueur totale de 133 mm et un dégagement du col de 72,5 mm, selon la norme DIN 844 K avec une queue Weldon de 32 mm, en HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de coupe de 12° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C24736.0
GradeLumineux
Product Number5984707
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)2.0866"
Depth of Cut Max — mm (APMX)53.0 mm
Dimensions
Cutting Diameter — in (DC)1.4173"
Cutting Diameter — mm (DC)36.0 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Usable Length — mm (LU)72.5 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number609378
EAN7320760609378
File Type Download
C24736.0 — Line Drawing PDF Download
