UGC DOR5984724
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.04 CAD - $34.04 CAD
$34.04 CAD
$34.04 CAD - $34.04 CAD
$34.04 CAD

Vendu en lots de : 1

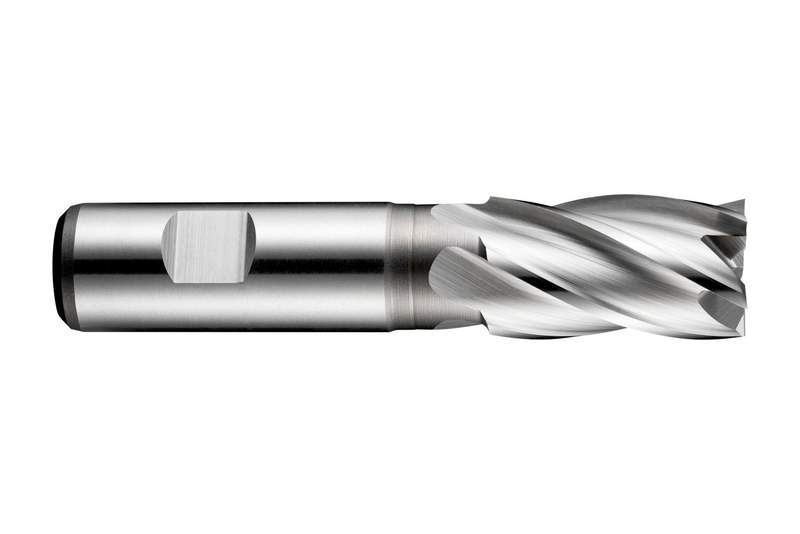

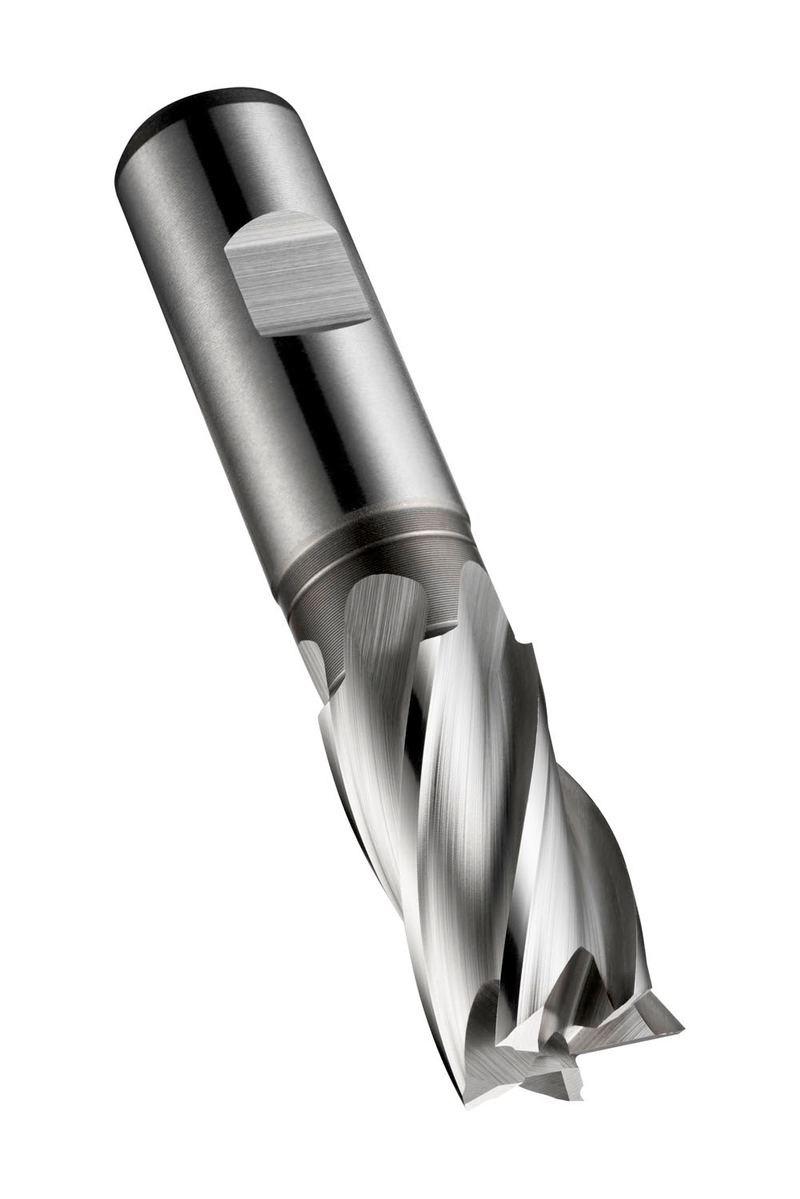

Fraise en bout courte 4 dents, diamètre 5mm, longueur de coupe 13mm et longueur totale 57mm, selon la norme DIN 844 K avec queue Weldon 6mm, en HSS-E métallurgie des poudres, finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2475.0
GradeLumineux
Product Number5984724
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354780
EAN7320760354780
File Type Download
C2475.0 — Line Drawing PDF Download
