UGC DOR5984734
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$218.83 CAD - $218.83 CAD
$218.83 CAD
$218.83 CAD - $218.83 CAD
$218.83 CAD

Vendu en lots de : 1

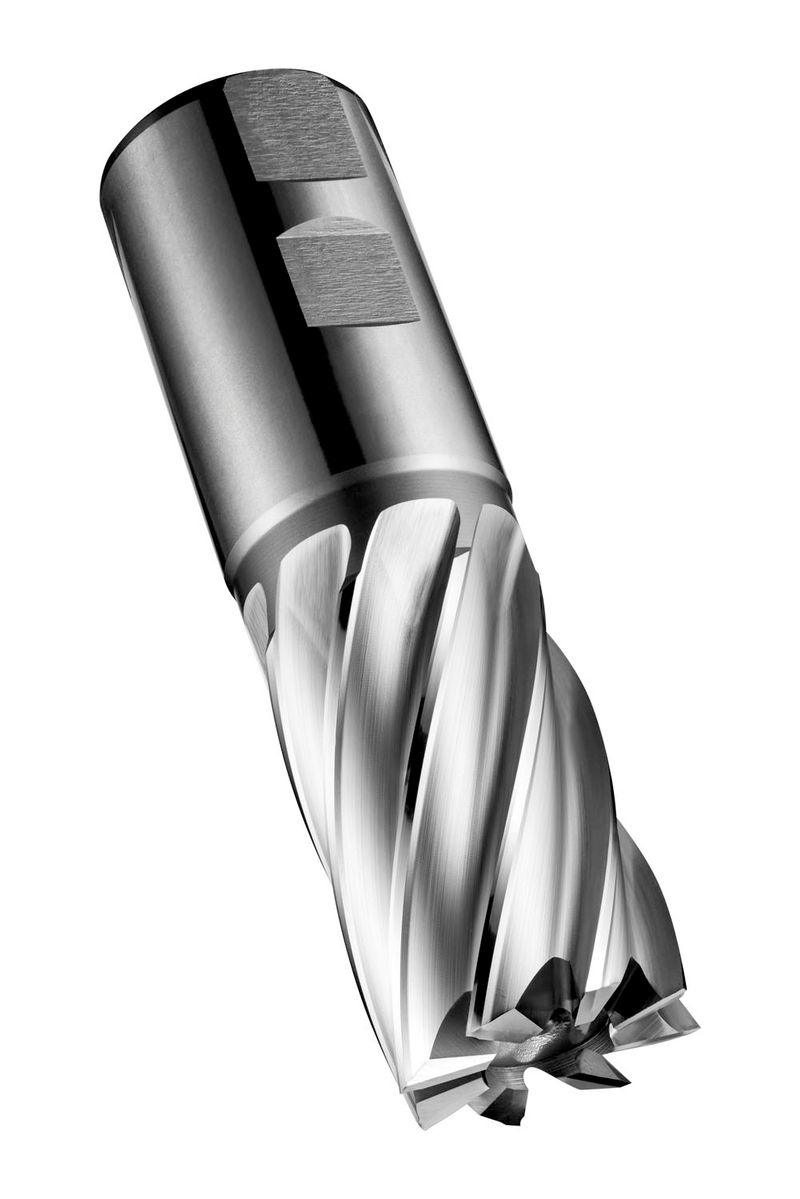

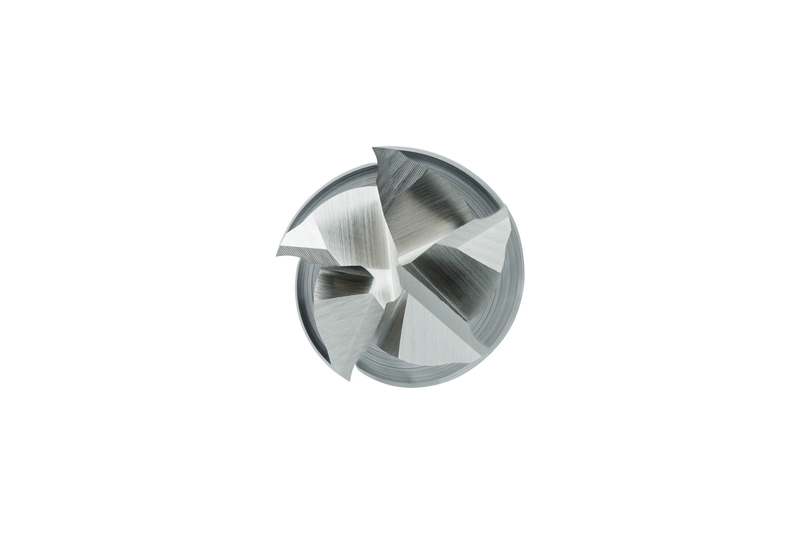

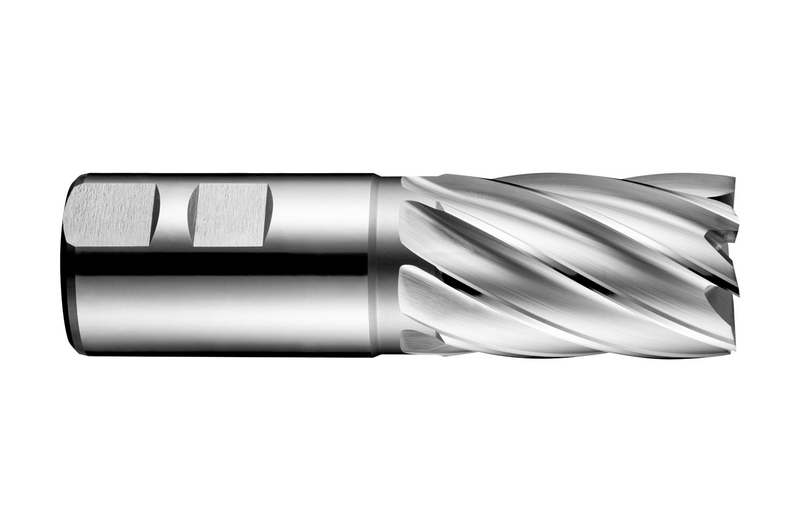

Fraise en bout série courte 5 dents, diamètre 24mm, longueur de coupe 45mm, longueur totale 121mm et portée de 64,5mm avec dégagement, selon la norme DIN 844 K avec queue Weldon 25mm, en HSS-E métallurgie des poudres finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en plongée dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C24724.0
GradeLumineux
Product Number5984734
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)1.7717"
Depth of Cut Max — mm (APMX)45.0 mm
Dimensions
Cutting Diameter — in (DC)0.9449"
Cutting Diameter — mm (DC)24.0 mm
Overall Length — in (OAL)4.7638"
Overall Length — mm (OAL)121.0 mm
Usable Length — mm (LU)64.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)5
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number609354
EAN7320760609354
File Type Download
C24724.0 — Line Drawing PDF Download
