UGC DOR5984739
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$132.00 CAD - $132.00 CAD
$132.00 CAD
$132.00 CAD - $132.00 CAD
$132.00 CAD

Vendu en lots de : 1

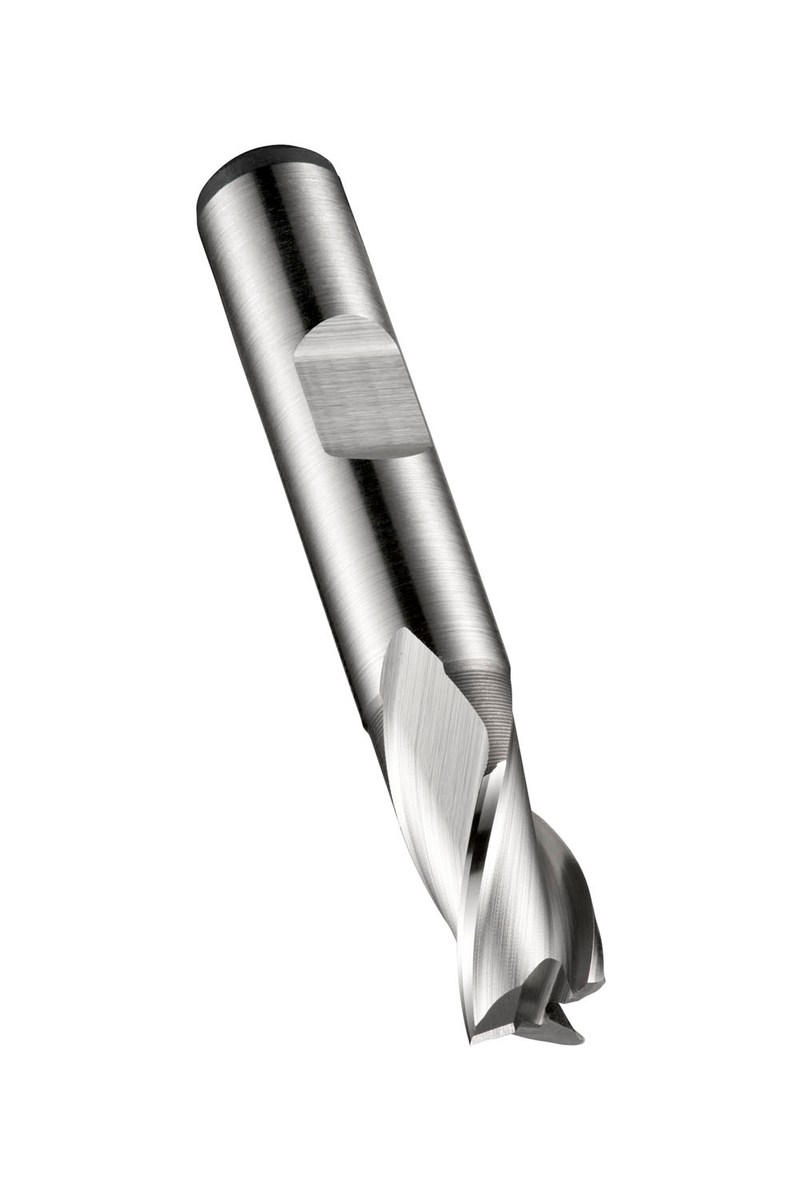

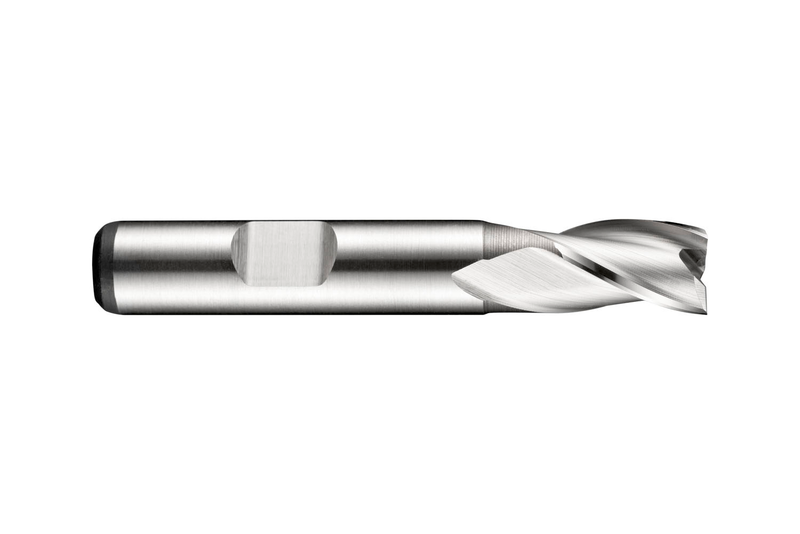

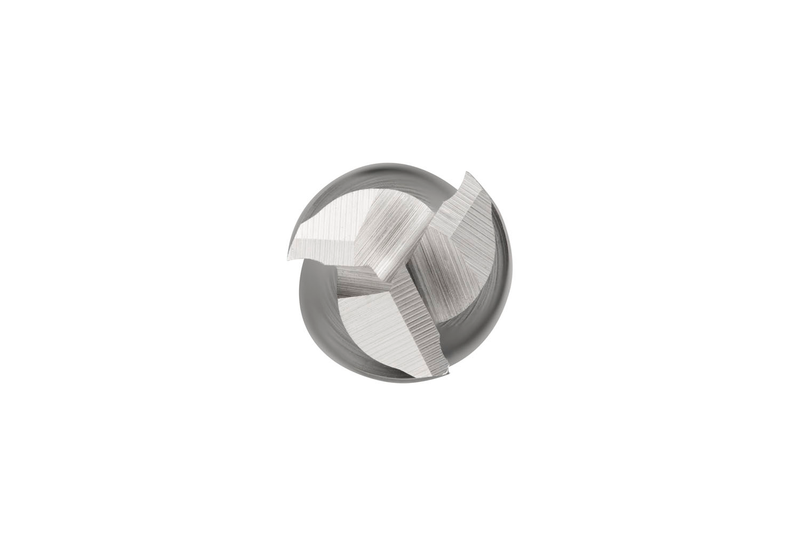

Fraise-scie à rainurer extra courte avec 3 dents, diamètre 20mm, longueur de coupe 22mm, longueur totale 88mm et portée 37.5mm avec dégagement de collet, selon la norme DIN 327 D avec une queue Weldon 20mm, en HSS-E métallurgie des poudres avec finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30620.0
GradeLumineux
Product Number5984739
Product FamilyC306
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Usable Length — mm (LU)37.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number572696
EAN7320760572696
File Type Download
C30620.0 — Line Drawing PDF Download
