UGC DOR5984743
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$168.60 CAD - $168.60 CAD
$168.60 CAD
$168.60 CAD - $168.60 CAD
$168.60 CAD

Vendu en lots de : 1

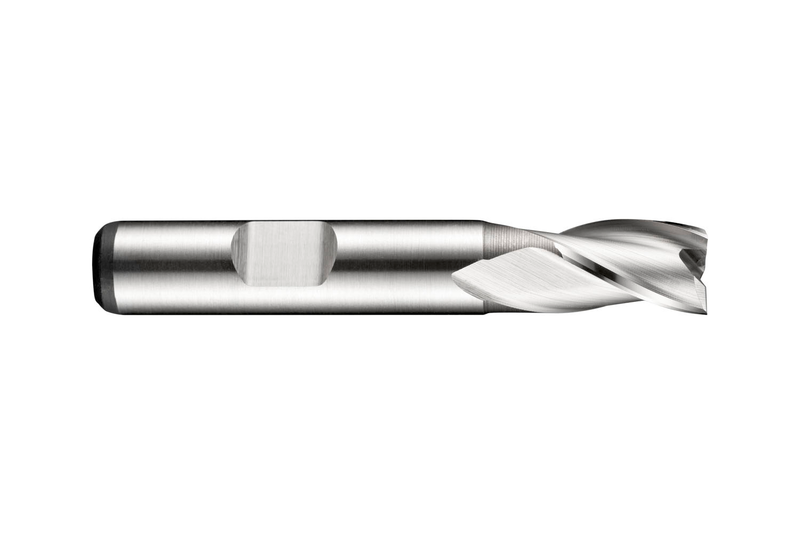

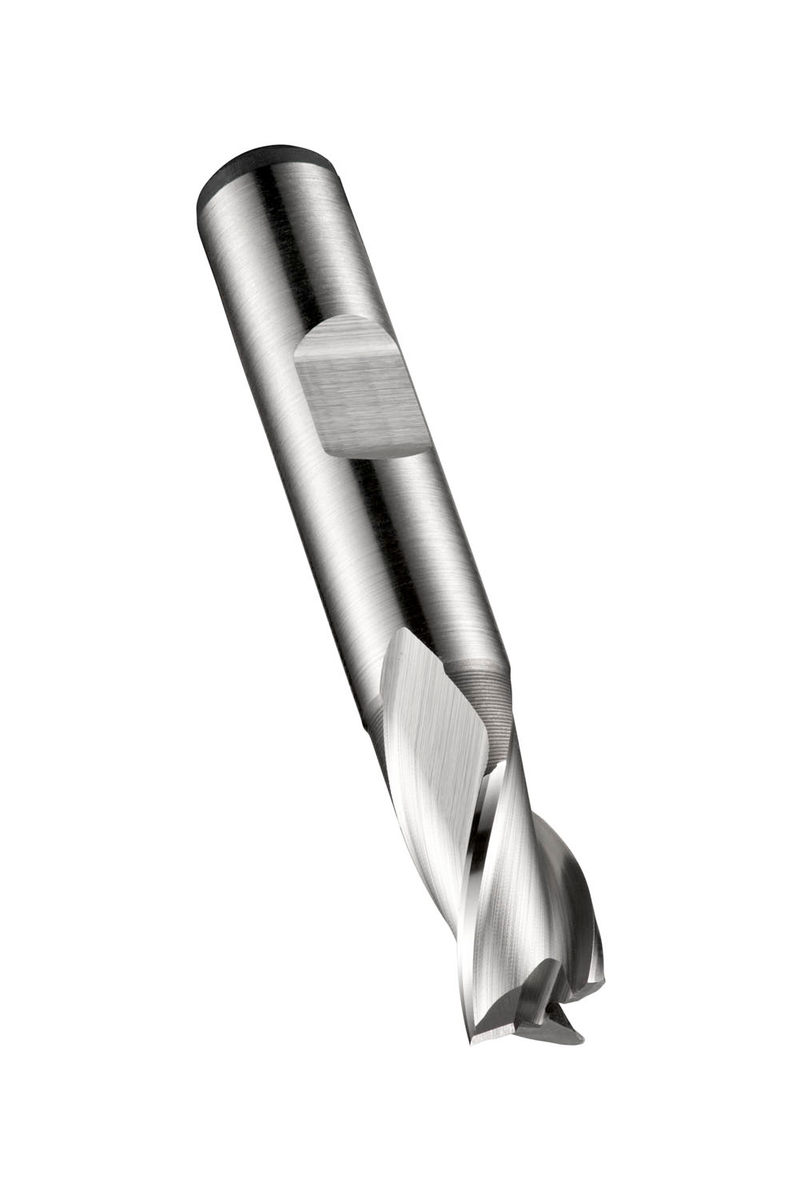

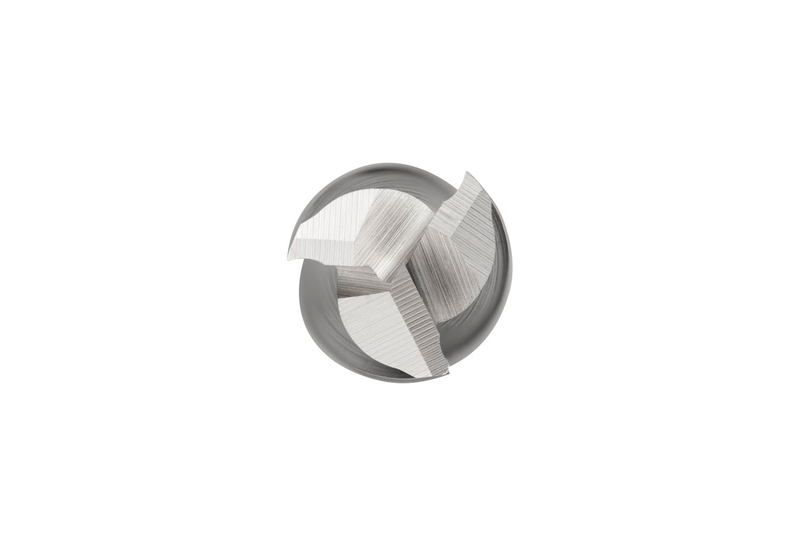

Fraise-scie extra courte à 3 dents, diamètre 22mm avec une longueur de coupe de 22mm, longueur totale de 88mm et portée de 37,5mm avec dégagement de col, selon la norme DIN 327 D avec une queue Weldon de 20mm, HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de coupe de 12° pour le surfaçage, le fraisage de rainures et le ramping dans les aciers de décolletage et au carbone et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30622.0
GradeLumineux
Product Number5984743
Product FamilyC306
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.8661"
Cutting Diameter — mm (DC)22.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Usable Length — mm (LU)37.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number572702
EAN7320760572702
File Type Download
C30622.0 — Line Drawing PDF Download
