UGC DOR5984756
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$219.00 CAD - $219.00 CAD
$219.00 CAD
$219.00 CAD - $219.00 CAD
$219.00 CAD

Vendu en lots de : 1

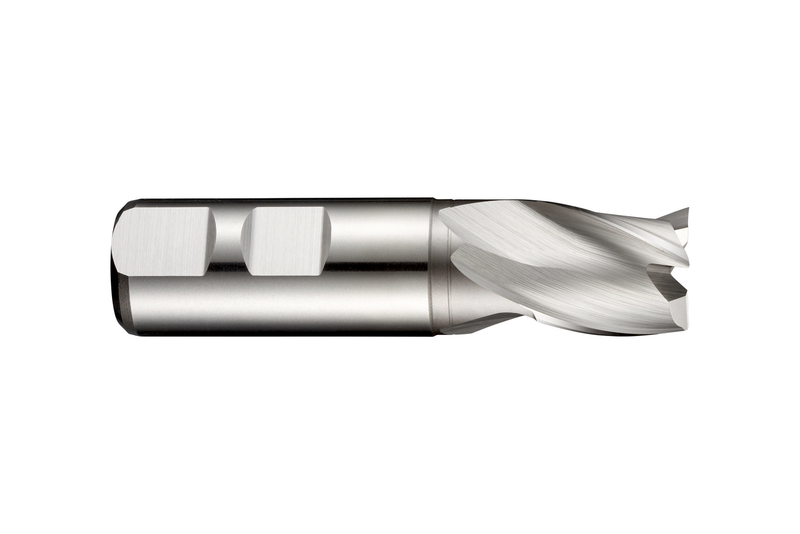

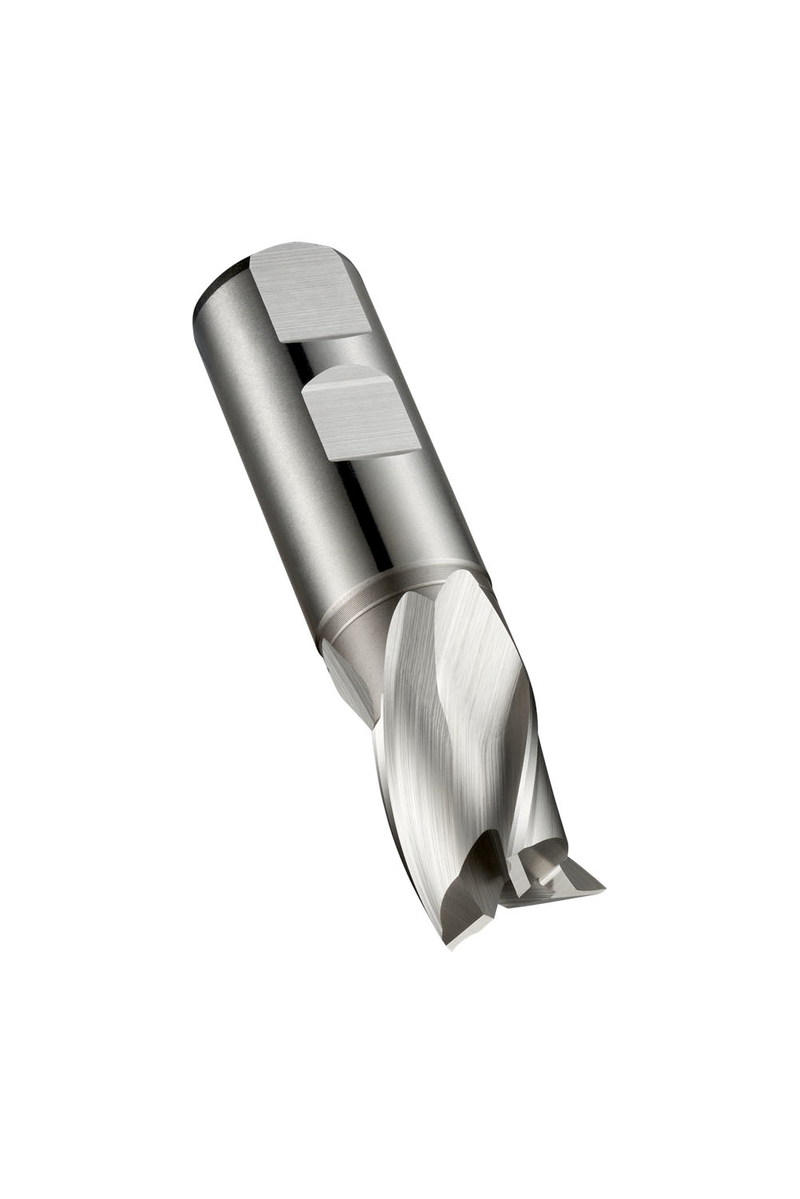

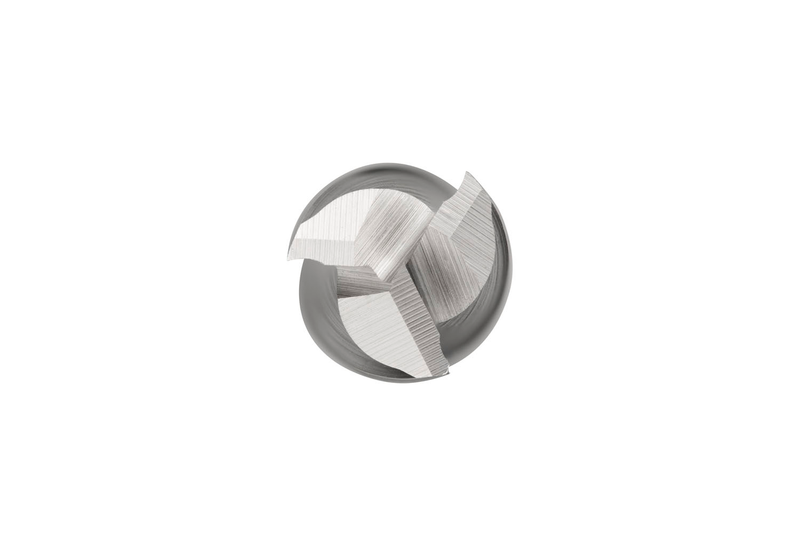

Fraise à rainurer à queue cylindrique, série extra courte, à 3 dents, diamètre 25mm avec longueur de coupe 26mm, longueur totale 102mm et portée 45.5mm avec dégagement de collet, conforme à la norme DIN 327 D avec une queue Weldon de 25mm, en HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de coupe à 12° pour le fraisage d'épaulements, le fraisage de rainures et le surfaçage en pente dans les aciers de décolletage et les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30625.0
GradeLumineux
Product Number5984756
Product FamilyC306
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Usable Length — mm (LU)45.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number572719
EAN7320760572719
File Type Download
C30625.0 — Line Drawing PDF Download
