UGC DOR5984765
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.26 CAD - $40.26 CAD
$40.26 CAD
$40.26 CAD - $40.26 CAD
$40.26 CAD

Vendu en lots de : 1

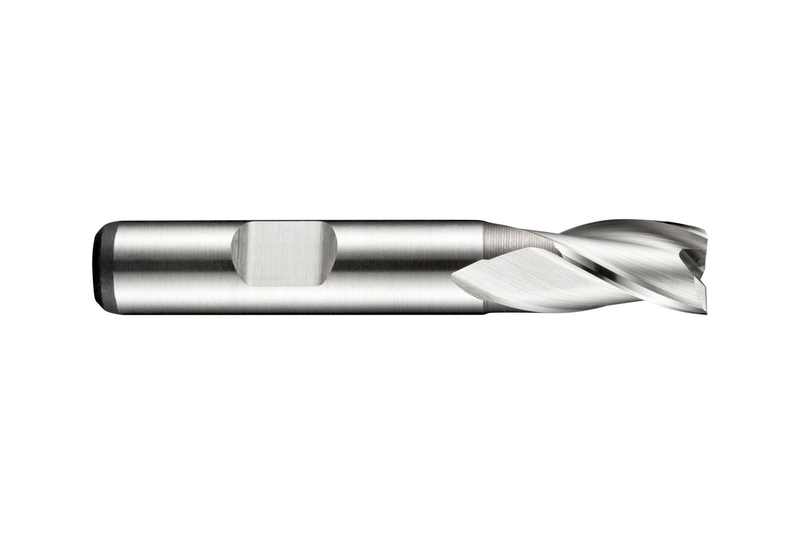

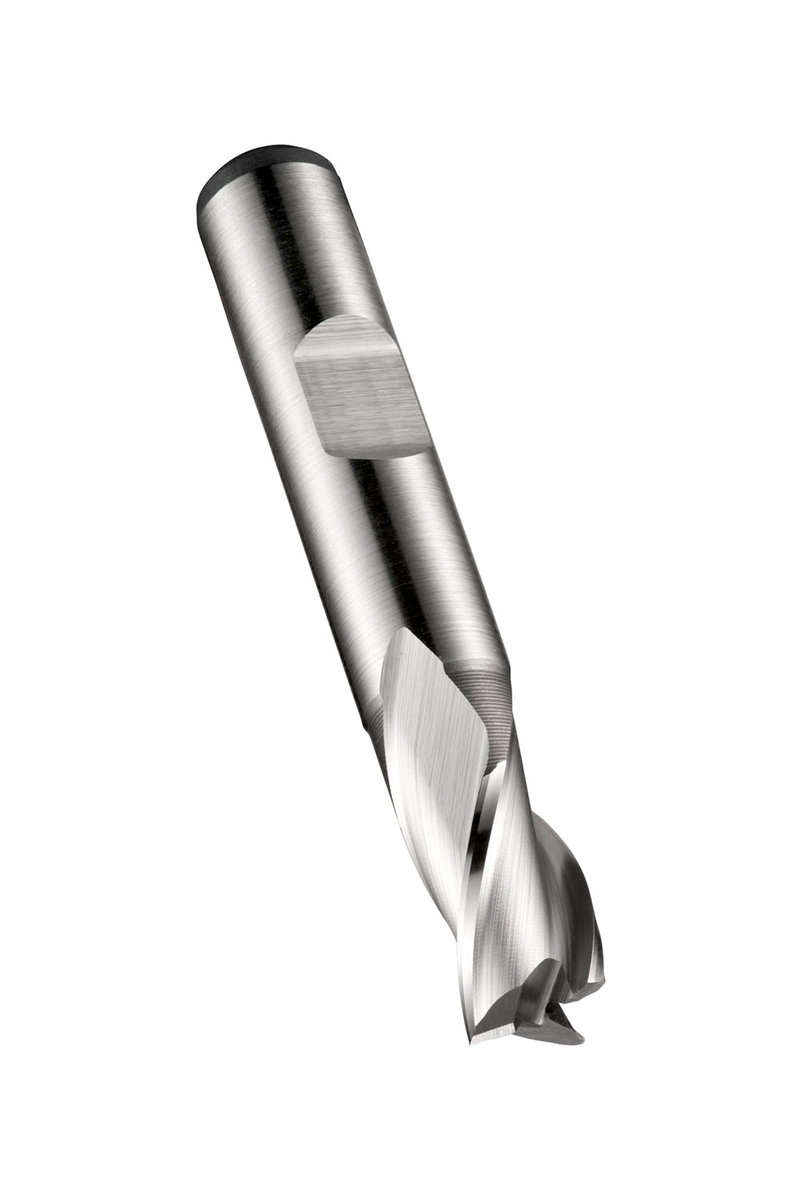

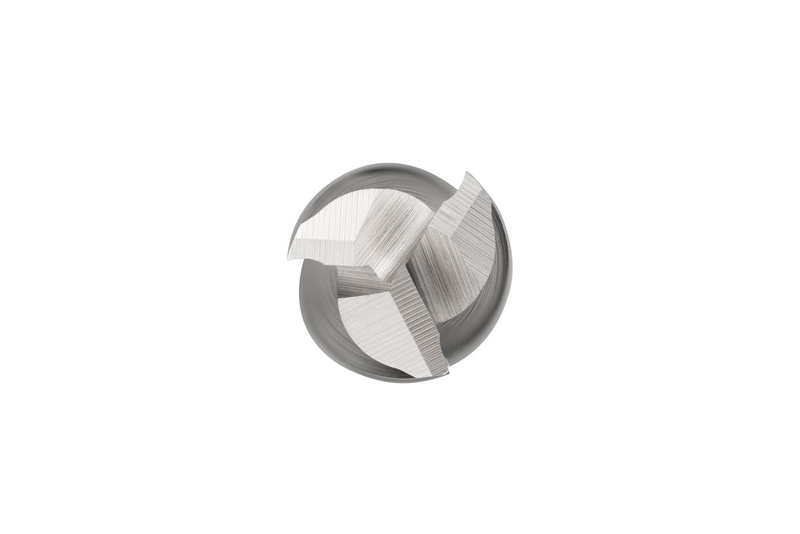

Fraise-scie à trois lèvres série extra courte, diamètre 3 mm, longueur de coupe 5 mm, longueur totale 49 mm, conforme à la norme DIN 327 D, queue Weldon de 6 mm, en HSS-E métallurgie des poudres, finition brillante, hélice 30° et angle de dépouille 12°, pour le fraisage d'épaulement, le fraisage de rainure et le fraisage en rampe dans l'acier au carbone et l'acier non allié, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3063.0
GradeLumineux
Product Number5984765
Product FamilyC306
Insert Geometry
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number572733
EAN7320760572733
File Type Download
C3063.0 — Line Drawing PDF Download
