C2477/8
C2477/8
C2477/8
C2477/8

C2477/8

UGC DOR5984767
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$192.40 CAD - $192.40 CAD
$192.40 CAD
$192.40 CAD - $192.40 CAD
$192.40 CAD

Vendu en lots de : 1

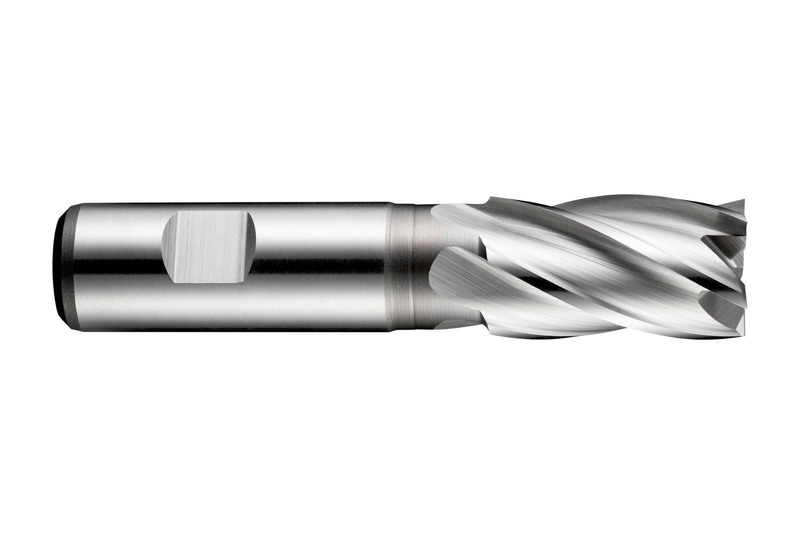

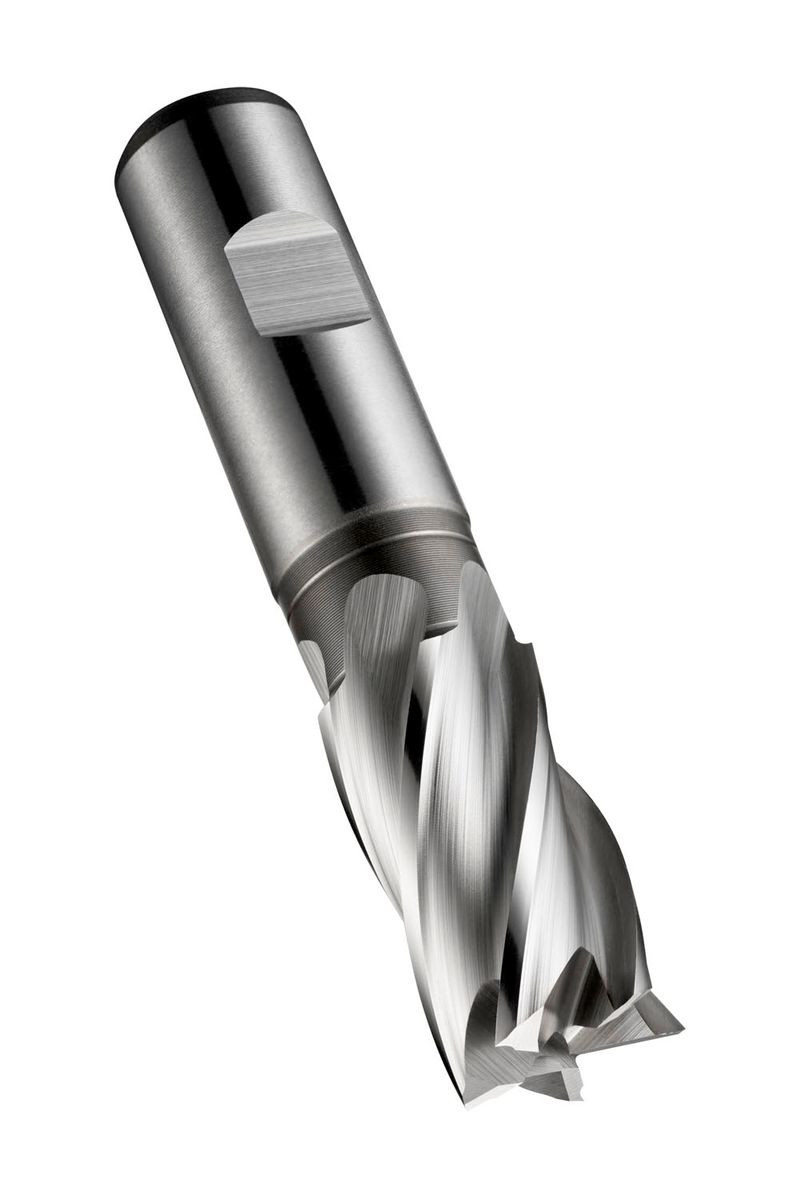

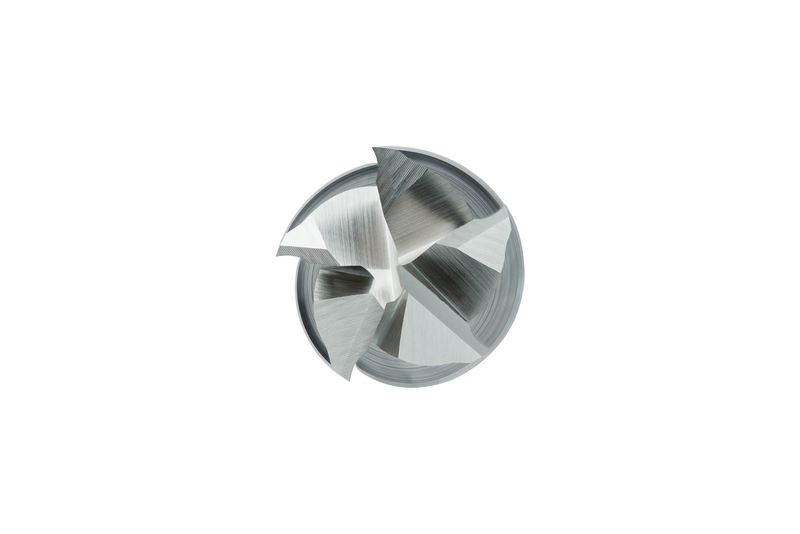

Fraise en bout courte 5 dents, diamètre 7/8" avec une longueur de coupe de 38mm, une longueur totale de 104mm et un dégagement de 53,5mm, selon la norme DIN 844 K avec une queue Weldon de 20mm, en HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier au carbone et l'acier doux, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2477/8
GradeLumineux
Product Number5984767
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.875"
Cutting Diameter — mm (DC)22.22 mm
Cutting Diameter — Fractional7/8
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)53.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)5
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number640234
EAN7320760640234
File Type Download
C2477/8 — Line Drawing PDF Download
