UGC DOR5984775
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.50 CAD - $43.50 CAD
$43.50 CAD
$43.50 CAD - $43.50 CAD
$43.50 CAD

Vendu en lots de : 1

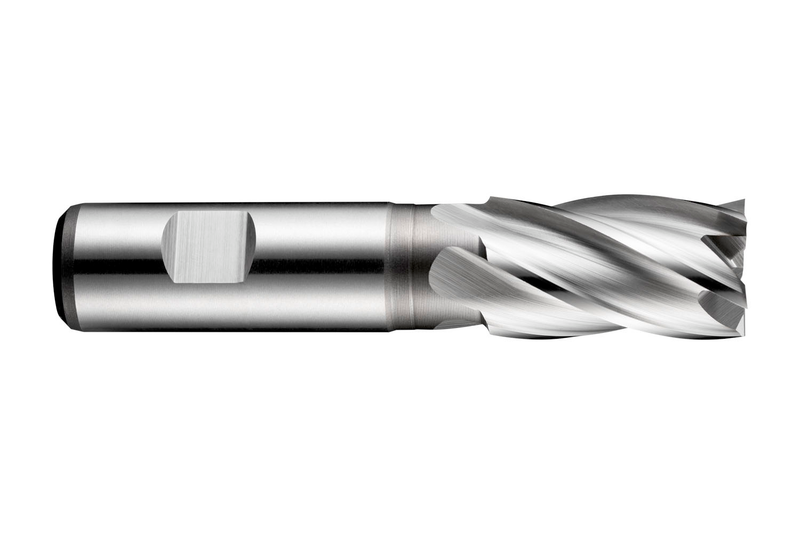

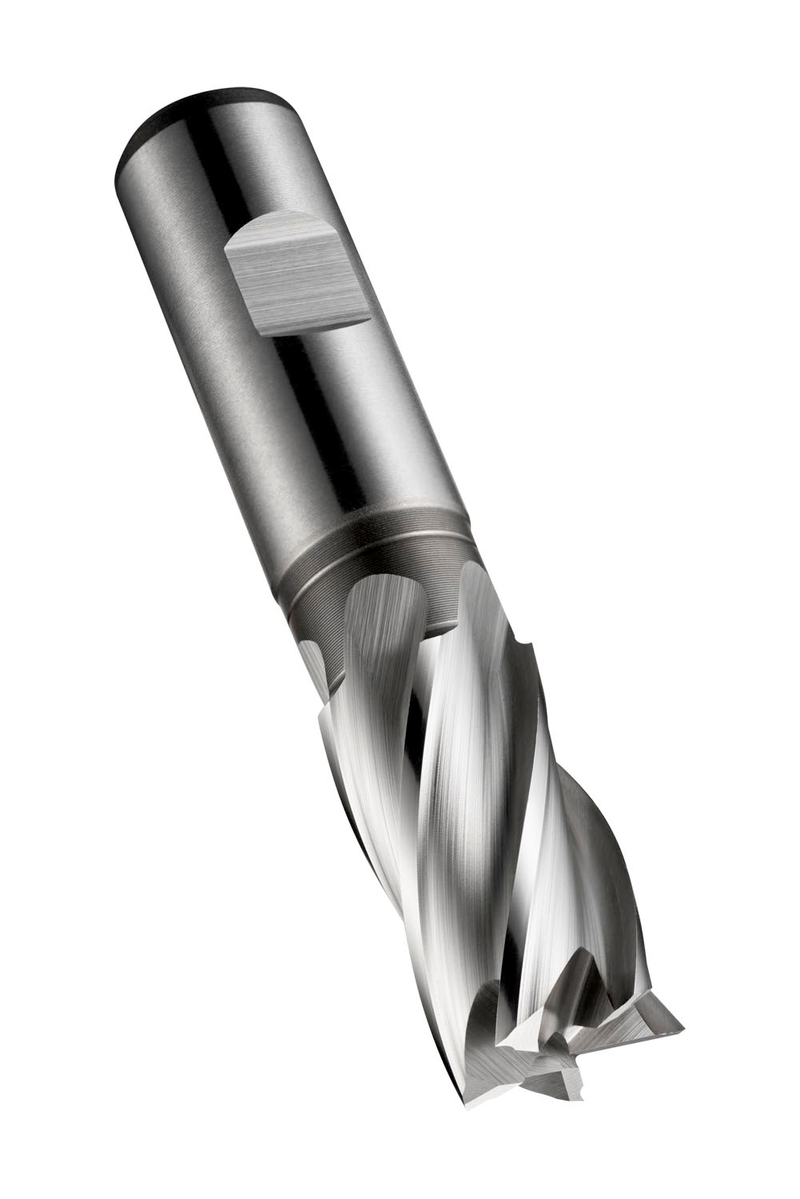

Fraise en bout série courte 4 dents, diamètre 8 mm, avec une longueur de coupe de 19 mm et une longueur totale de 69 mm, conforme à la norme DIN 844 K avec une queue Weldon de 10 mm, en HSS-E métallurgie des poudres, finition brillante, hélice à 30° et angle de dépouille de 12° pour le fraisage en plongée, le fraisage de rainures et le fraisage en rampe dans les aciers à usinabilité améliorée, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2478.0
GradeLumineux
Product Number5984775
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.7165"
Overall Length — mm (OAL)69.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354841
EAN7320760354841
File Type Download
C2478.0 — Line Drawing PDF Download
