UGC DOR5984815
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.79 CAD - $39.79 CAD
$39.79 CAD
$39.79 CAD - $39.79 CAD
$39.79 CAD

Vendu en lots de : 1

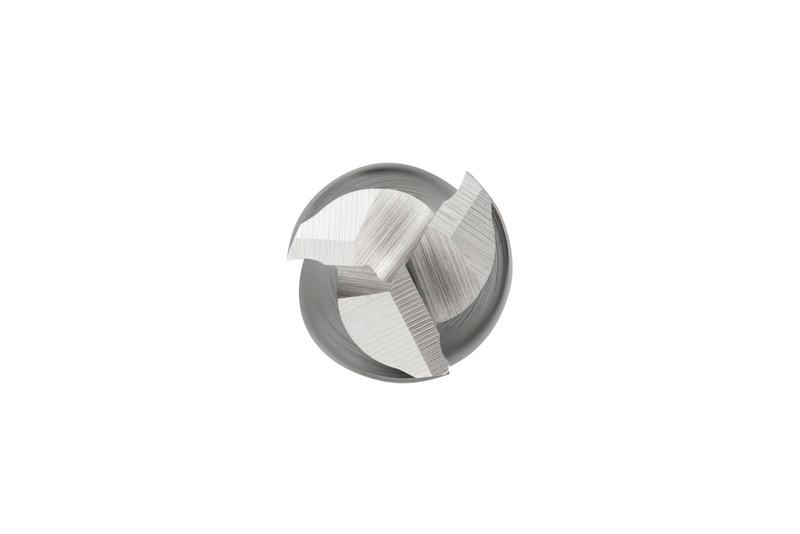

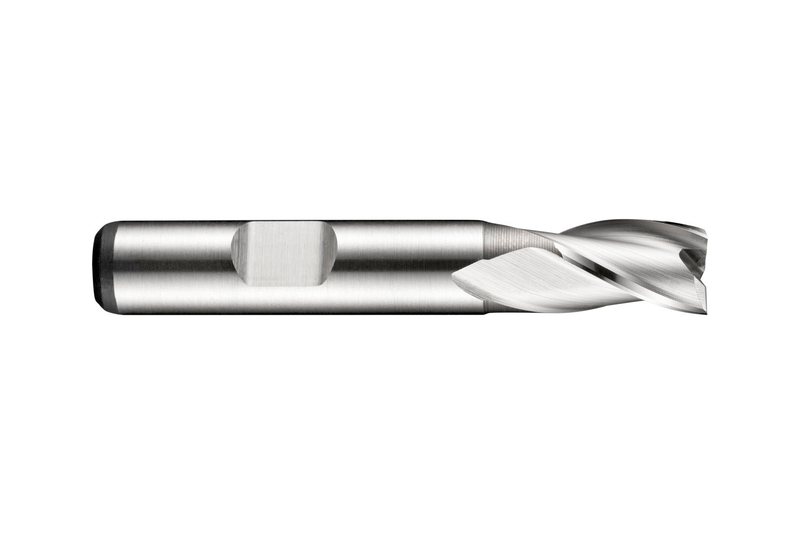

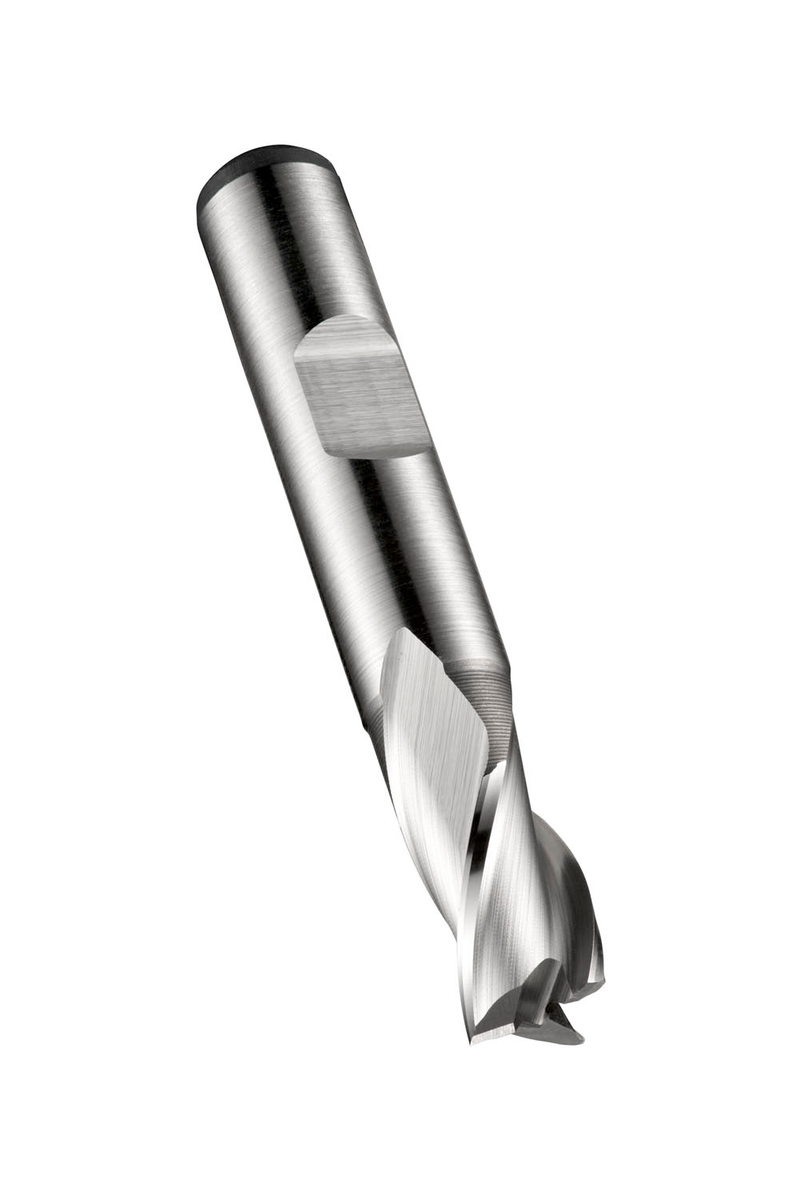

Fraise-scie à queue pour rainures, série extra-courte à 3 dents, diamètre 5 mm avec une longueur de coupe de 8 mm et une longueur totale de 52 mm, conforme à la norme DIN 327 D, avec queue Weldon de 6 mm, en HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en plongée dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3065.0
GradeLumineux
Product Number5984815
Product FamilyC306
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number572832
EAN7320760572832
File Type Download
C3065.0 — Line Drawing PDF Download
