UGC DOR5984830
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.26 CAD - $40.26 CAD
$40.26 CAD
$40.26 CAD - $40.26 CAD
$40.26 CAD

Vendu en lots de : 1

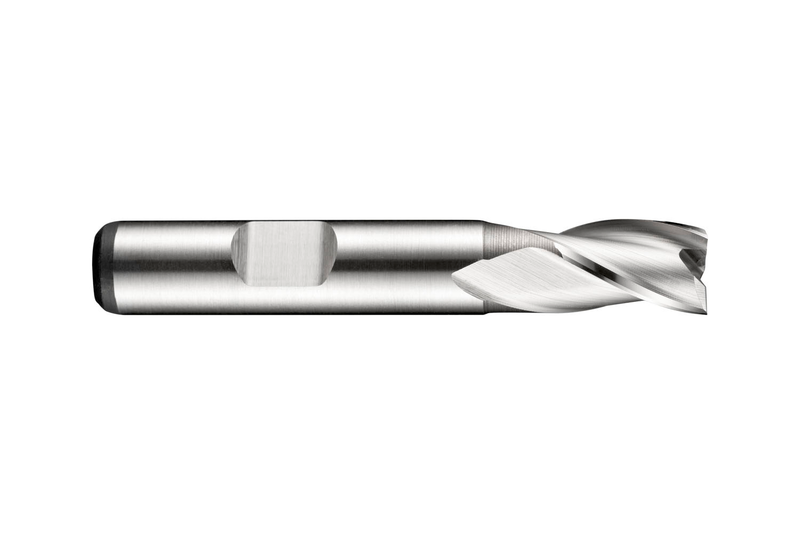

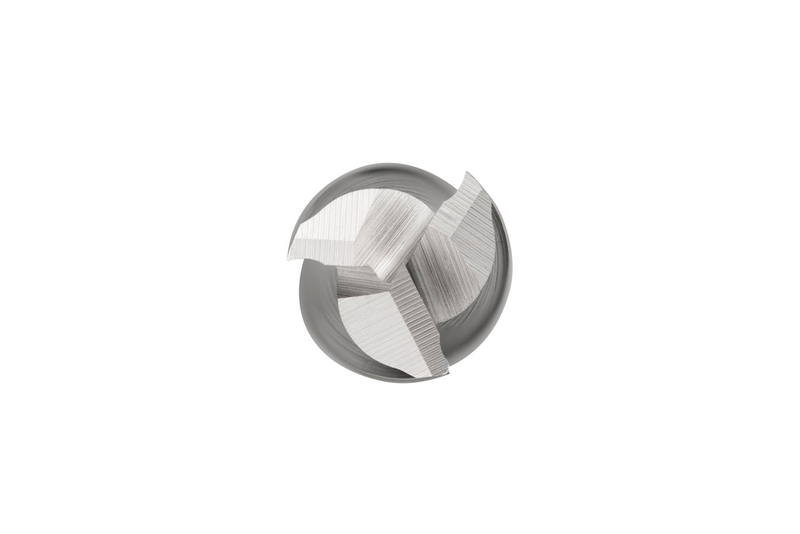

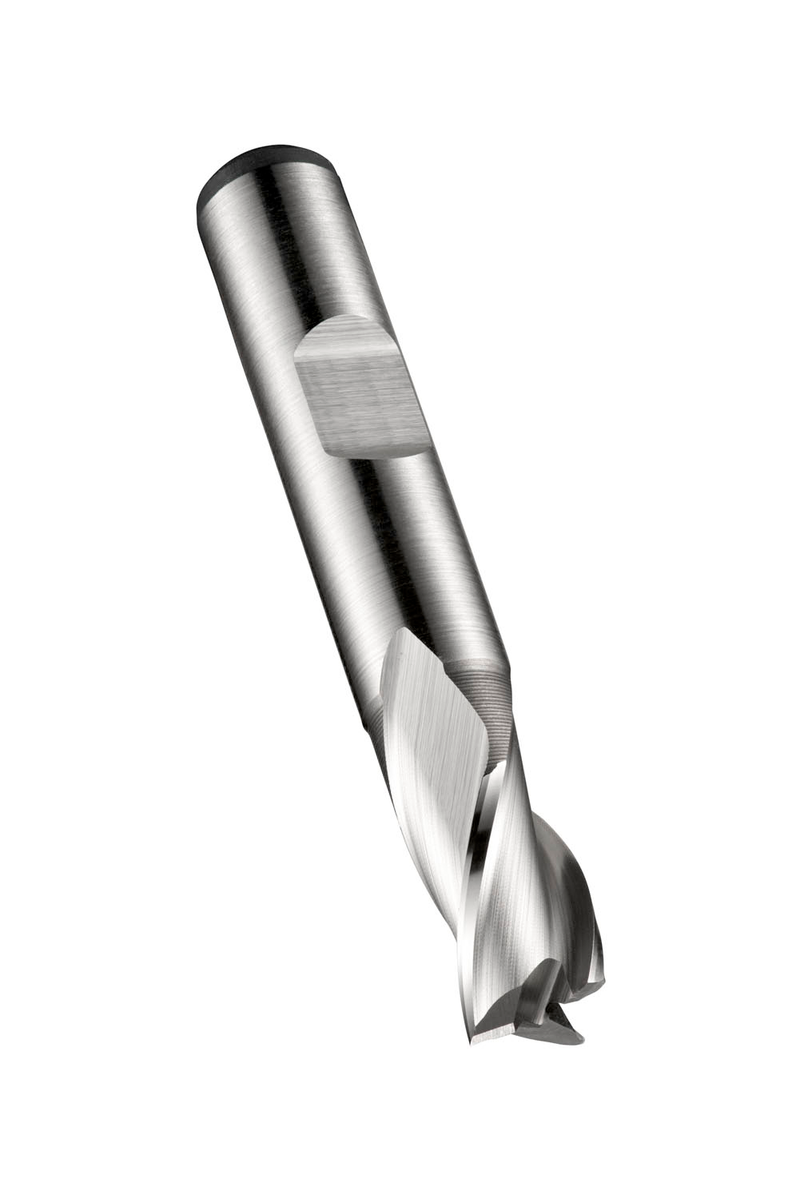

Fraise-scie extra-courte à 3 dents, diamètre 6 mm avec une longueur de coupe de 8 mm et une longueur totale de 52 mm, selon la norme DIN 327 D avec une queue Weldon de 6 mm, en acier rapide HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainure et le fraisage en rampe dans les aciers à usinage facile et les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3066.0
GradeLumineux
Product Number5984830
Product FamilyC306
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number572863
EAN7320760572863
File Type Download
C3066.0 — Line Drawing PDF Download
