UGC DOR5984838
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.51 CAD - $56.51 CAD
$56.51 CAD
$56.51 CAD - $56.51 CAD
$56.51 CAD

Vendu en lots de : 1

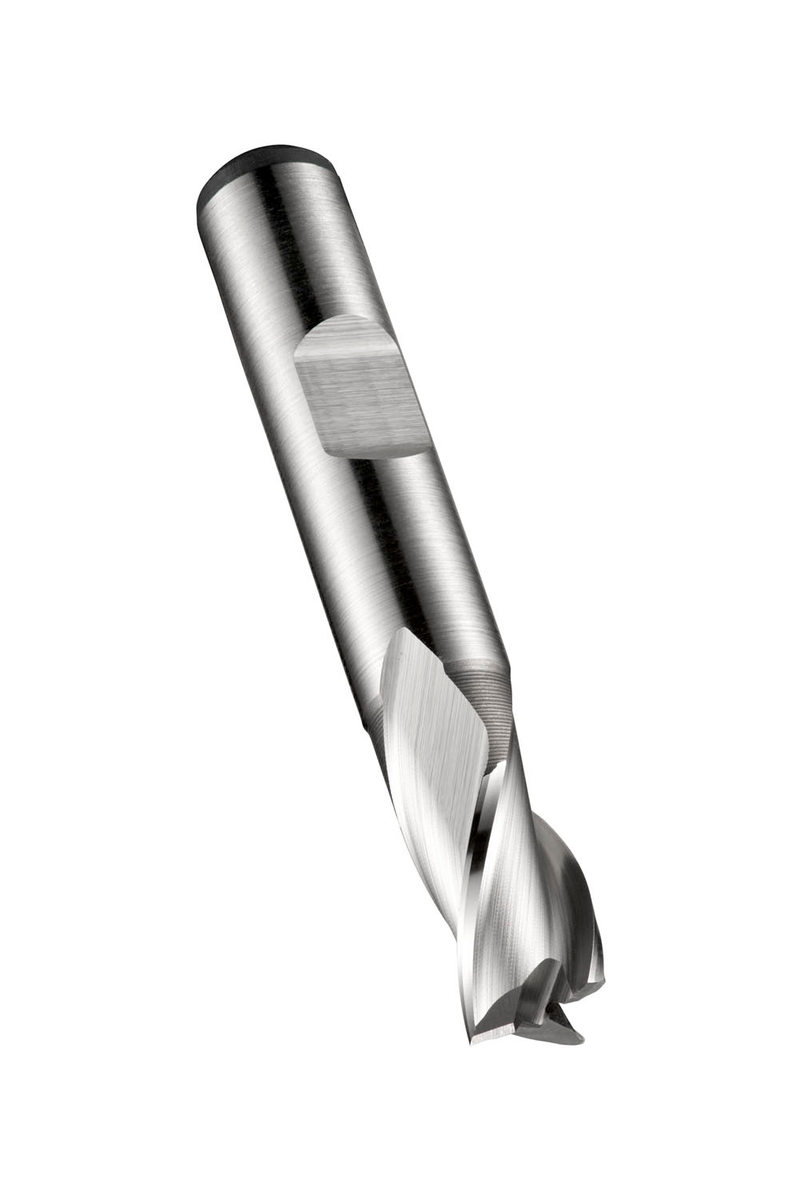

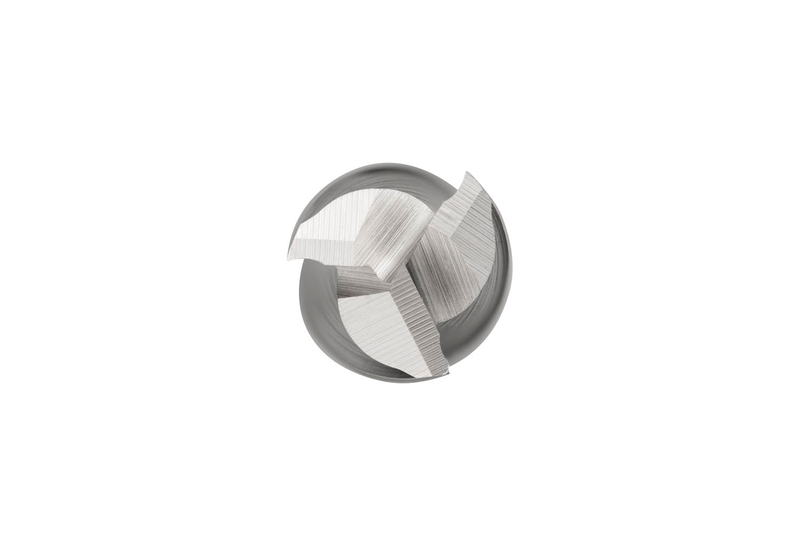

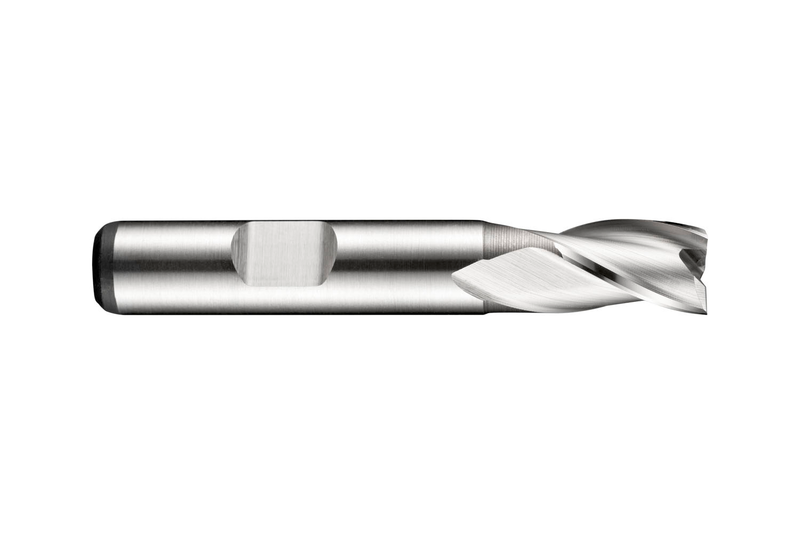

Fraise à rainurer à queue cylindrique 3 dents, série courte, diamètre 7 mm avec une longueur de coupe de 10 mm et une longueur totale de 60 mm, selon la norme DIN 327 D avec un attachement Weldon de 10 mm, HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dégagement de 12° pour le surfaçage en bout, le fraisage de rainures et le fraisage en plongée dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3067.0
GradeLumineux
Product Number5984838
Product FamilyC306
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number572887
EAN7320760572887
File Type Download
C3067.0 — Line Drawing PDF Download
