UGC DOR5984855
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.00 CAD - $51.00 CAD
$51.00 CAD
$51.00 CAD - $51.00 CAD
$51.00 CAD

Vendu en lots de : 1

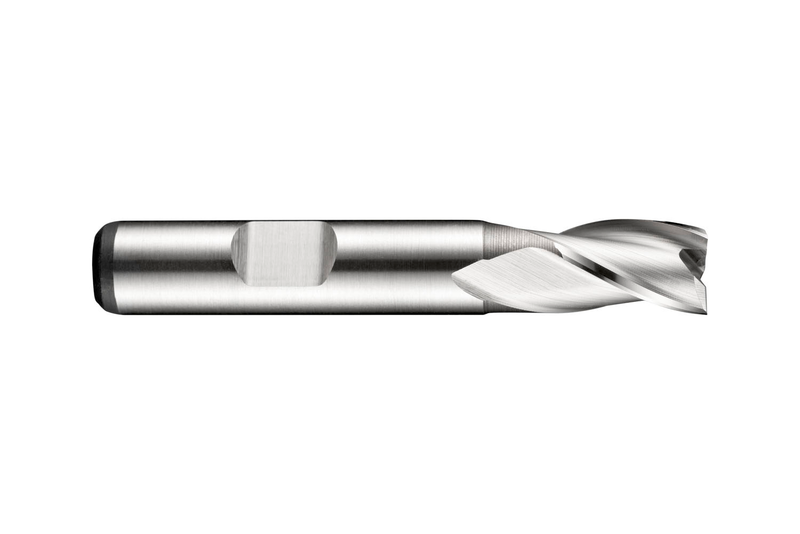

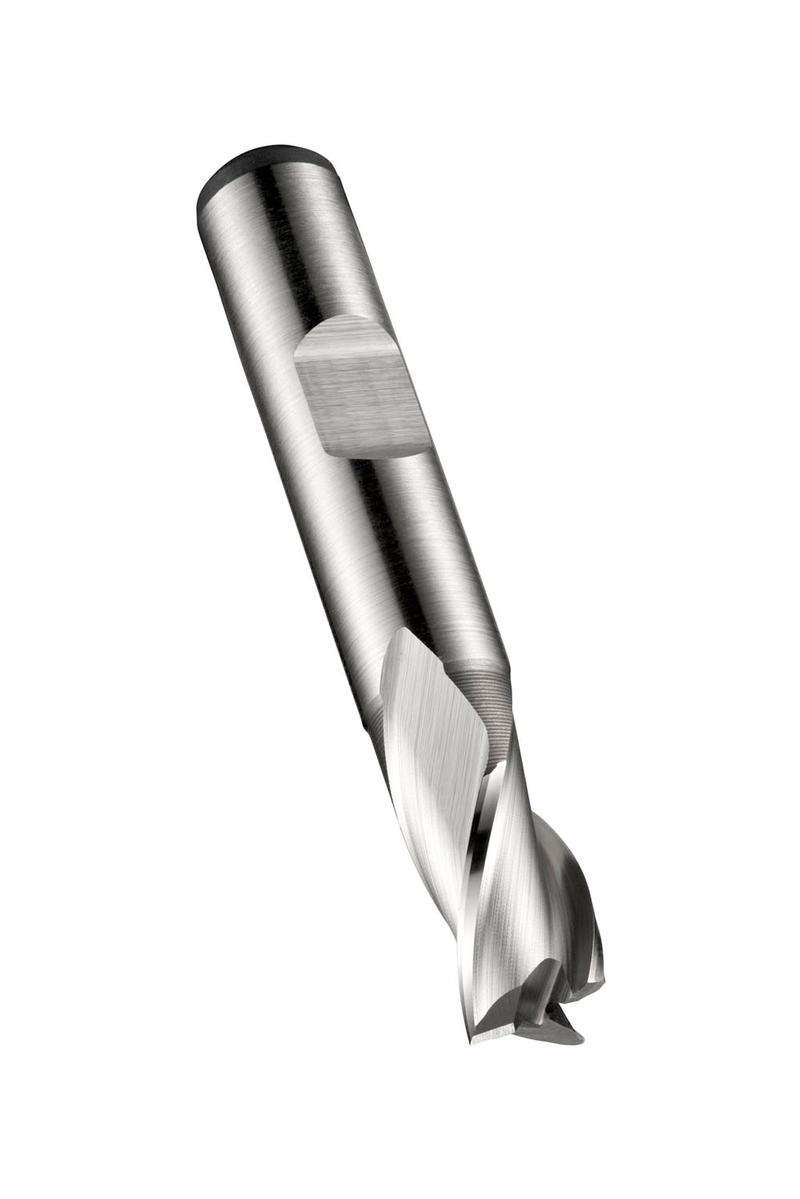

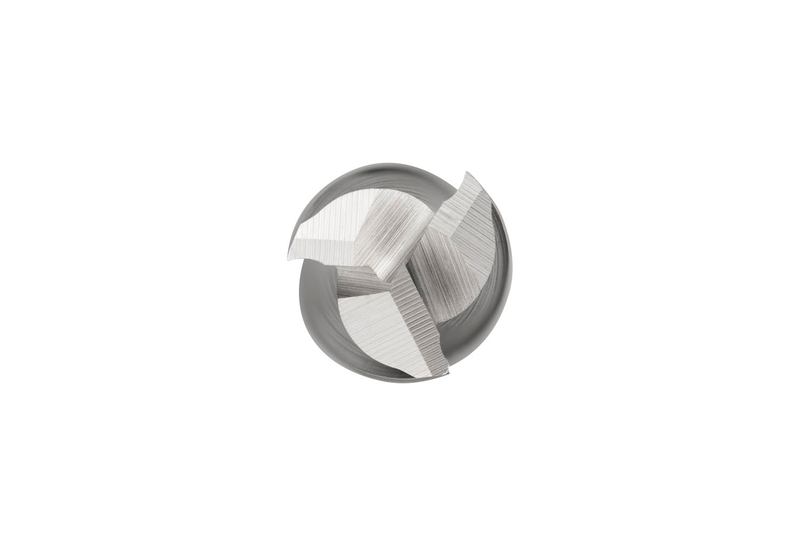

Fraise-scie extra courte à 3 dents, diamètre 8mm avec une longueur de coupe de 11mm et une longueur totale de 61mm, selon la norme DIN 327 D avec une queue Weldon de 10mm, en HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de coupe de 12° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3068.0
GradeLumineux
Product Number5984855
Product FamilyC306
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.4016"
Overall Length — mm (OAL)61.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number572917
EAN7320760572917
File Type Download
C3068.0 — Line Drawing PDF Download
