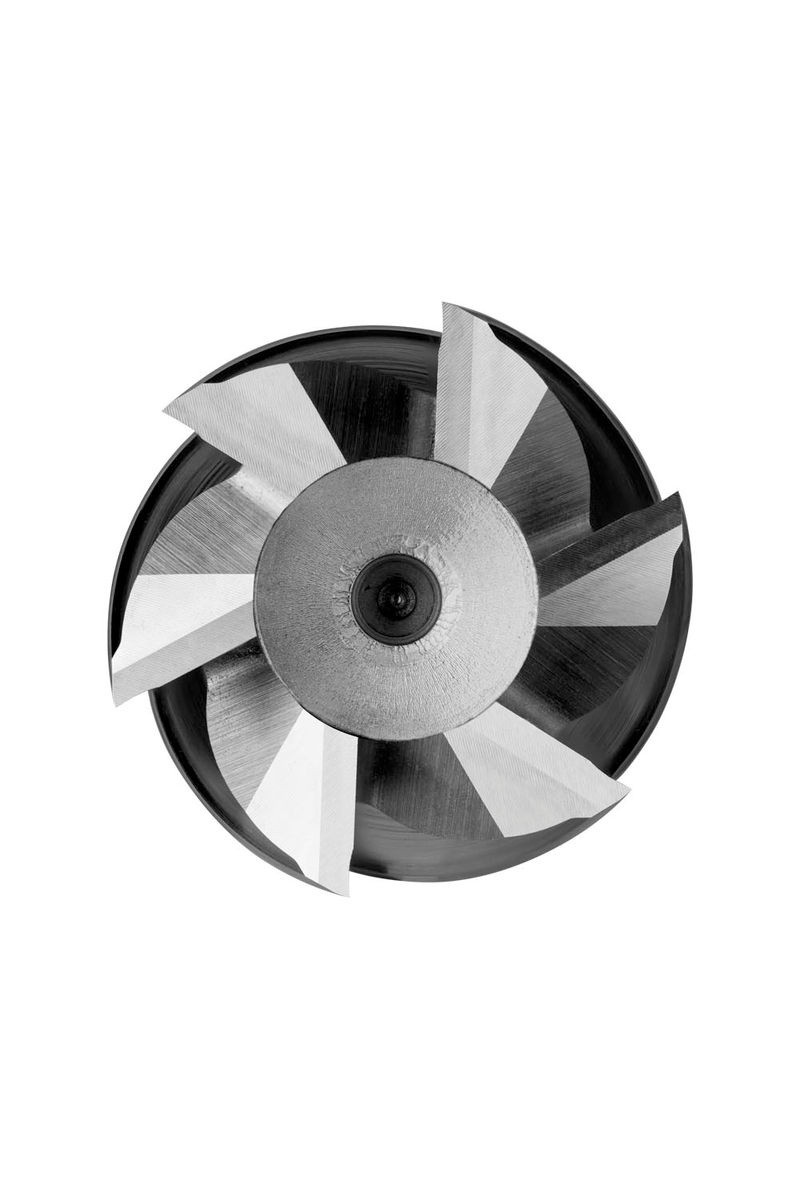

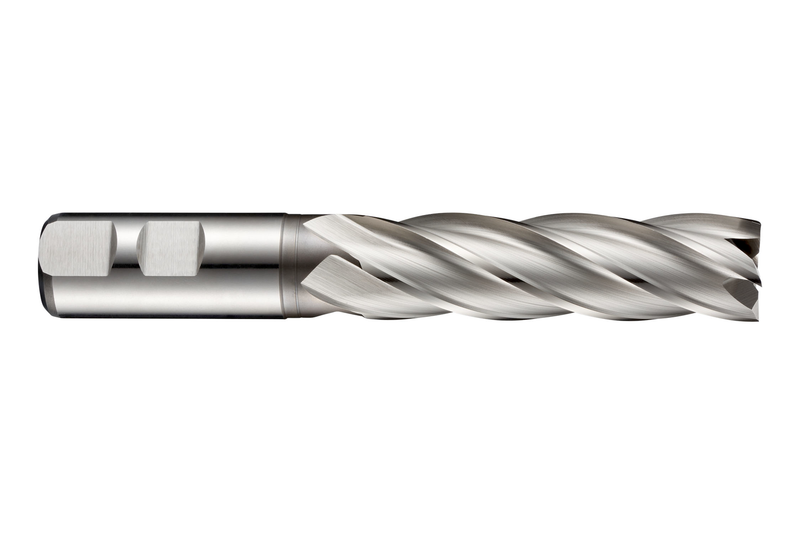

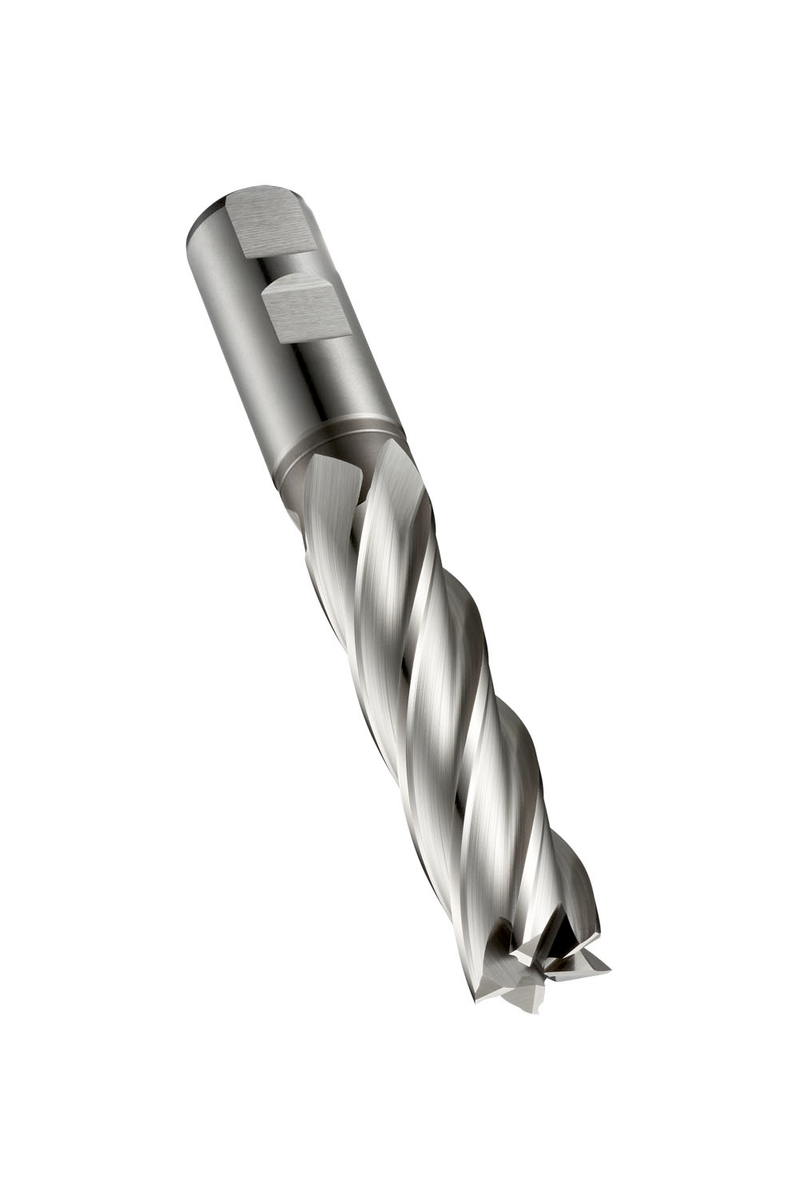

Fraise en bout série longue à 6 dents, diamètre 32 mm avec 106 mm de longueur de coupe, 186 mm de longueur totale et 125,5 mm de dégagement avec collet, selon la norme DIN 844 L avec une queue Weldon de 32 mm, HSS-E métallurgie des poudres finition brillante, hélice à 30° et angle de coupe à 12° pour le surfaçage et le rainurage dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C27332.0
GradeLumineux
Product Number5984857
Product FamilyC273
Insert Geometry
Depth of Cut Max — in (APMX)4.1732"
Depth of Cut Max — mm (APMX)106.0 mm
Dimensions
Cutting Diameter — in (DC)1.2598"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)7.3228"
Overall Length — mm (OAL)186.0 mm
Usable Length — mm (LU)125.5 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number355053
EAN7320760355053
File Type Download
C27332.0 — Line Drawing PDF Download
