UGC DOR5984859
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.60 CAD - $66.60 CAD
$66.60 CAD
$66.60 CAD - $66.60 CAD
$66.60 CAD

Vendu en lots de : 1

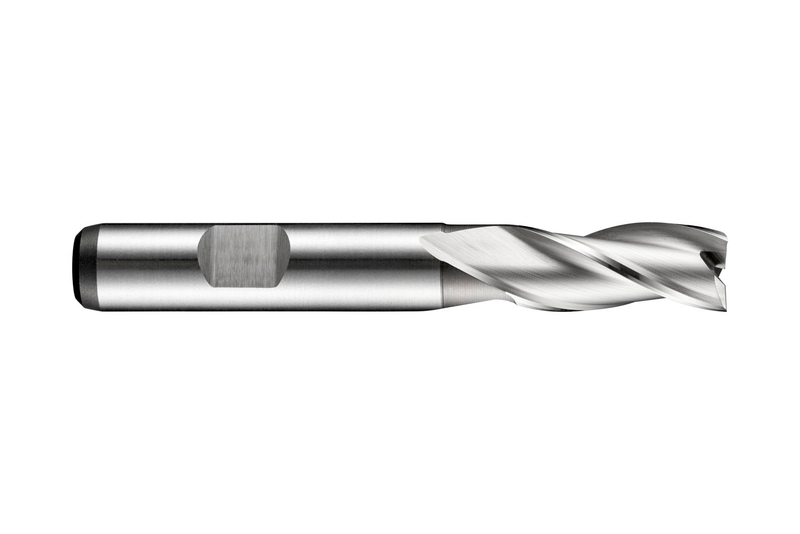

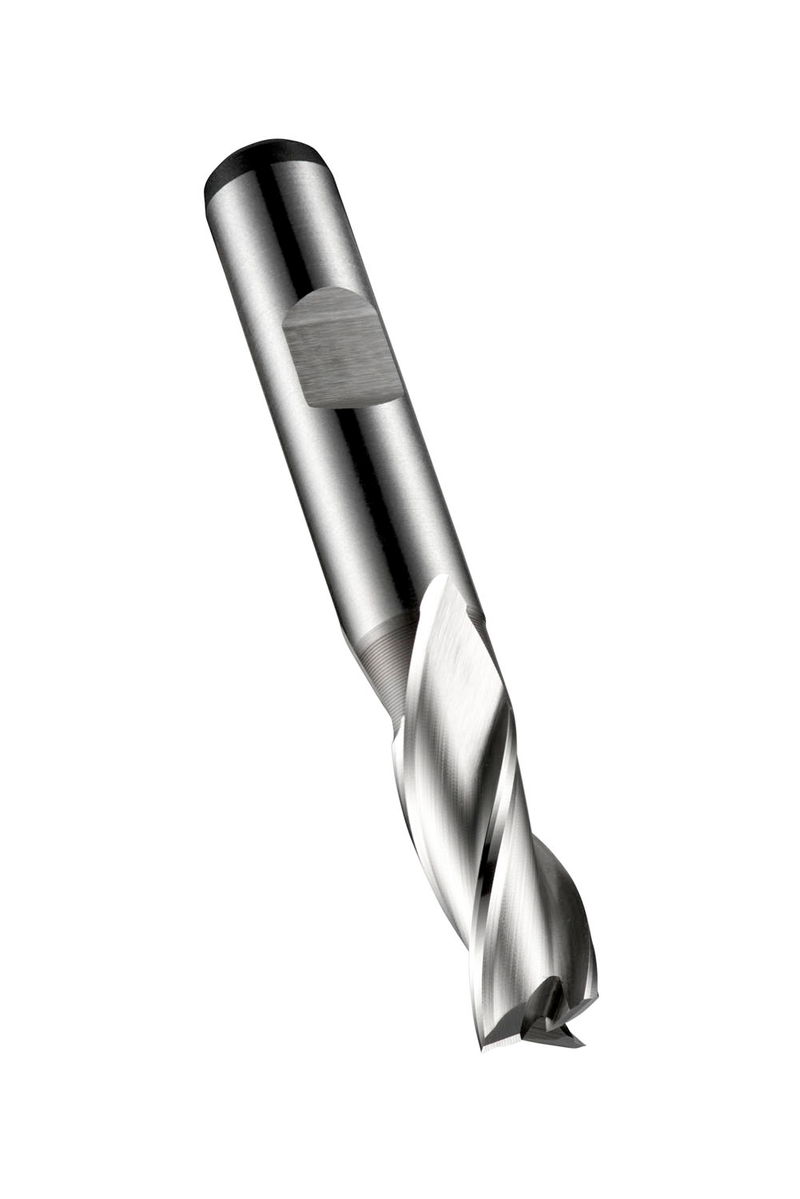

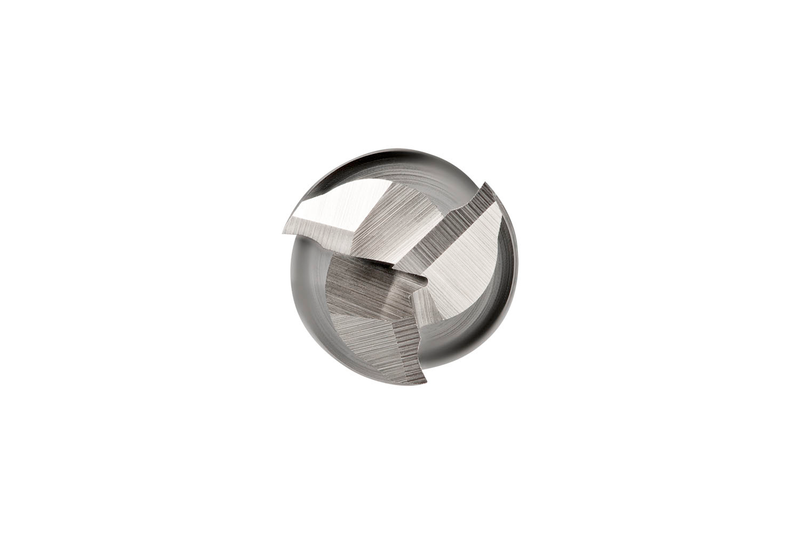

Fraise 3 dents à queue cylindrique, série courte, diamètre 6,5 mm, longueur de coupe 16 mm et longueur totale 66 mm, selon la norme DIN 844 K, avec queue Weldon 10 mm, HSS-E métallurgie des poudres avec finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en plongée dans les aciers de décolletage et les aciers au carbone non alliés, le cuivre ou les alliages de cuivre et les superalliages à base de Fe, Ni et Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3056.5
GradeLumineux
Product Number5984859
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.2559"
Cutting Diameter — mm (DC)6.5 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572474
EAN7320760572474
File Type Download
C3056.5 — Line Drawing PDF Download
