C4286.0
C4286.0
C4286.0
C4286.0

C4286.0

UGC DOR5984956
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.00 CAD - $75.00 CAD
$75.00 CAD
$75.00 CAD - $75.00 CAD
$75.00 CAD

Vendu en lots de : 1

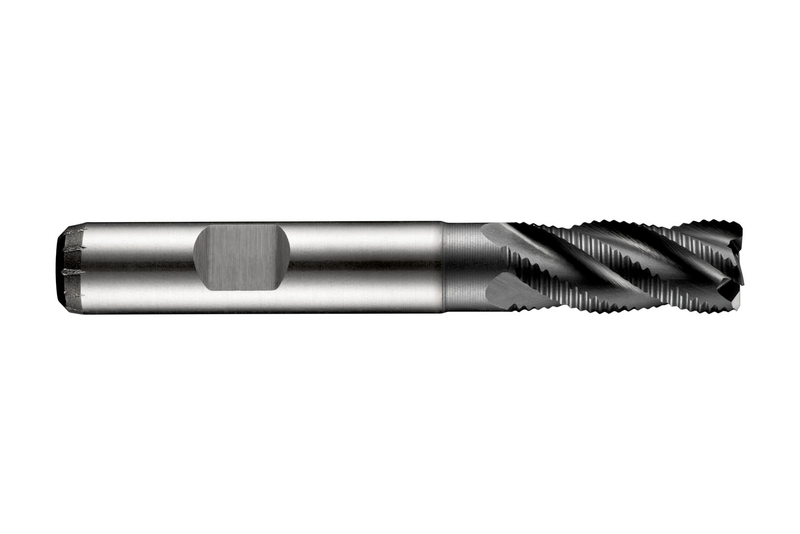

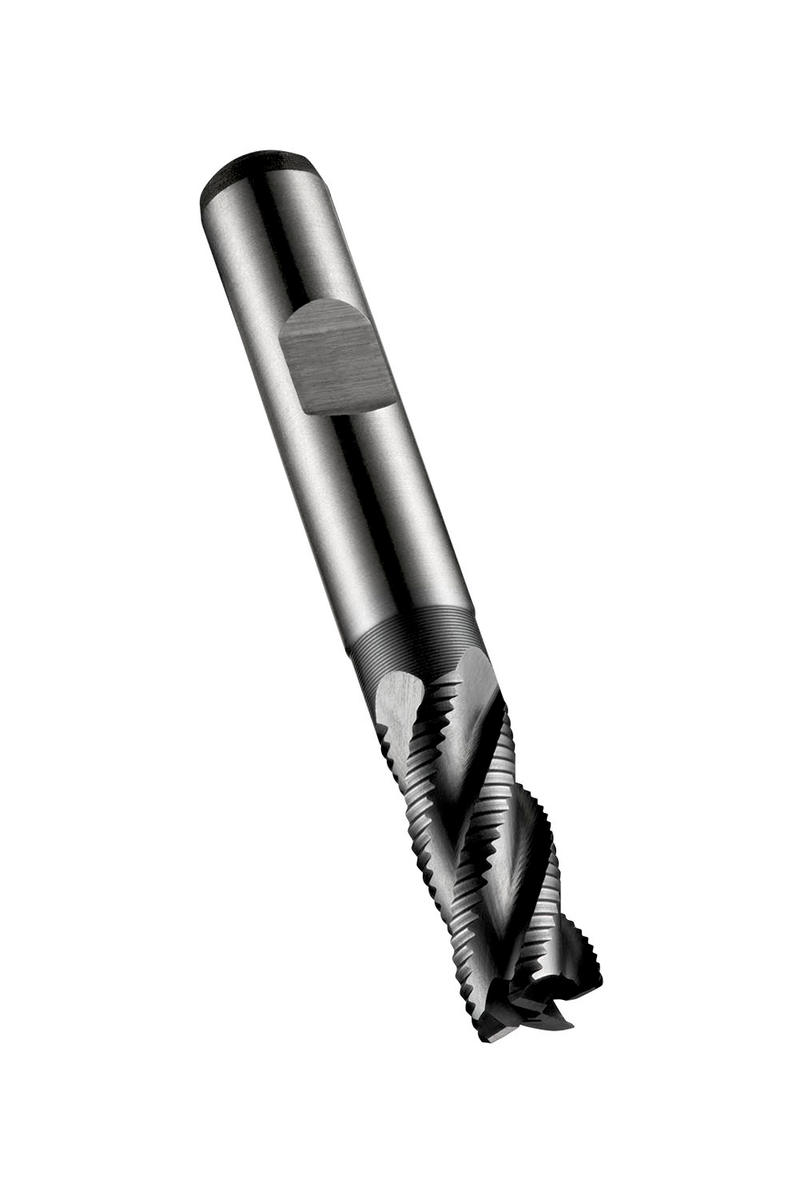

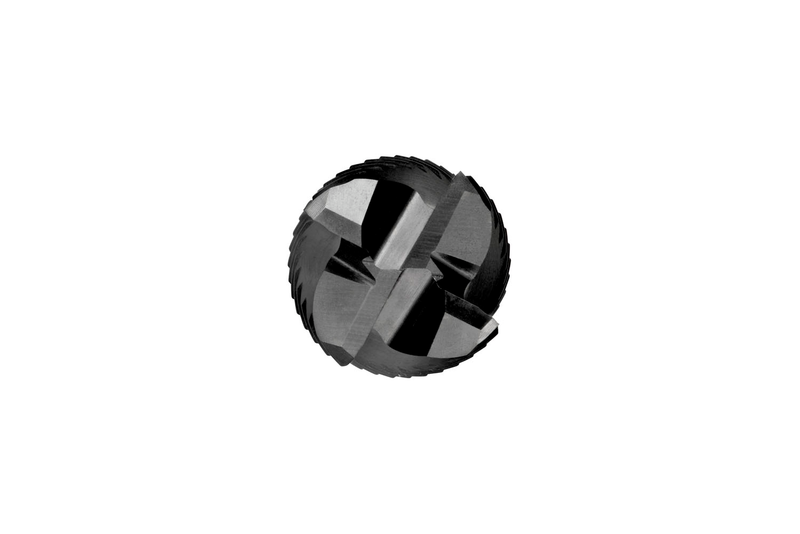

Fraise d'ébauche courte à 4 dents avec profil HRA asymétrique à pas fin, diamètre 6mm, longueur de coupe 13mm et longueur totale 57mm, selon la norme DIN 844 K avec queue Weldon 6mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 35° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et le surfaçage en acier allié et acier à outils, acier inoxydable, fonte, cuivre ou alliages de cuivre et alliages haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C4286.0
GradeALCRONA
Product Number5984956
Product FamilyC428
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)35.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number70116
EAN7320760070116
File Type Download

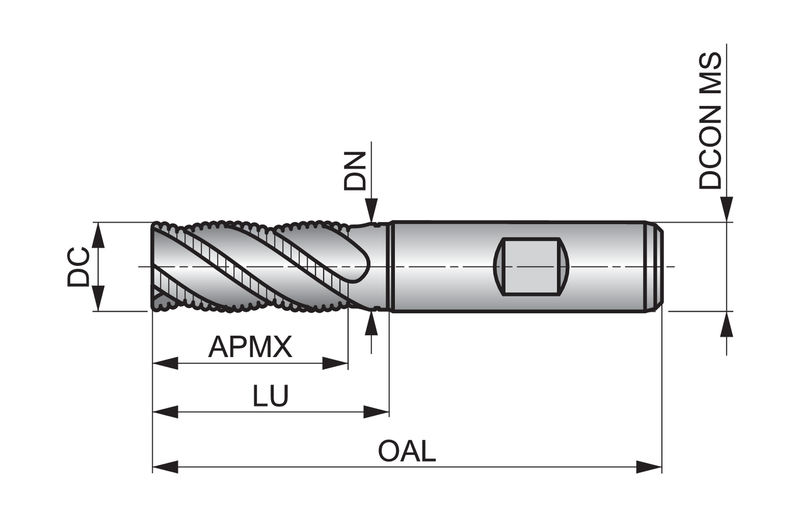

C4286.0 — Line Drawing PDF Download
