UGC DOR5984959
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$97.20 CAD - $97.20 CAD
$97.20 CAD
$97.20 CAD - $97.20 CAD
$97.20 CAD

Vendu en lots de : 1

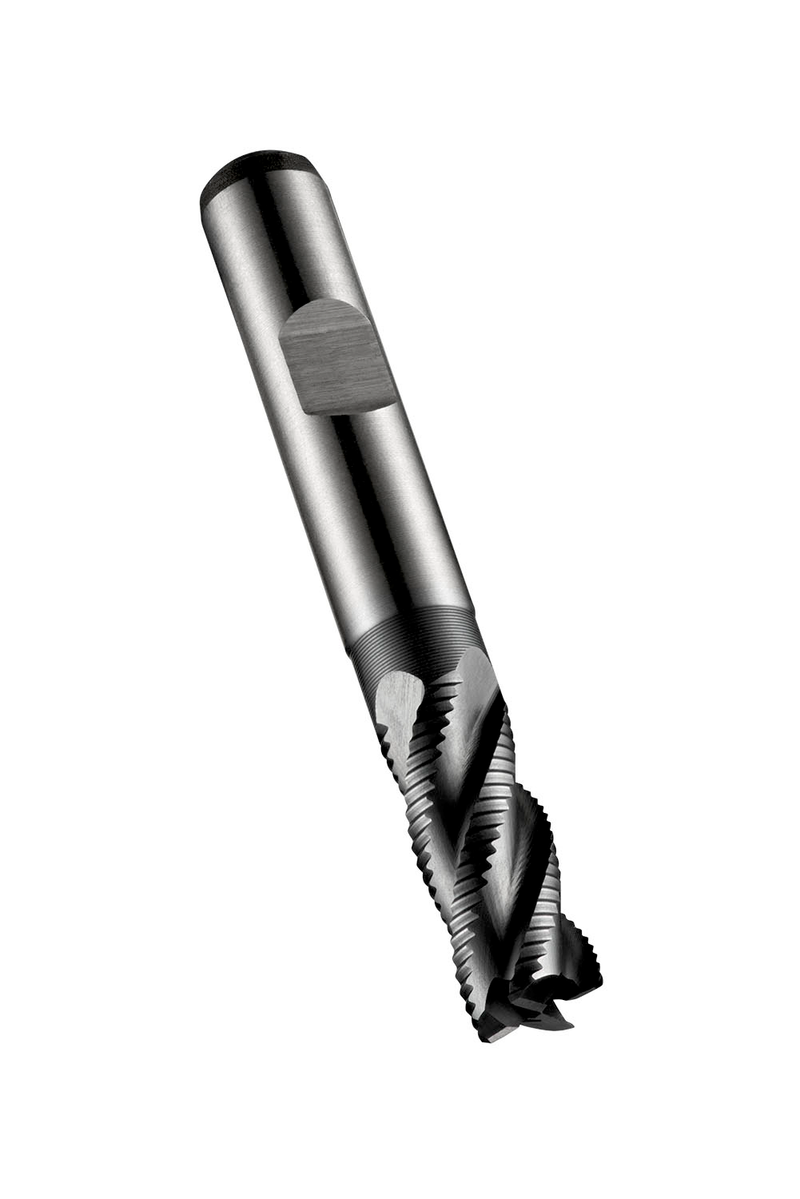

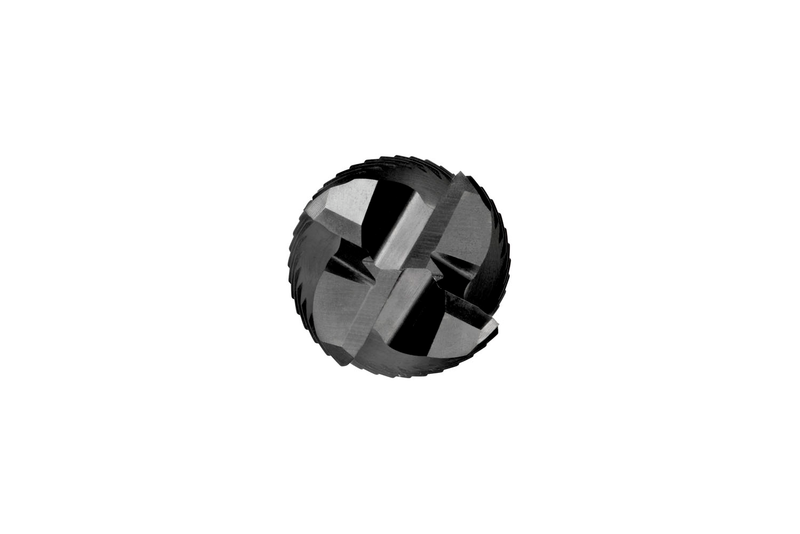

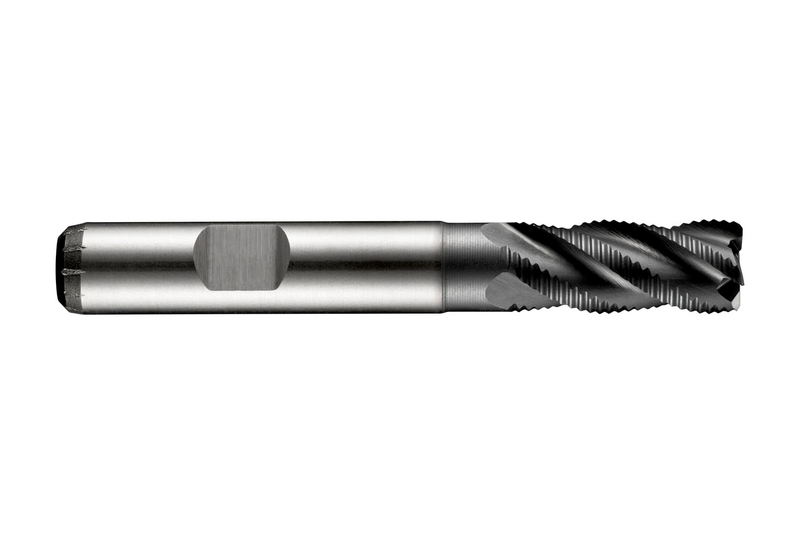

Fraise d'ébauche courte à 4 dents, profil HRA asymétrique à pas fin, diamètre 7 mm avec 16 mm de longueur de coupe et 66 mm de longueur totale, selon la norme DIN 844 K avec queue Weldon de 10 mm, en HSS-E PM avec revêtement Alcrona, hélice à 35° et angle de dépouille de 12° pour l'usinage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers alliés et les aciers à outils, les aciers inoxydables, la fonte, le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C4287.0
GradeALCRONA
Product Number5984959
Product FamilyC428
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm

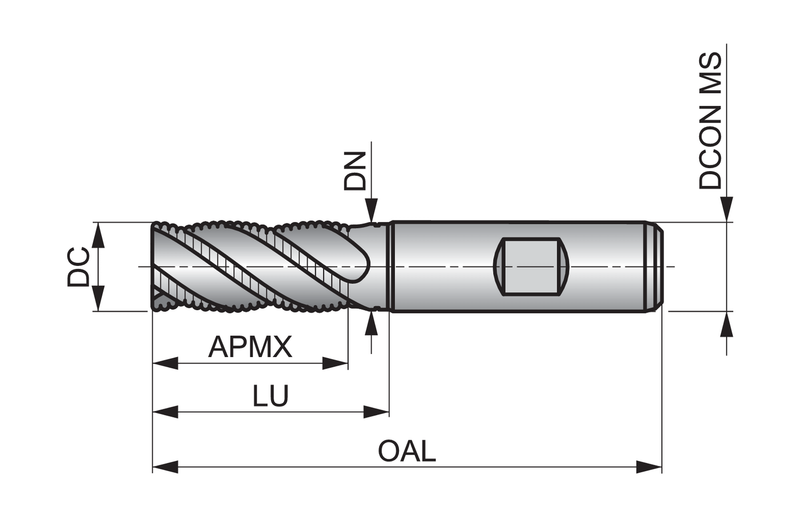

Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)35.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number346280
EAN7320760346280
File Type Download
C4287.0 — Line Drawing PDF Download
