UGC DOR5984960
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.00 CAD - $114.00 CAD
$114.00 CAD
$114.00 CAD - $114.00 CAD
$114.00 CAD

Vendu en lots de : 1

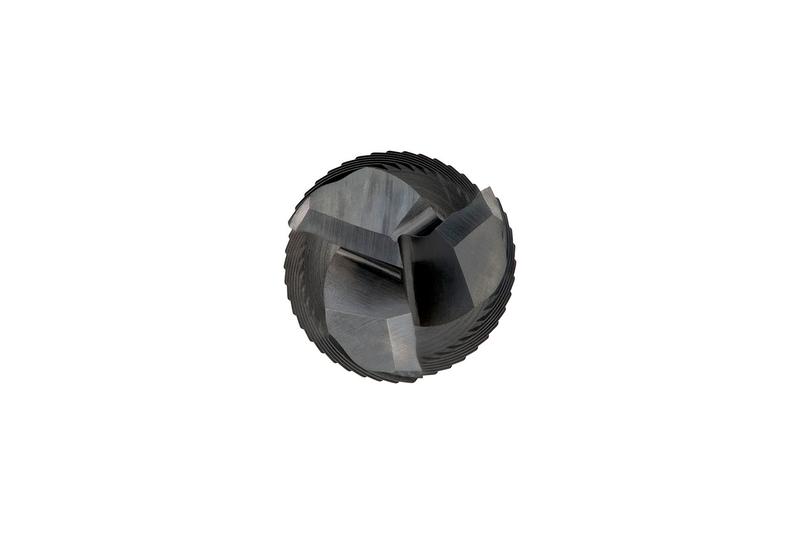

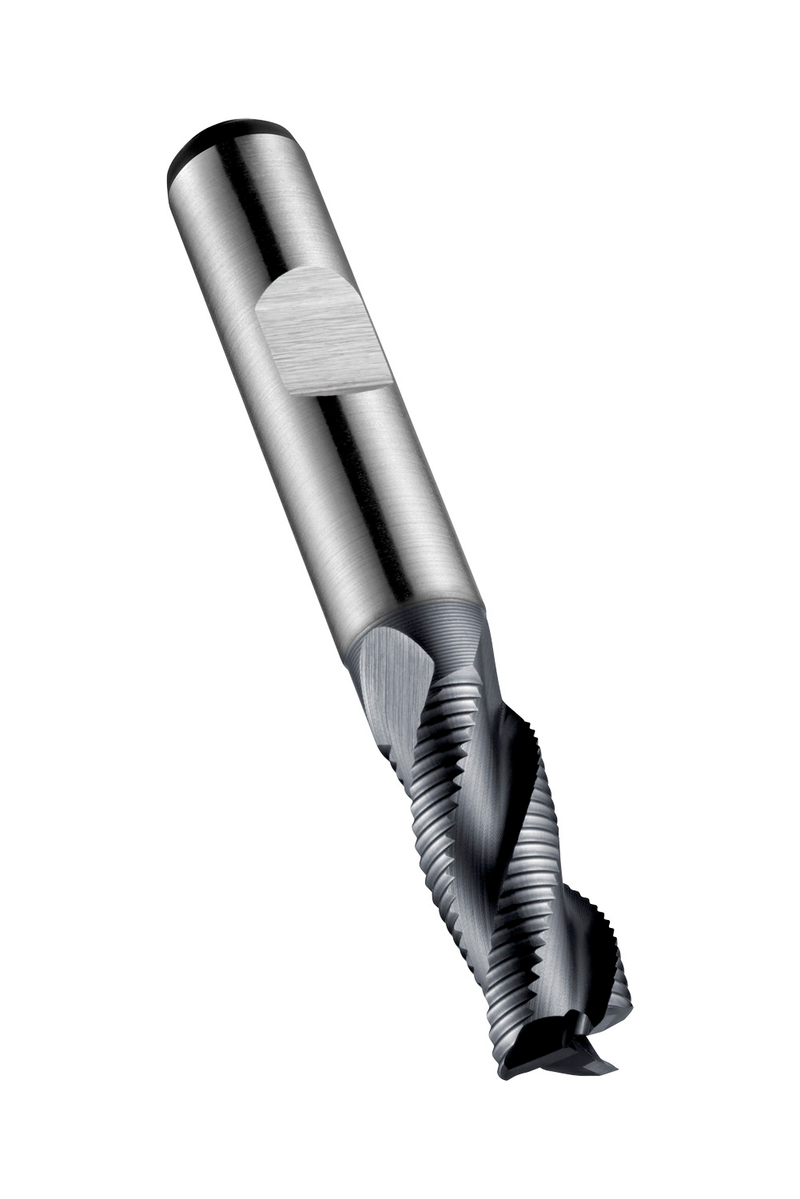

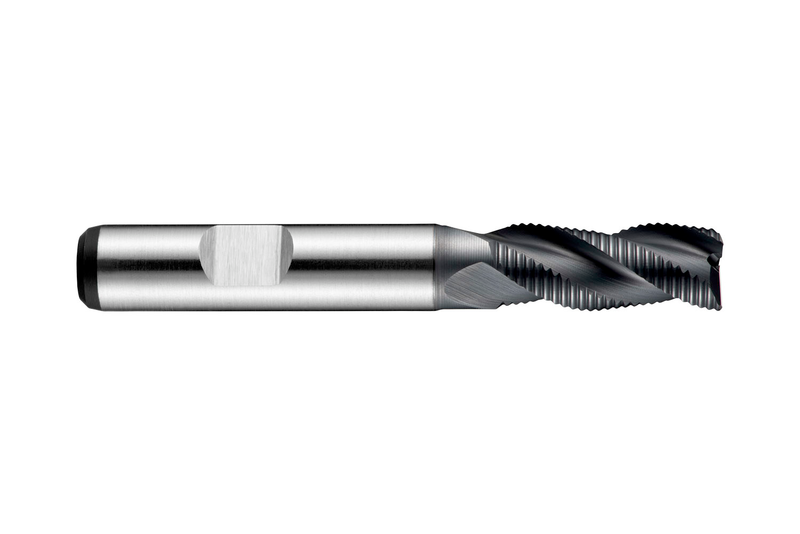

Fraise d'ébauche courte à 3 dents avec profil asymétrique HRA à pas fin, diamètre 9mm, longueur de coupe 19mm et longueur totale 69mm, selon la norme DIN 844 K, avec queue Weldon 10mm, en HSS-E PM avec revêtement Alcrona, hélice 35° et angle de dépouille 12° pour le fraisage en bout, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers alliés et aciers à outils, les aciers inoxydables, la fonte, le cuivre ou les alliages de cuivre et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C9229.0
GradeALCRONA
Product Number5984960
Product FamilyC922
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

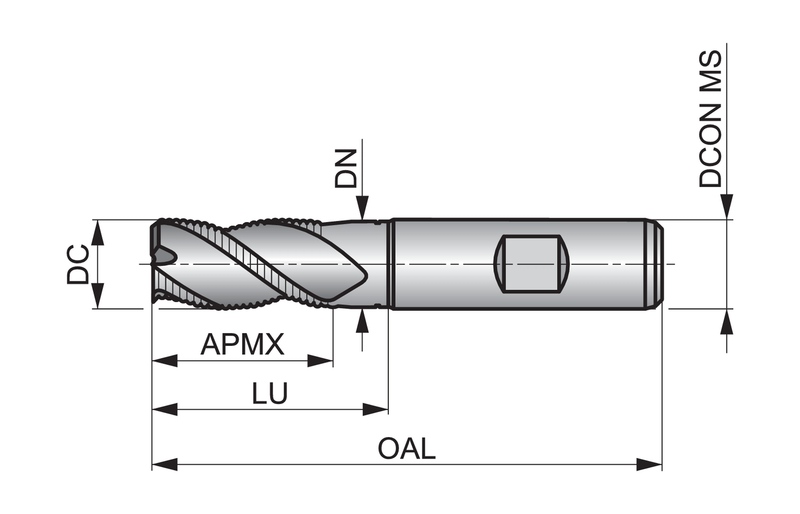

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.7165"
Overall Length — mm (OAL)69.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)35.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number76552
EAN7320760076552
File Type Download
C9229.0 — Line Drawing PDF Download
